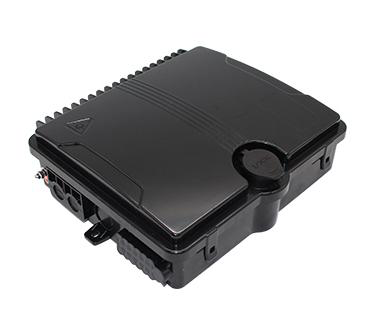

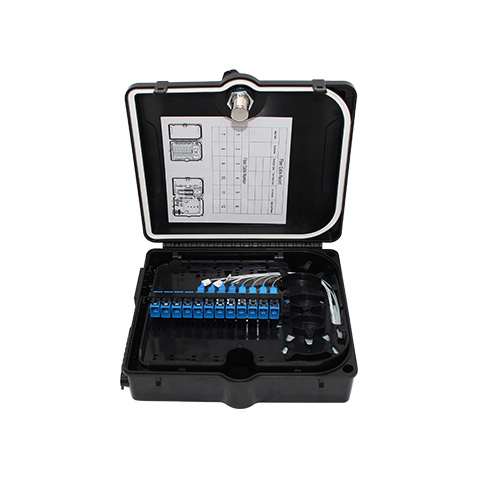

12 Core Fiber Distribution Box
The 12-core fiber distribution box is suitable for connecting optical cables and user drop cables in optical access networks. It supports up to 2 splitters and 12 cores, providing a reliable connection between optical cables and user drop cables. It adopts wall-mounted or pole-mounted installation methods, suitable for indoor and outdoor environments.
Request a Quote
Download Datasheet
Overview
The 12-core fiber distribution box is suitable for connecting optical cables and user drop cables in optical access networks. It supports up to 2 splitters and 12 cores, providing a reliable connection between optical cables and user drop cables. It adopts wall-mounted or pole-mounted installation methods, suitable for indoor and outdoor environments.
Specifications
| Parameter | Value |
|---|---|
| Dimensions (LxWxH) | 232mm×213mm×69mm |
| Adapter Type | SC single-mode adapter, LC dual-mode adapter |
| Cable Entry Diameter | 13mm |
| Splitter Type | 1×4/1×8 standard splitter |
| Optional Accessories | Cable ties |
| Optional Accessories | heat shrink tubes |
| Optional Accessories | standard splitters |
| Cable In/Out Quantity | 2:12 |
| Operating Temperature | -40~65°C |
Applications
1. Telecommunications networks 2. FTTX 3. Local area networks
Key Features
1. Supports connection and branching with a compact structure, convenient for expansion 2. Internal clear structure, easy maintenance 3. Compatible with standard splitters 4. IP65 protection level
Datasheet
Product Datasheet
PDF
Supplier Information
Founded in 2000, Guangdong HYC Technology Co., Ltd. has long been deeply engaged in technological innovation and intelligent manufacturing in the optical communication field, providing global customers with integrated customized solutions for the R&D, production, sales, and service of high-performance passive optical components.
Headquartered in Qingyuan, Guangdong, the company has built a modern office and production park of over 50,000 square meters, equipped with Class 10,000 and Class 100,000 high-standard cleanrooms. Adhering to the development philosophy of "Intelligent manufacturing as the foundation, quality builds trust," and relying on two major production bases in Qingyuan and Thailand as well as an R&D center in Shenzhen, the company has established a complete business system integrating independent R&D, large-scale production, and global delivery.
The company's main products include optical interconnection products such as fiber optic patch cords, flexible optical circuit Shuffle products, and optical module internal connection components, as well as high-end optical component products such as CPO co-packaged optics supporting components, multi-core fiber (MCF) interconnection solutions, and OCS optical switching core devices. It also produces PLC splitters and WDM wavelength division multiplexers. The products are widely used in core scenarios such as computing data centers, cloud computing, and 5G/6G mobile communications.
The company currently has more than 3,000 employees and an international-level R&D team. It has independently developed multiple technologies and obtained numerous domestic and international patent certificates. Its products are exported to markets in Europe, Asia, the Americas, and other regions.
