PLC optical splitter MINI module

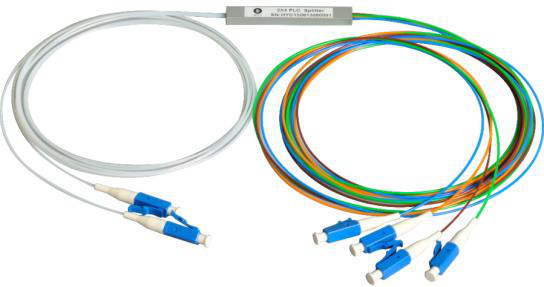

PLC optical splitter MINI module is an optical power equalization product based on quartz substrate material and planar optical waveguide technology. It is mainly used for optical signal coupling and distribution in passive optical network (PON) systems. It is one of the most important passive components in optical networks. HYC provides PLC optical splitters in multiple modes such as 1xN, 2xN, MxN, etc., to meet the diversified demands of customers. Compared with FBT (Fused) splitters, PLC splitters have the advantages of wavelength insensitivity, uniform splitting, high stability, and high density. They are widely used in metropolitan area networks, local area networks, FTTX, and other fields.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 1260-1650 |
| Fiber Type | G652D/G657A1/G657A2 |
| Tube Type | 0.9mm loose tube |
| Channel Type | 1x2, 2x2, 1x4, 2x4, 1x8, 1x16, 2x16, 1x32, 2x32, 1x64, 2x64 |
| Insertion Loss (dB) 1x2 | ≤4.0 |
| Insertion Loss (dB) 2x2 | ≤4.2 |
| Insertion Loss (dB) 1x4 | ≤7.2 |
| Insertion Loss (dB) 2x4 | ≤7.4 |
| Insertion Loss (dB) 1x8 | ≤10.5 |
| Insertion Loss (dB) 1x16 | ≤13.7 |
| Insertion Loss (dB) 2x16 | ≤14.0 |
| Insertion Loss (dB) 1x32 | ≤17.0 |
| Insertion Loss (dB) 2x32 | ≤17.5 |
| Insertion Loss (dB) 1x64 | ≤20.6 |
| Insertion Loss (dB) 2x64 | ≤21.0 |
| Uniformity (dB) 1x2 | ≤0.4 |
| Uniformity (dB) 2x2 | ≤1.0 |
| Uniformity (dB) 1x4 | ≤0.6 |
| Uniformity (dB) 2x4 | ≤1.5 |
| Uniformity (dB) 1x8 | ≤0.8 |
| Uniformity (dB) 1x16 | ≤1.5 |
| Uniformity (dB) 2x16 | ≤2.0 |
| Uniformity (dB) 1x32 | ≤2.1 |
| Uniformity (dB) 2x32 | ≤2.5 |
| Uniformity (dB) 1x64 | ≤2.5 |
| Uniformity (dB) 2x64 | ≤2.5 |
| PDL (dB) 1x2 | ≤0.2 |
| PDL (dB) 2x2 | ≤0.3 |
| PDL (dB) 1x4 | ≤0.3 |
| PDL (dB) 2x4 | ≤0.3 |
| PDL (dB) 1x8 | ≤0.3 |
| PDL (dB) 1x16 | ≤0.3 |
| PDL (dB) 2x16 | ≤0.3 |
| PDL (dB) 1x32 | ≤0.3 |
| PDL (dB) 2x32 | ≤0.3 |
| PDL (dB) 1x64 | ≤0.35 |
| PDL (dB) 2x64 | ≤0.35 |
| TDL (dB) | ≤0.5 |
| Return Loss (dB) | ≥55 |
| Directivity (dB) | ≥55 |
| Working Power (mW) | ≤500 |
| Operating Temperature (°C) | -40~+85 |
| Storage Temperature (°C) | -40~+85 |
| Package Size (L×W×H) 1x2 | 60x7x4 |
| Package Size (L×W×H) 1x4 | 60x12x4 |
| Package Size (L×W×H) 1x8 | 70x12x4 |
| Package Size (L×W×H) 1x16 | 80x20x6 |
| Package Size (L×W×H) 1x64 | 100x40x6 |
