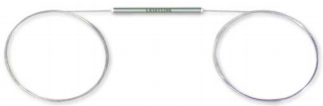

Full Band Coupler
The Full Band Coupler (DWC) is manufactured using special coupling technology. Its operating bandwidth extends from 1260 to 1620nm, featuring low insertion loss and low PDL.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Bandwidth | ±40nm |
| Typical Excess Loss | ≤0.07 (P grade), ≤0.1 (A grade) |
| Insertion Loss (dB) 50/50 | ≤3.8 (P grade), ≤4.0 (A grade) |
| Insertion Loss (dB) 45/55 | ≤4.45/3.45 (P grade), ≤4.65/3.65 (A grade) |
| Insertion Loss (dB) 40/60 | ≤5.1/3.1 (P grade), ≤5.3/3.3 (A grade) |
| Insertion Loss (dB) 35/65 | ≤5.7/2.7 (P grade), ≤5.95/2.90 (A grade) |
| Insertion Loss (dB) 30/70 | ≤6.0/2.55 (P grade), ≤6.25/2.75 (A grade) |
| Insertion Loss (dB) 25/75 | ≤7.4/2.0 (P grade), ≤7.65/2.2 (A grade) |
| Insertion Loss (dB) 20/80 | ≤8.3/1.7 (P grade), ≤8.8/1.8 (A grade) |
| Insertion Loss (dB) 15/85 | ≤9.9/1.4 (P grade), ≤10.1/1.5 (A grade) |
| Insertion Loss (dB) 10/90 | 9.10-11.0/≤1.15 (P grade), 8.65-11.50/≤1.25 (A grade) |
| Insertion Loss (dB) 5/95 | 11.90-14.30/≤0.80 (P grade), 11.40-14.80/≤0.90 (A grade) |
| Polarization Dependent Loss | ≤0.15 (P grade), ≤0.2 (A grade) |
| Directivity | ≥55 |
| Operating Temperature | -40~+85°C |
