3-Port TAP Device

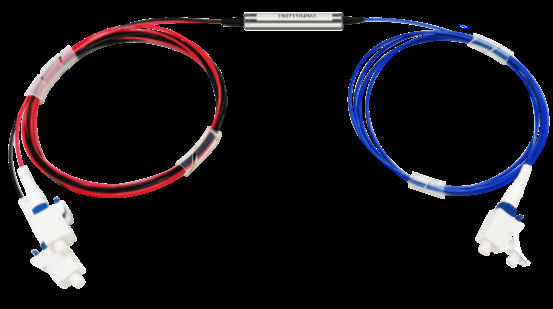

HYC's 3-Port TAP device is an advanced optical splitter based on TFF (thin-film filter) technology. It is designed for network signal transmission and monitoring, offering high stability and reliability. Compared to traditional fused biconical taper splitters (FBT), TAP devices provide superior performance in industrial and commercial applications. They are widely used in testing equipment monitoring, WDM channel monitoring, and optical network switching and protection.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Fiber Mode Single Mode(SM) | 1260-1650nm |
| Fiber Mode Multimode(MM) | 800-900nm |
| TAP Split Ratio 90:10 Single Mode(SM) | ≤1.0dB |
| TAP Split Ratio 80:20 Single Mode(SM) | ≤1.5dB |
| TAP Split Ratio 70:30 Single Mode(SM) | ≤2.1dB |
| TAP Split Ratio 60:40 Single Mode(SM) | ≤2.8dB |
| TAP Split Ratio 50:50 Single Mode(SM) | ≤3.5dB |
| TAP Split Ratio 90:10 Multimode(MM) | ≤2.0dB |
| TAP Split Ratio 80:20 Multimode(MM) | ≤2.5dB |
| TAP Split Ratio 70:30 Multimode(MM) | ≤3.0dB |
| TAP Split Ratio 60:40 Multimode(MM) | ≤3.5dB |
| TAP Split Ratio 50:50 Multimode(MM) | ≤4.0dB |
| Pass Insertion Loss Single Mode(SM) | ≤1.0dB |
| Pass Insertion Loss Multimode(MM) | ≤1.5dB |
| TAP Insertion Loss Single Mode(SM) | ≤10.6dB |
| TAP Insertion Loss Multimode(MM) | ≤7.5dB |
| Isolation Single Mode(SM) | ≥50dB |
| Isolation Multimode(MM) | ≥30dB |
| Wavelength Dependent Loss | ≤0.5dB |
| Operating Power | ≤500mW |
| Fiber Type Single Mode(SM) | Corning Ultra/G657A2 |
| Fiber Type Multimode(MM) | OM1/OM2/OM3/OM4 |
| Package Dimensions Single Mode(SM) | 250μm bare fiber: Φ4.0×L30; 900μm loose tube: Φ5.5×L38 |
| Operating Temperature | -40~85°C |
