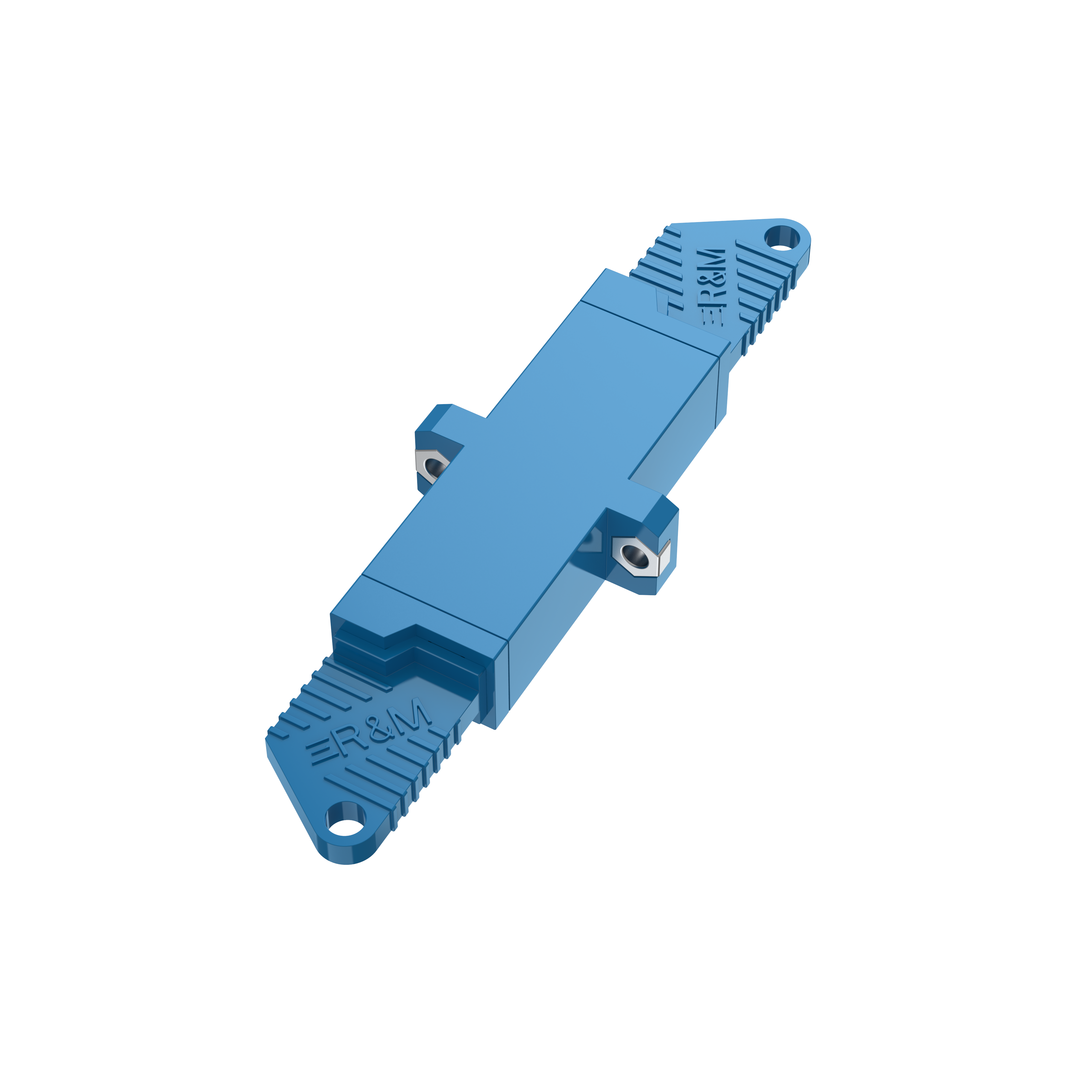

E2000 Simplex Adapter
The E2000 Simplex Adapter features injection-molded PBT housing rated to the UL94V-0 flammability index. It includes spring-loaded shutters to protect against dust and scratching, ensuring high performance over 1000 mating cycles. The adapter can be ordered with color-coded housing and frames, and mechanical coding is available upon request.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Nominal Fiber O/D | 125μm±2 |
| Insertion Loss | ≤0.2dB |
| Return Loss PC | ≥50dB |
| Return Loss APC | ≥65dB |
| Mating Durability (500 Cycles) | ≤0.2dB |
| Temperature Stability | ≤0.3dB |
| Mating Durability Temperature Range | -40°C~85°C |
Applications
