Amber200-5GE-4PA-24V
Amber200-5GE-4PA-24V is an unmanaged PoE/PoE+ industrial Ethernet switch with 5*10/100/1000 auto sensing electrical ports. Four of the copper ports support PoE/PoE+, with up to 30W output each port. The switch is powered by 9~36VDC, making it the right choice for applications where 12VDC or 24VDC power is available. Industrial level 3 protection design and IP40 enclosure protection make the product suitable for applications in harsh environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| IEEE Standards | IEEE 802.3: 10Base-T, IEEE 802.3u: 100Base-Tx and 100Base-Fx, IEEE 802.3ab: 1000Base-Tx, IEEE 802.3af/at, IEEE 802.3x |
| Electrical Ports | 5*10/100/1000Base-T (RJ45) |
| Capacity | 10Gbps |
| Switch Delay | 7μs |
| MAC Table | 2K |
| Memory Buffer | 1M |
| LED Indicator | Power |
| Power Input | 9~36VDC input, 5-pin terminal |
| Power Consumption | <3W; ≤30W on each PoE port |
| Maximum Total Power | 80W |
| Overload Current Protection | Support |
| Reverse Polarity Protection | Support |
| Storage Temperature | -40~85°C |
| Operating Temperature | -40~75°C |
| Operating Humidity | 5%~95% non-condensing |
| Enclosure | Metal |
| IP Level | IP40 |

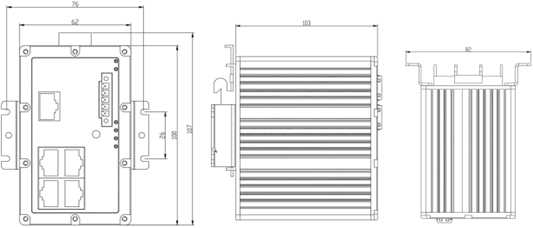

| Dimensions (WxDxH) | 62x103x100mm |
| Weight | 0.6KG |
| Installation | DIN/Wall mount |
Applications
Key Features
Datasheet
