MCDFDL-C-100
The MCDFDL-C-100 is a high-precision optical device designed for imaging and measurement applications, offering exceptional magnification and resolution capabilities.
Save to Favorites
Overview
Specifications

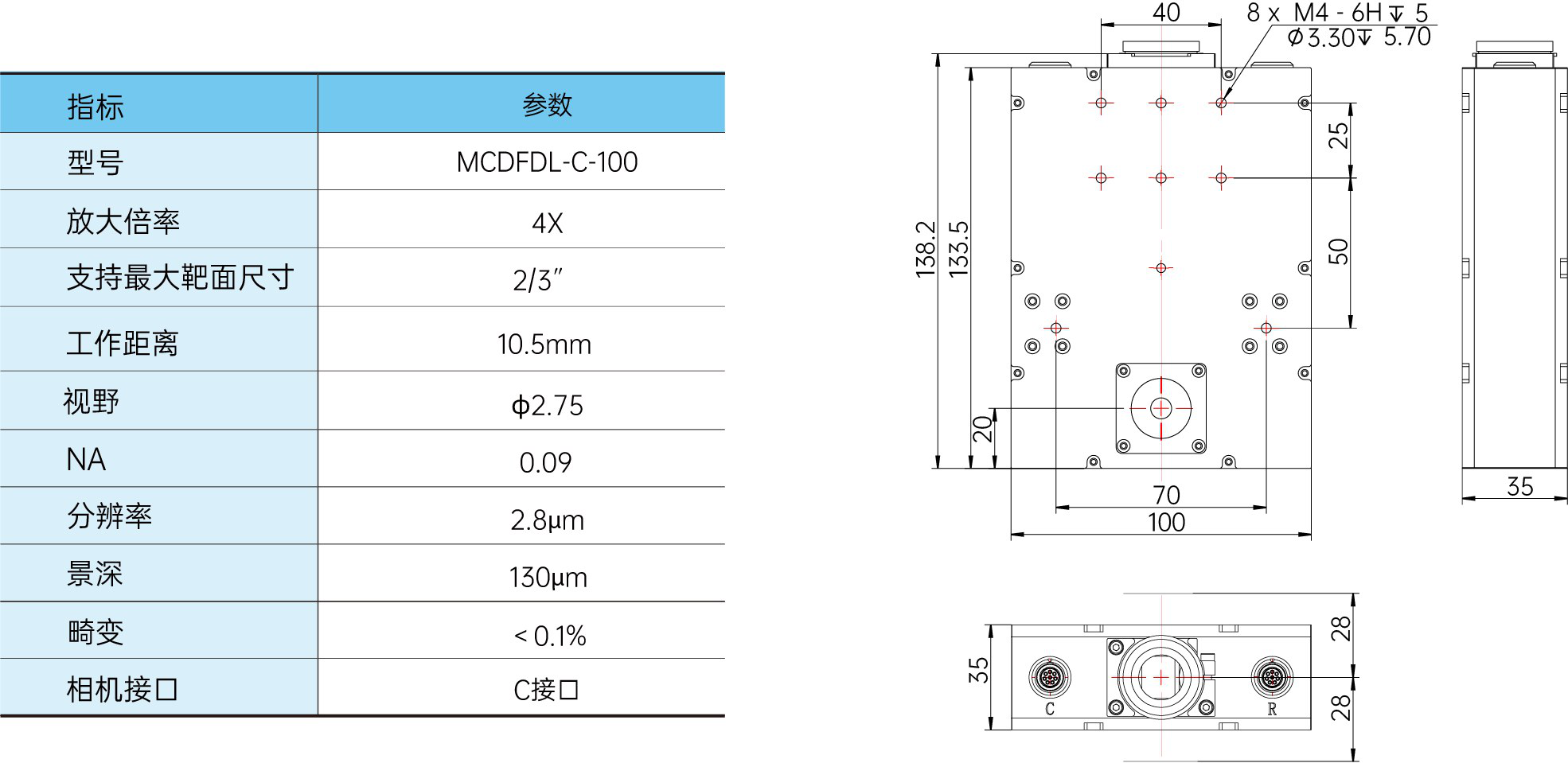

| Parameter | Value |
|---|---|
| Model | MCDFDL-C-100 |
| Magnification | 4X |
| Maximum Supported Size | 2/3" |
| Working Distance | 10.5mm |
| Field of View | Φ2.75 |
| Numerical aperture | 0.09 |
| Resolution | 2.8μm |
| Depth of Field | 130μm |
| Distortion | <0.1% |
| Camera Interface | C-Mount |
Applications
Key Features
Datasheet
