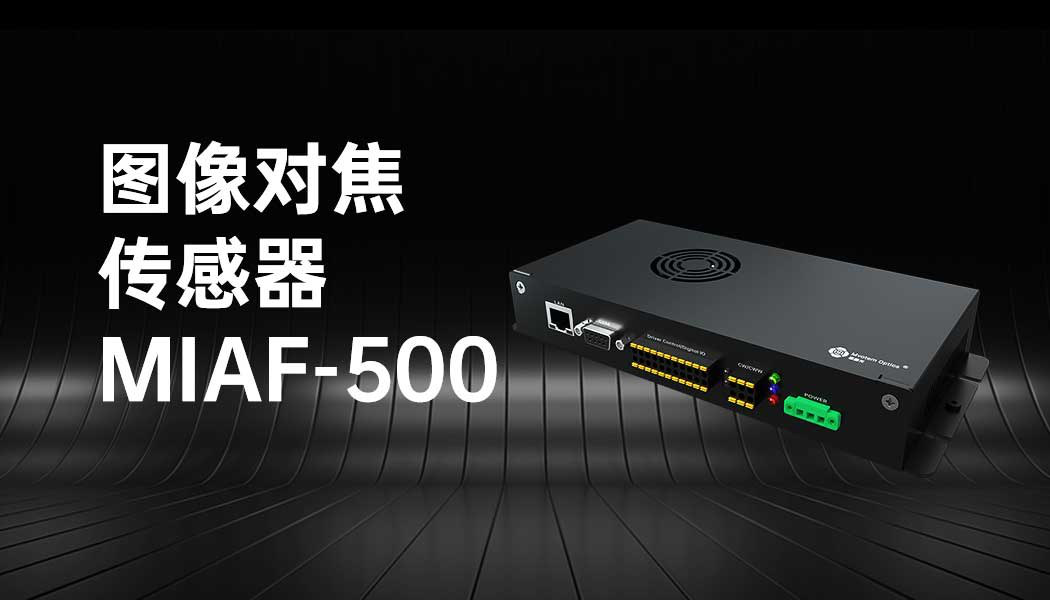

Image Autofocus Sensor MIAF-500/MIAF-600
The MIAF-500/MIAF-600 image autofocus sensor is a high-precision device designed for industrial imaging applications, offering exceptional focus accuracy and compatibility with various magnification lenses.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Product Name | Image Autofocus Sensor |
| Model | MIAF-500/MIAF-600 |
| Focus Accuracy | ±0.5μm |
| Camera and Acquisition Card | CameraLink format |
| Supported Focus Samples | All (with image features) |
| Supported Objective Magnifications | 2X, 5X, 10X, 20X, 50X/100X |
| Power Supply | 24VDC ±10% |
| Data Interface | CameraLink (SDR), Network (RJ45), Serial (DB9) |
| Digital I/O | Driver Control/Digital I/O, CameraLink Interface |
| Typical Power Consumption | 7.68W@24VDC |
| Dimensions | 220×102×35.5mm |
| Weight | 300g |
| Material, Coating, Surface Treatment | Aluminum alloy oxidation treatment |
| Assembly Accessories | 4 M3×6 screws |
| Focus Range Accuracy (5X) | ±2.0μm |
| Focus Range Accuracy (10X) | ±0.8μm |
| Focus Range Accuracy (20X) | ±0.4μm |
| Focus Range Accuracy (50X) | ±0.4μm |
| Focus Range Accuracy (100X) | ±0.3μm |
| Reference Depth of Field (DOF) (5X) | 875μm |
| Reference Depth of Field (DOF) (10X) | 350μm |
| Reference Depth of Field (DOF) (20X) | 102μm |
| Reference Depth of Field (DOF) (50X) | 40μm |
| Reference Depth of Field (DOF) (100X) | 20μm |
| Focus Time (5X) | 875ms |
| Focus Time (10X) | 950ms |
| Focus Time (20X) | 1022ms |
| Focus Time (50X) | 1200ms |
| Focus Time (100X) | 1500ms |
| Focus Range (5X) | ±150μm |
| Focus Range (10X) | ±150μm |
| Focus Range (20X) | ±150μm |
| Focus Range (50X) | ±150μm |
| Focus Range (100X) | ±150μm |
