Glan-Taylor Prism
The Glan-Taylor Prism is a high-performance optical component designed for polarization applications. It features excellent transmission properties across various wavelength ranges, including α-BBO, Calcite, and YVO4 materials.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Transmission (T%) α-BBO 200-270nm (GTP6200) | ≥90% |
| Transmission (T%) α-BBO 300-700nm (GTP6300) | ≥95% |
| Transmission (T%) α-BBO 700-3000nm (GTP6700) | ≥90% |
| Transmission (T%) Calcite 350-2300nm | ≥90% |
| Transmission (T%) YVO4 400-5000nm | ≥80% |

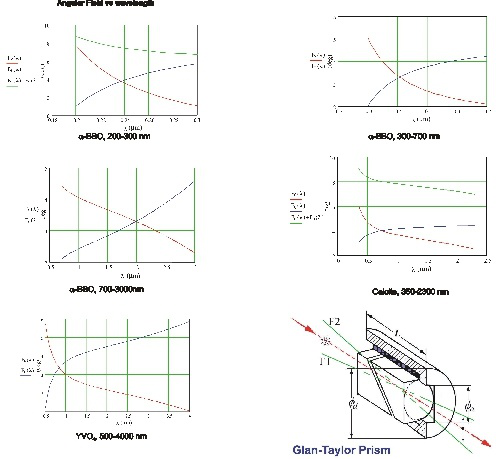

| Angular Field α-BBO 200-300nm | 0.1°-5° |
| Angular Field α-BBO 300-700nm | 0.1°-5° |
| Angular Field α-BBO 700-3000nm | 0.1°-5° |
| Angular Field Calcite 350-2300nm | 0.1°-5° |
| Angular Field YVO4 500-4000nm | 0.1°-5° |
