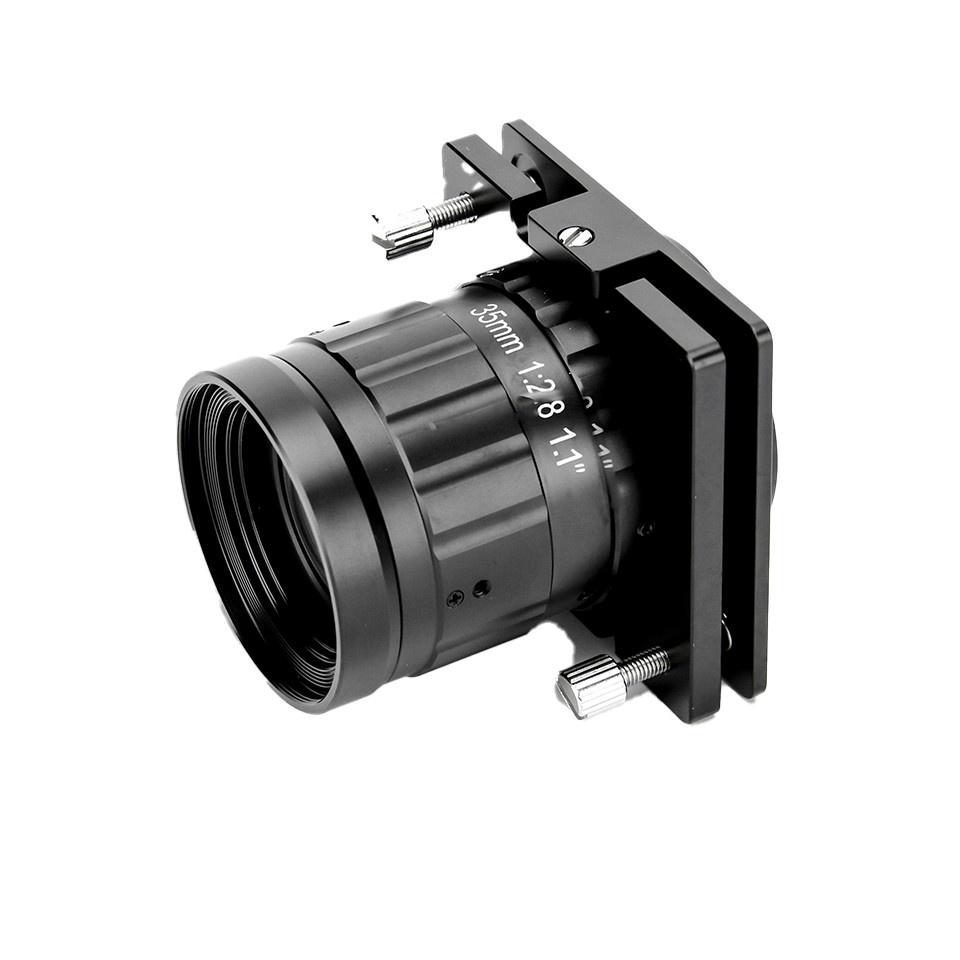

FA3516SM
The FA3516SM is a high-performance industrial lens designed for precision imaging applications. It features a focal length of 35mm and an aperture range of F2.8-22, making it suitable for capturing detailed images in various environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Focal Length | f=35mm |
| Max Diameter (Ratio) | F1:2.8-22 |
| Picture Size | 1.1" (14.1x10.6mm), 1" (12.8x9.6mm), 2/3" (8.8x6.6mm) |
| Angle | H: 22.6°/20.6°/14.3°, V: 17°/15.45°/10.76°, D: 28.3°/25.3°/18° |
| Object Dimension at 200mm | H: 78.2mm/71mm/48.8mm, V: 53.3mm/36.8mm, D: 97.6mm/88.8mm/61mm |
| Distortion (TV) | <0.02%/<0.02%/<0.01% |
| Focus Distance (min) | 200mm |
| Flange Back | 17.526mm in air |
| Back Focus | 22.99mm |
| Filter Screw Size | M35x0.5mm |
| Front/Rear Effective Dia | Front φ23mm, Rear φ19.1mm |
| Mount | SM |
| Temperature Range | -10°C~50°C |
| Storage Temperature Range | -20°C~60°C |
