bizhub 246i/226i

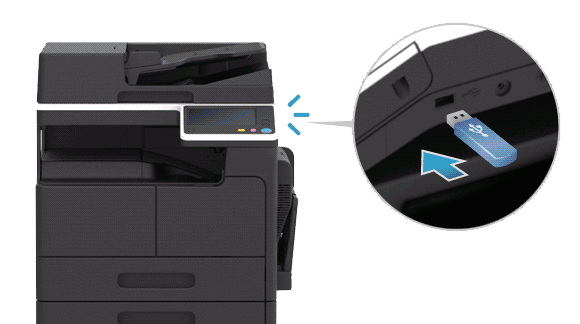

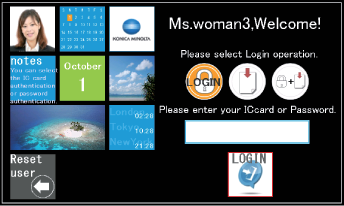

The bizhub 246i/226i is a multifunctional black-and-white copier designed for efficient document processing and seamless operation. It offers advanced features such as IC card authentication, high-speed scanning, and USB direct printing, making it ideal for modern office environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Print Speed (ppm) | 24/22 |
| Resolution (dpi) | 600×600 |
| Memory Capacity | 4GB |
| Hard Disk Capacity | SSD 256GB |
| Paper Capacity | Max. 1,350 sheets |
| Supported Paper Size | A6 to A3 |
| Duplex Printing | Standard |
| Scanning Resolution (dpi) | 600×600 |
| Scanning Speed (ppm) | Max. 55 |
| Interface | USB 2.0, Ethernet 10/100/1000 Base-T |
| Power Consumption | Max. 1,500W |
| Dimensions (mm) | 570×660×660 |
| Weight (kg) | Approx. 45 |
| Supported Operating Systems | Windows |
| Supported Operating Systems | Mac OS |
| Supported Operating Systems | Linux |
| Print Language | PCL6, PostScript3, XPS |
| Monthly Duty Cycle | Max. 120,000 pages |
| Network Protocols | TCP/IP, SMB, LPD, IPP, SNMP |
| Noise Level (dB) | ≤55 |
| Operating Temperature (°C) | 10-30 |
| Operating Humidity (%) | 15-85 |
