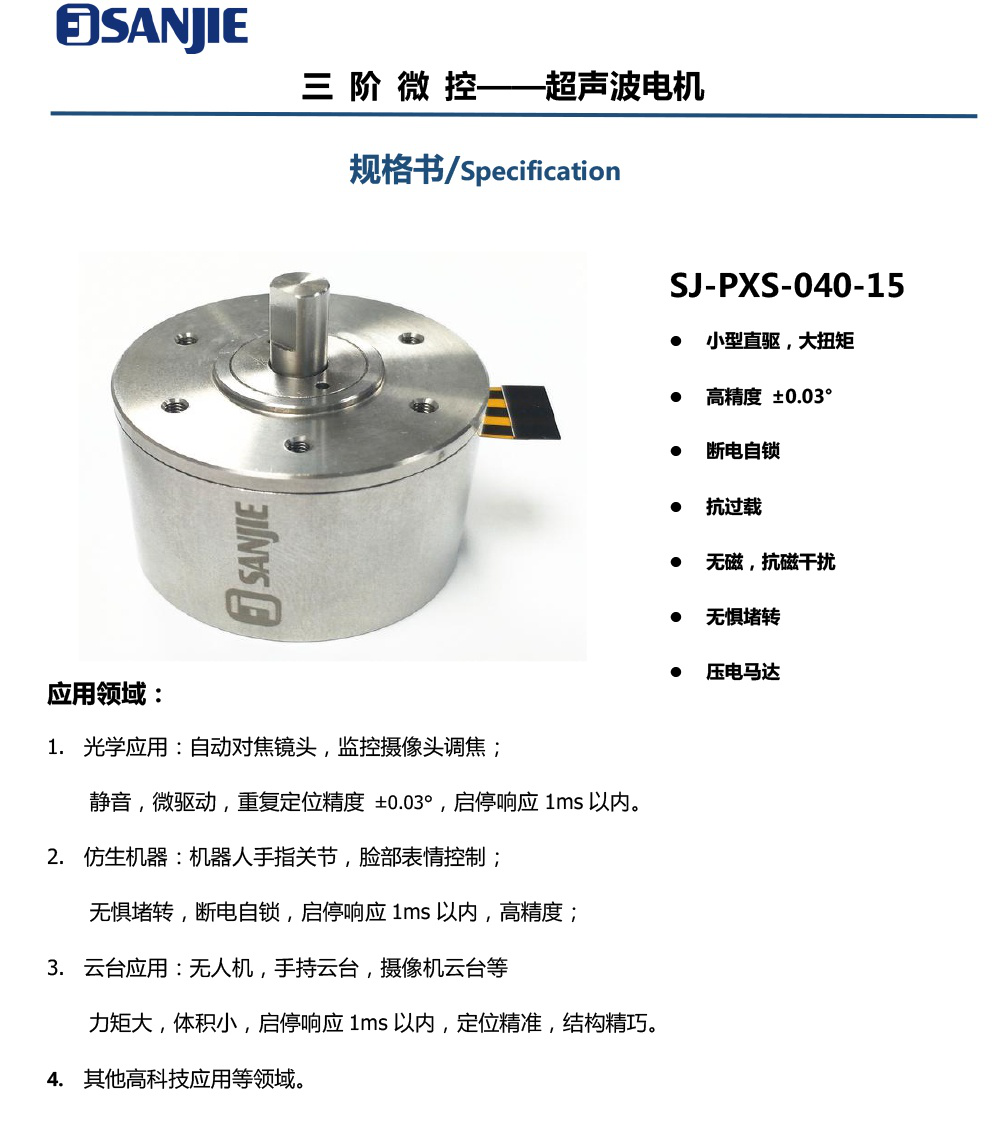

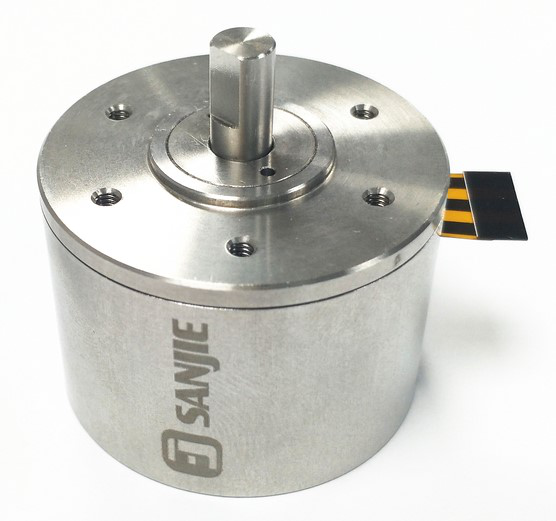

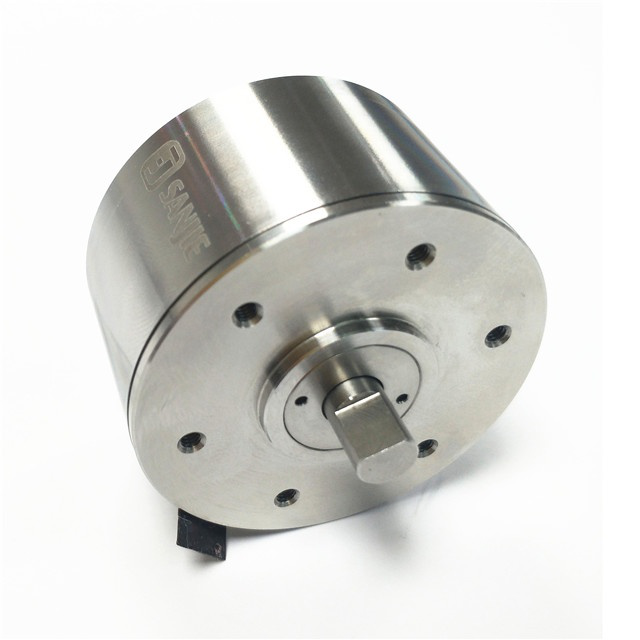

SJ-PXS-040-15

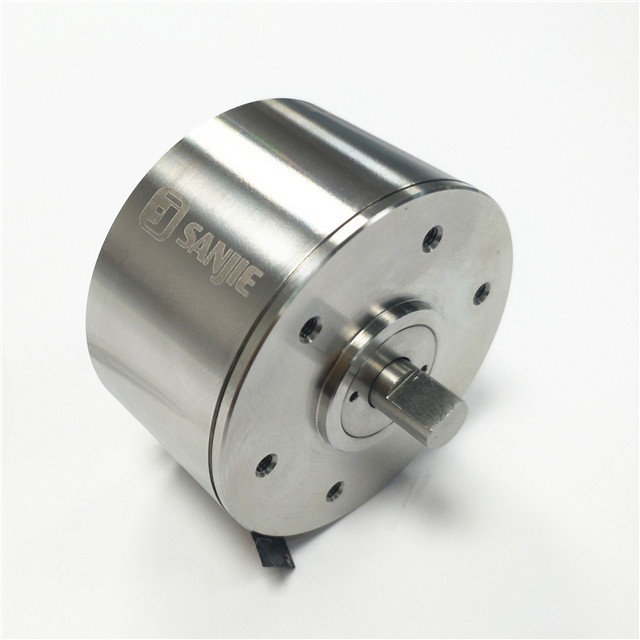

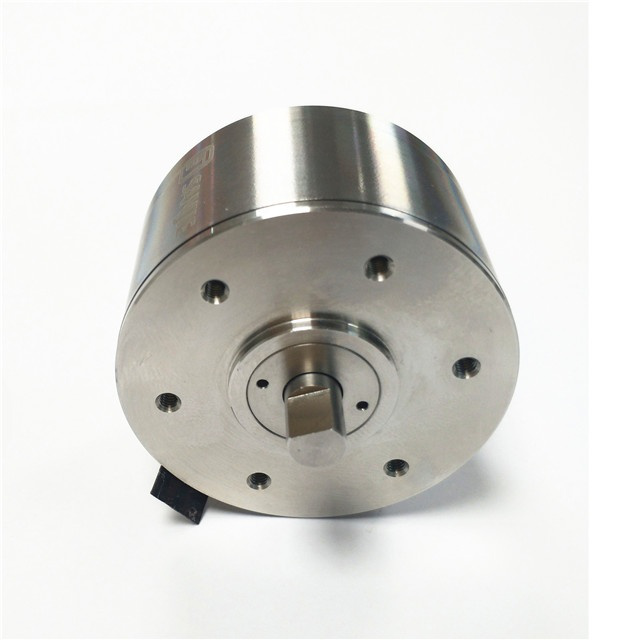

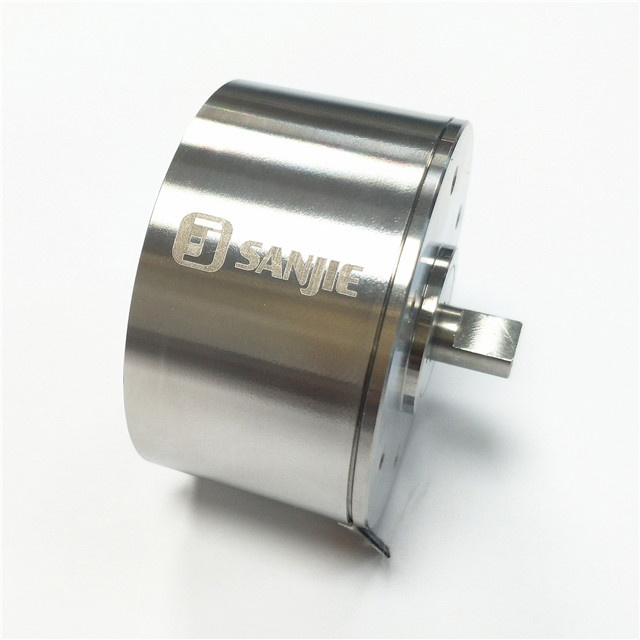

The SJ-PXS-040-15 is a compact ultrasonic motor with high precision and large torque, designed for applications requiring fast response and accurate positioning.
Save to Favorites
Overview

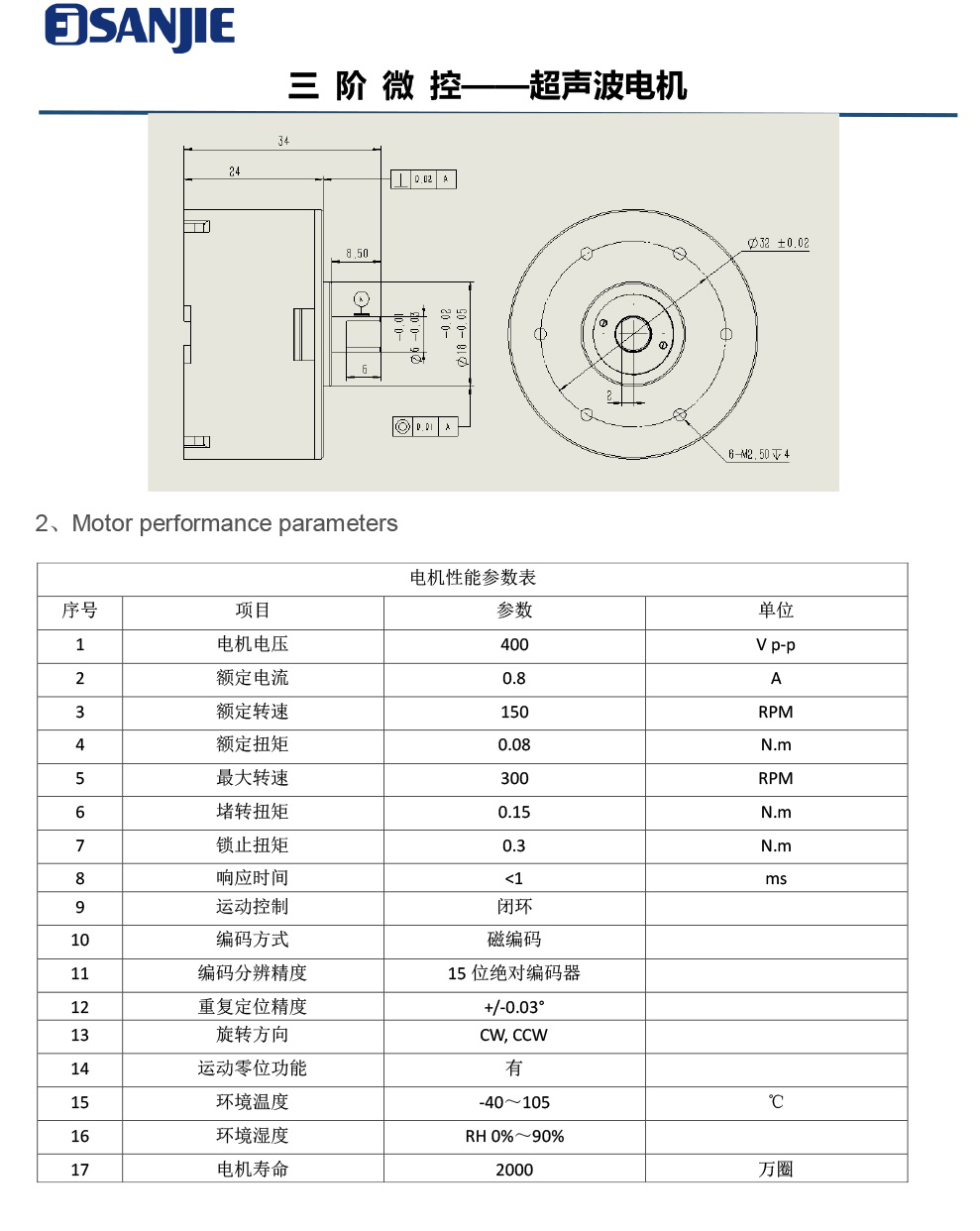

Specifications
| Parameter | Value |
|---|---|
| Motor Voltage | 400Vpp |
| Rated current | 0.8A |
| Rated Speed | 150RPM |
| Rated Torque | 0.08N.m |
| Maximum Speed | 300RPM |
| Stall Torque | 0.15N.m |
| Locking Torque | 0.3N.m |
| Response Time | <1ms |
| Motion Control | Closed-loop |
| Encoding Method | Magnetic encoding |
| Encoding Resolution | 15-bit absolute encoder |
| Repeat Positioning Accuracy | +/-0.03° |
| Rotation Direction | CW |
| Rotation Direction | CCW |
| Motion Attitude Function | Available |
| Operating Temperature | -40~105°C |
| Operating Humidity | RH 0%-90% |
| Motor Lifetime | 2000 million cycles |
