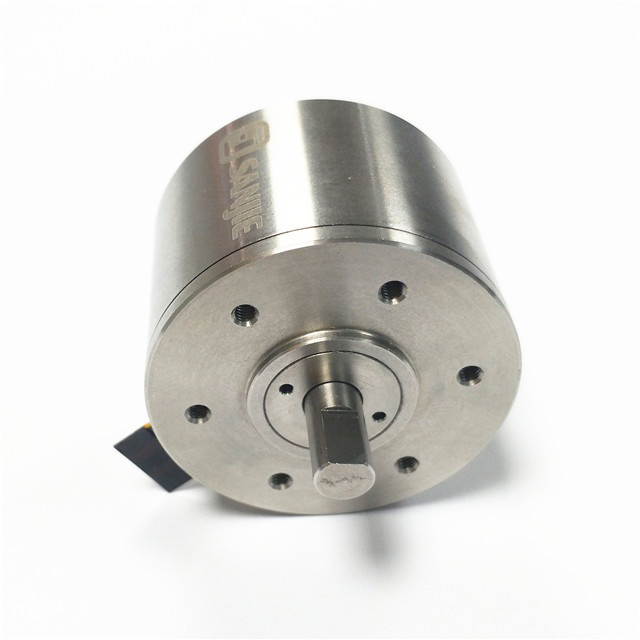

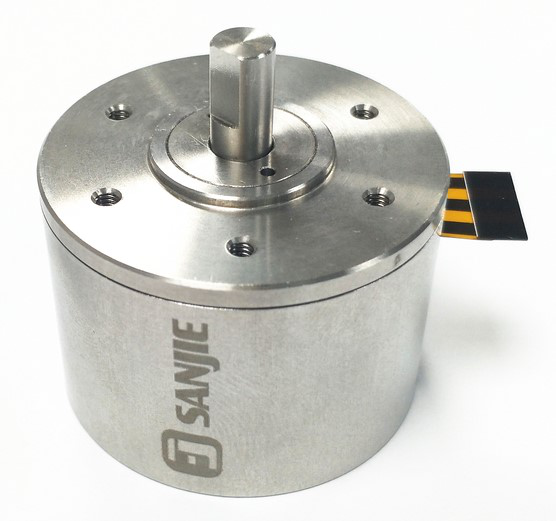

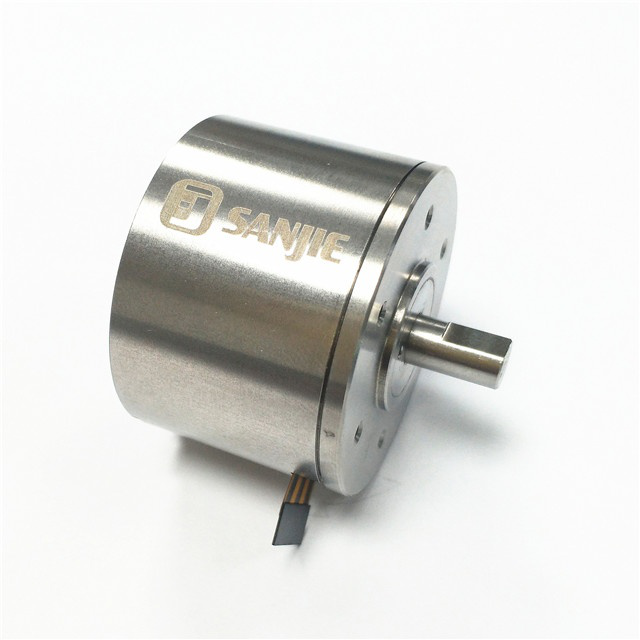

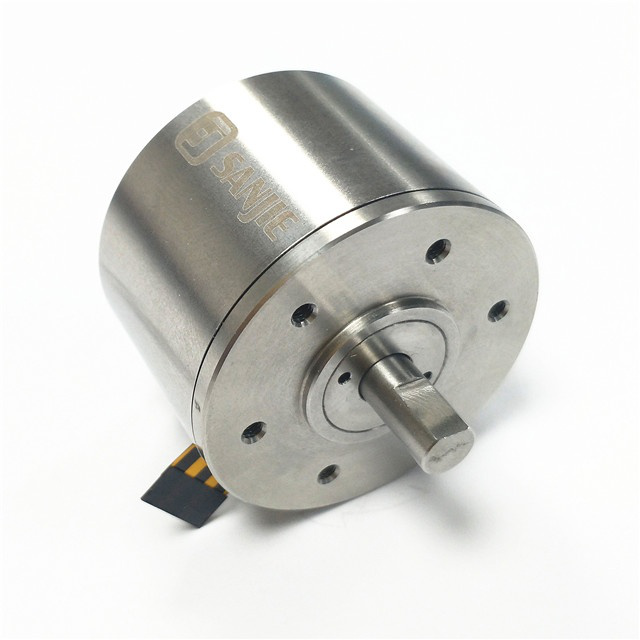

SJ-PXS-030-15
This is a compact ultrasonic motor with high torque and precision, designed for applications requiring fast response and stable performance.
Save to Favorites
Overview

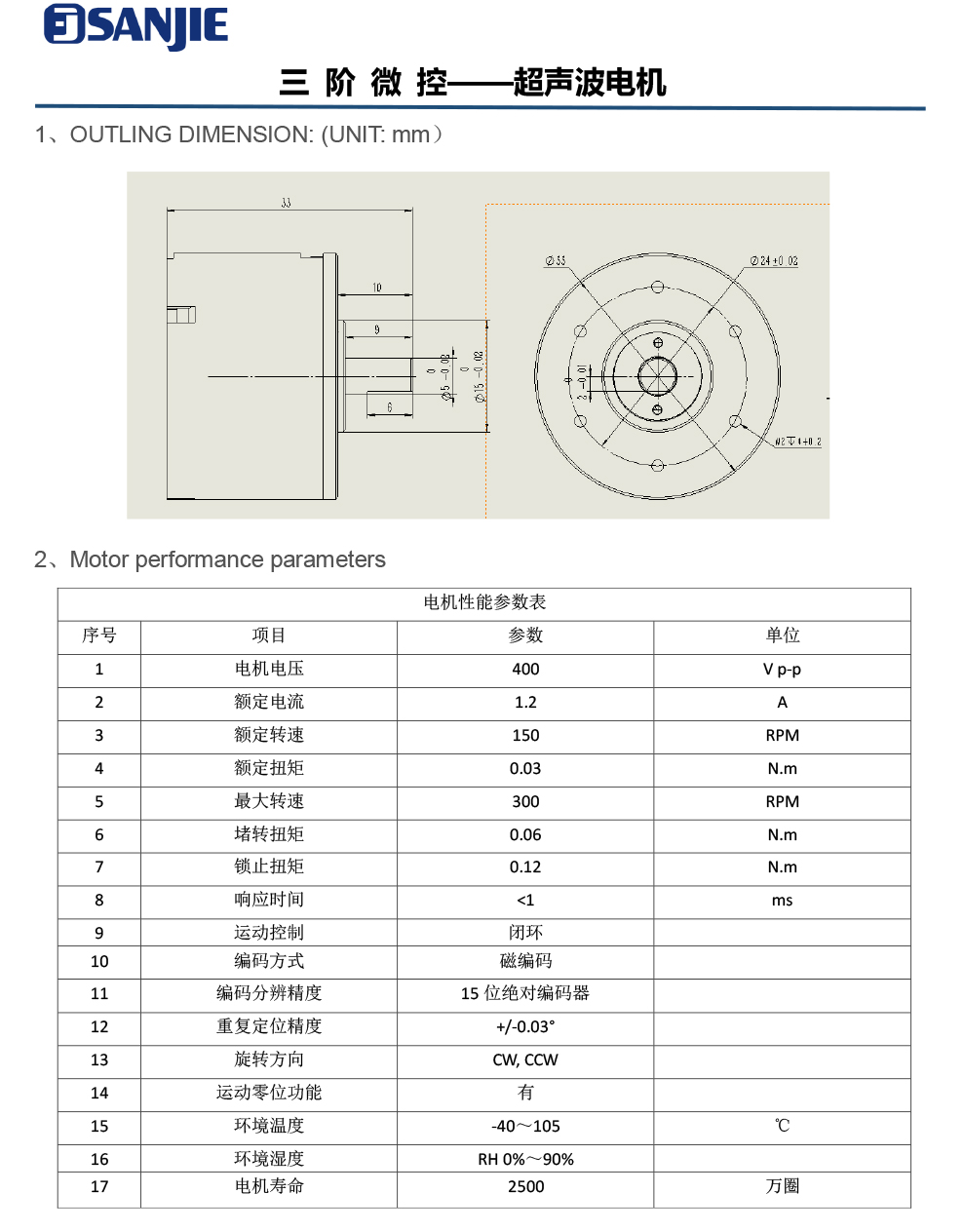

Specifications
| Parameter | Value |
|---|---|
| Motor Voltage | 400Vpp |
| Rated current | 1.2A |
| Rated Speed | 150RPM |
| Rated Torque | 0.03N.m |
| Maximum Speed | 300RPM |
| Stall Torque | 0.06N.m |
| Locking Torque | 0.12N.m |
| Response Time | <1ms |
| Motion Control | Closed-loop |

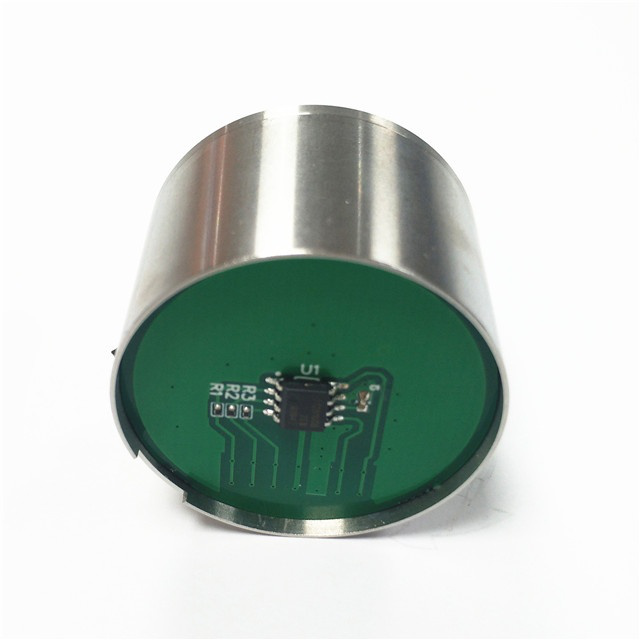

| Encoder Type | Magnetic encoder |
| Encoder Resolution | 15-bit absolute encoder |
| Repositioning Accuracy | +/-0.03° |
| Rotation Direction | CW |
| Rotation Direction | CCW |
| Zero Position Function | Available |
| Operating Temperature | -40~105°C |
| Operating Humidity | RH 0%~90% |
| Motor Lifetime | 2500 million cycles |
