Home All Products Motion Control Motors and Drives SJ-PXS-024-15

Motors and Drives

SJ-PXS-024-15

Supplier

Sjusm

Part Number

SJ-PXS-024-15

Overview

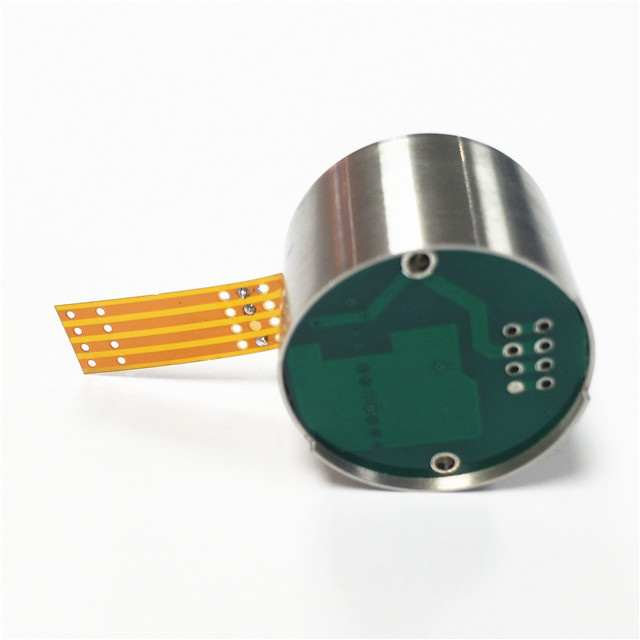

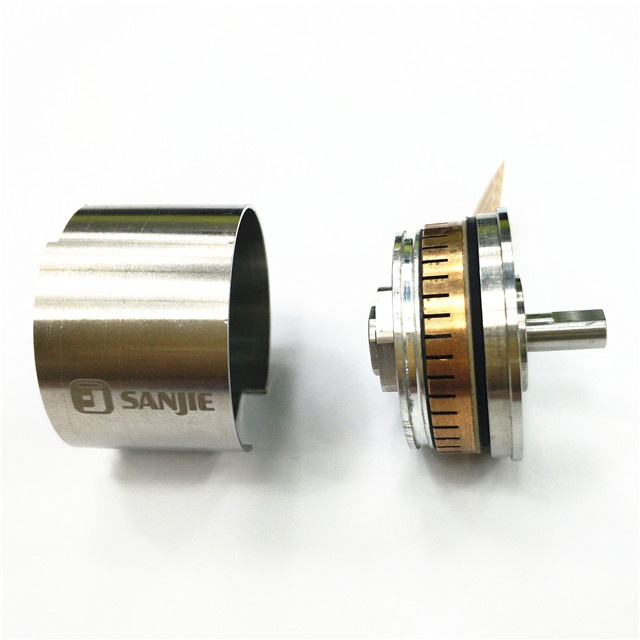

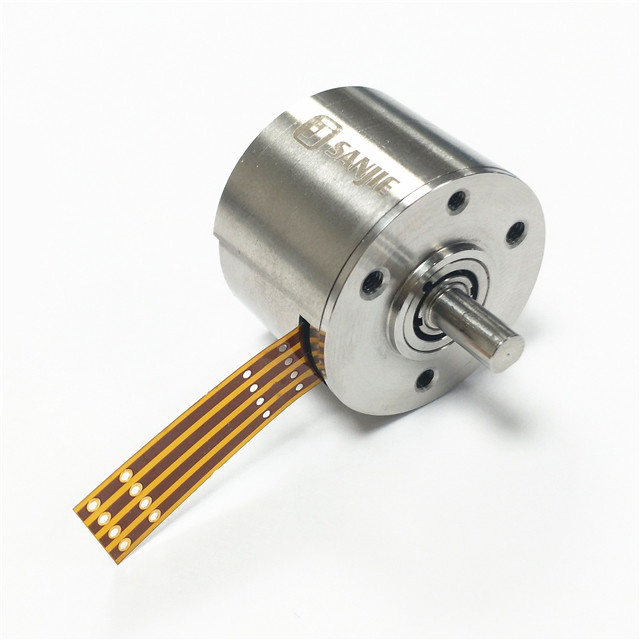

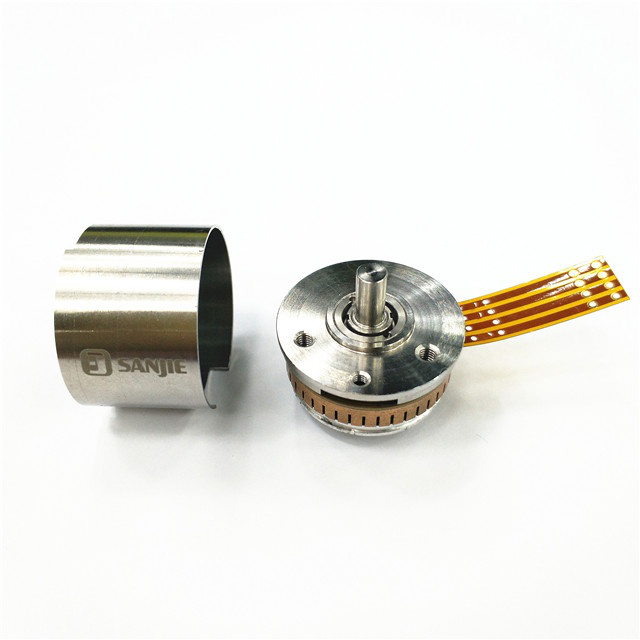

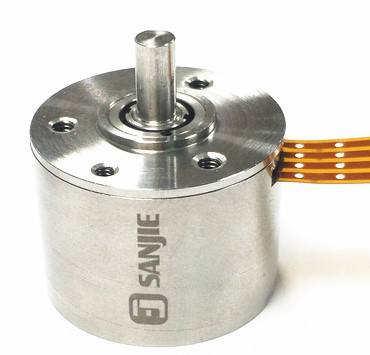

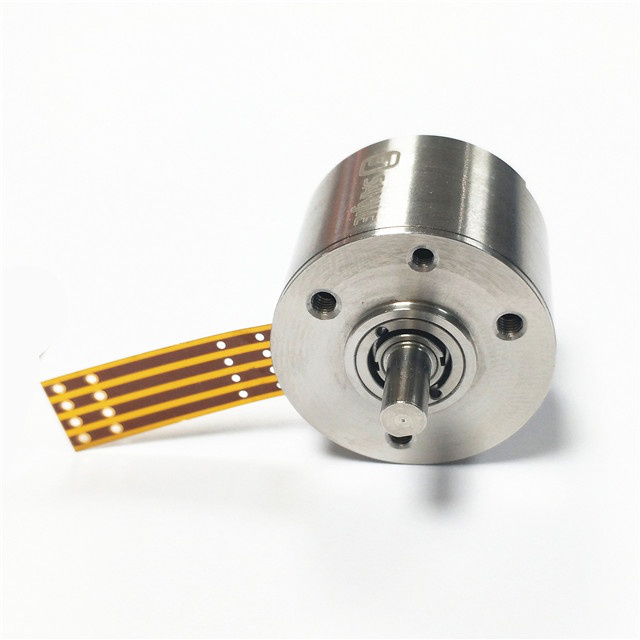

This is a compact direct-drive ultrasonic motor with high torque and precision, designed for applications requiring fast response and high accuracy.

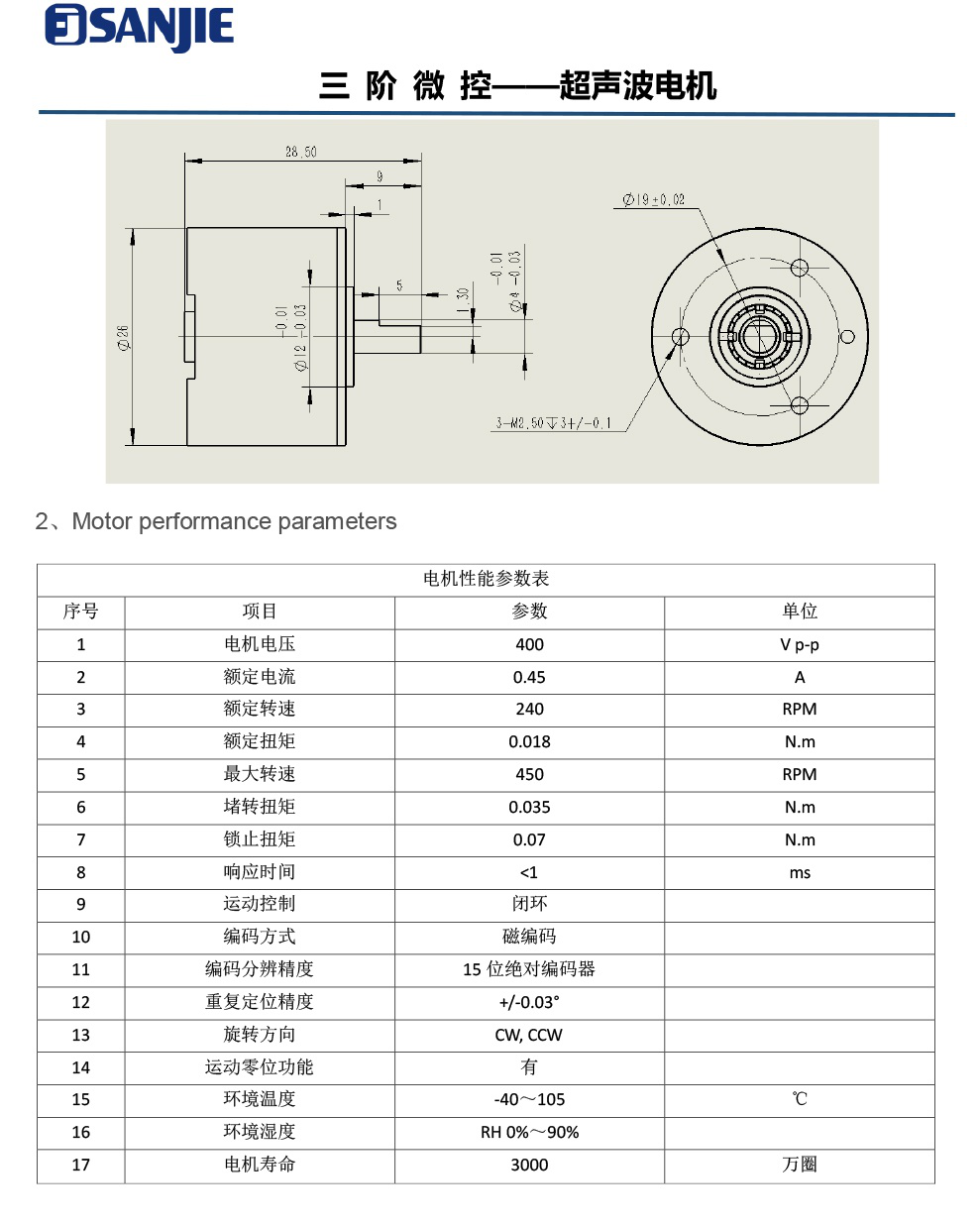

Specifications

Parameter	Value
Motor Voltage	400Vpp
Rated current	0.45A
Rated Speed	240RPM
Rated Torque	0.018N·m
Maximum Speed	450RPM
Stall Torque	0.035N·m
Lock Torque	0.07N·m
Response Time	<1ms
Motion Control	Closed-loop
Encoding Method	Magnetic encoding
Encoding Resolution	15-bit absolute encoder
Repeat Positioning Accuracy	±0.03°
Rotation Direction	CW
Rotation Direction	CCW
Zero Position Function	Available
Operating Temperature	-40~105°C
Operating Humidity	RH 0%~90%
Motor Lifetime	3000 million cycles

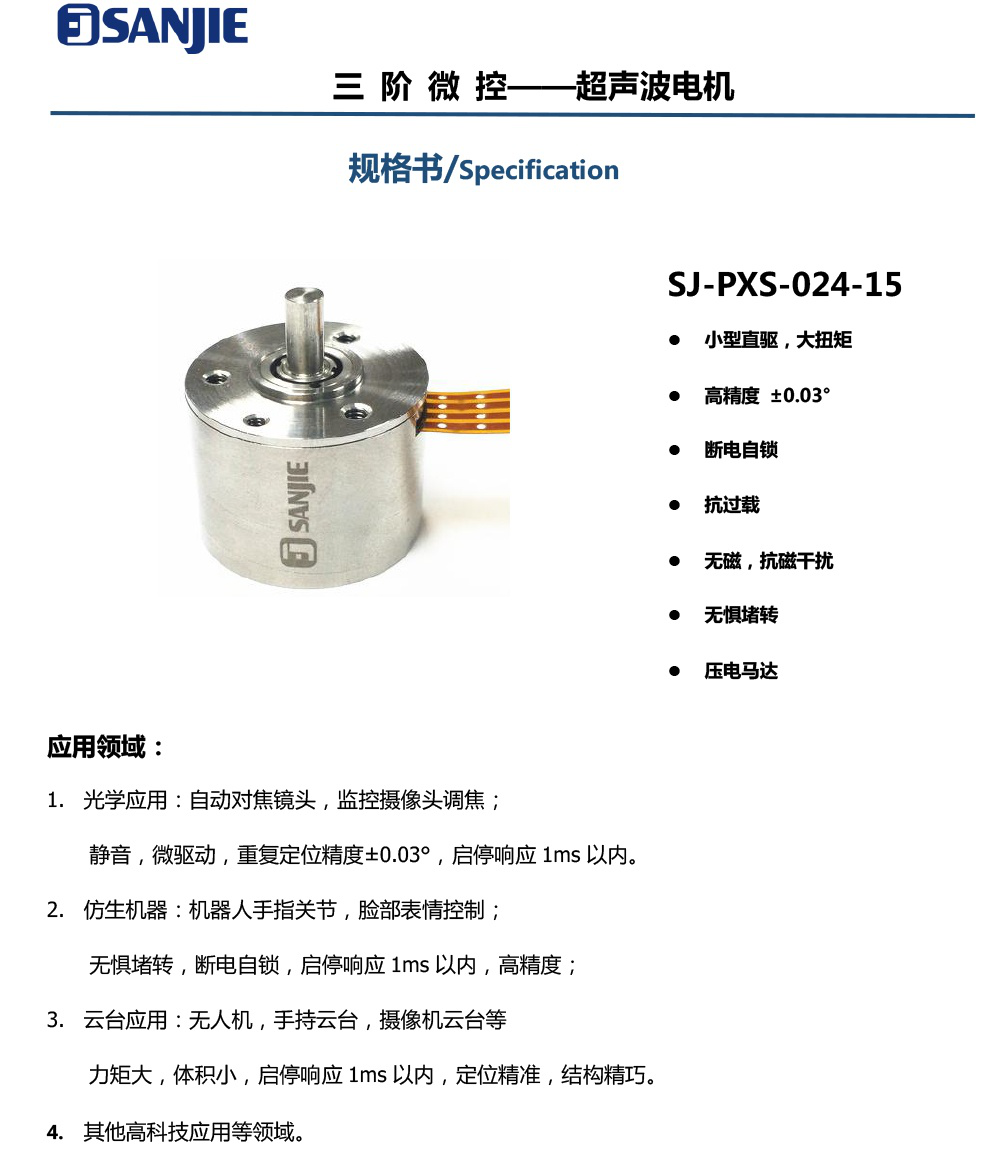

Applications

1. Optical applications: Automatic focusing for lenses and surveillance camera adjustment. 2. Bionic applications: Robot finger joints and facial expression control. 3. Cloud platform applications: UAVs, handheld platforms, and camera cloud platforms. 4. Other high-tech applications.

Key Features

1. Compact direct-drive design with high torque. 2. High precision with ±0.03° accuracy. 3. Self-locking when power is off. 4. Overload resistance. 5. Non-magnetic and anti-magnetic interference. 6. Frictionless rotation. 7. Piezoelectric drive.

Datasheet

Product Datasheet

PDF

Download

Supplier Information

Sjusm

View Supplier →

<p>Founded in September 2015, Shenzhen Sanjie Micromotion Industry Co., Ltd. is located in Bao'an District, Shenzhen. The company's ultrasonic motor products are positioned for small high-precision drive and control component applications. Based on in-depth research on ultrasonic motors, it provides integrated services including motor structure, drive power, motion control, and product introduction. In 2019, it was recognized as a national high-tech enterprise and passed ISO9001 and intellectual property standards certification, holding 25 utility model patents, 15 invention patents, and 5 software copyrights. The company has mature technical solutions for micro ultrasonic motors, micro precision drives, micro high-precision encoder combinations, shaft output schemes, and hollow off-axis designs, with 12 different models of ultrasonic motors and matching precision drive power supplies. It has cooperative projects and actual application cases in optics, precision machinery, aerospace, robotics, biomedical, consumer electronics, and other fields.</p>
