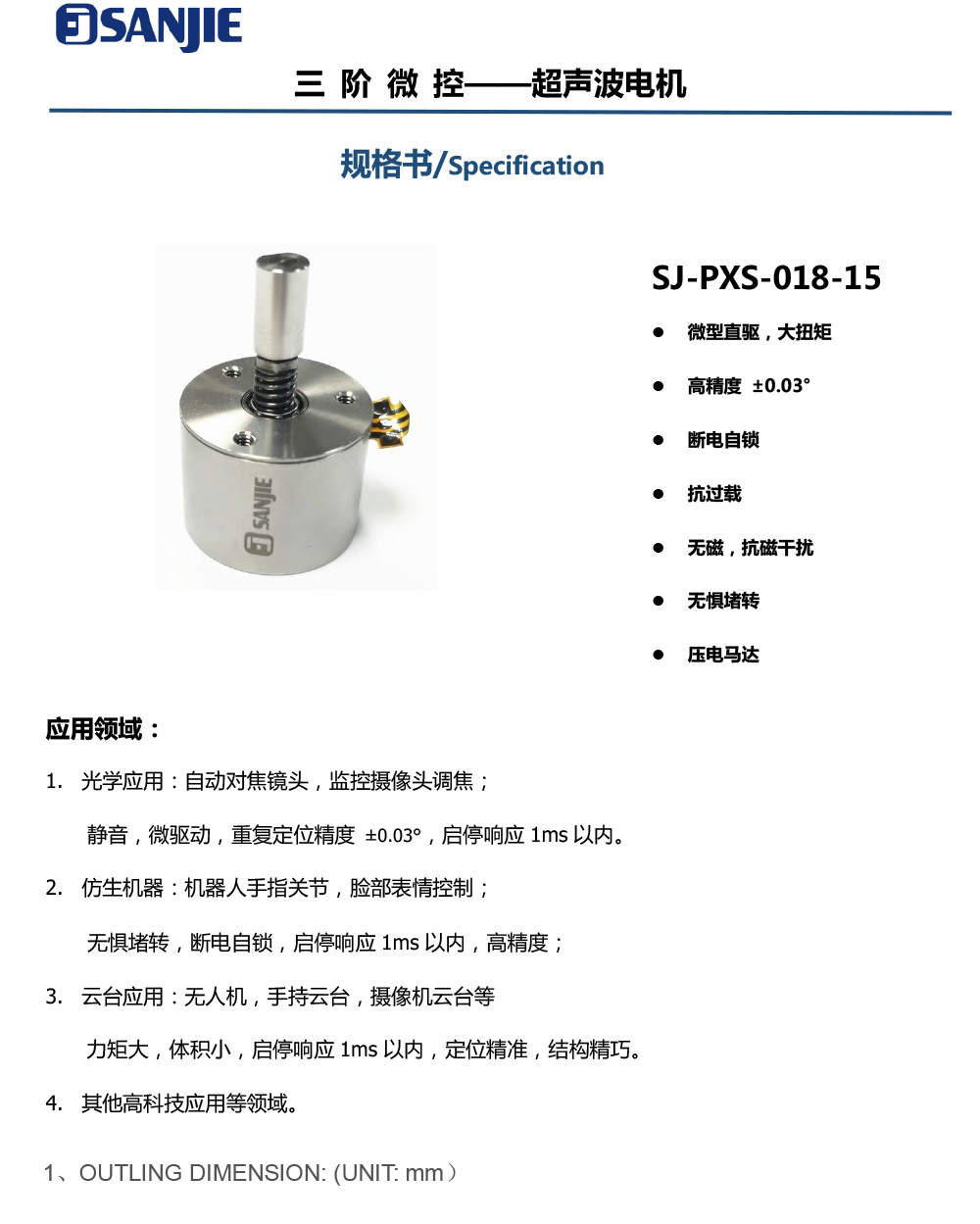

SJ-PXS-018-15

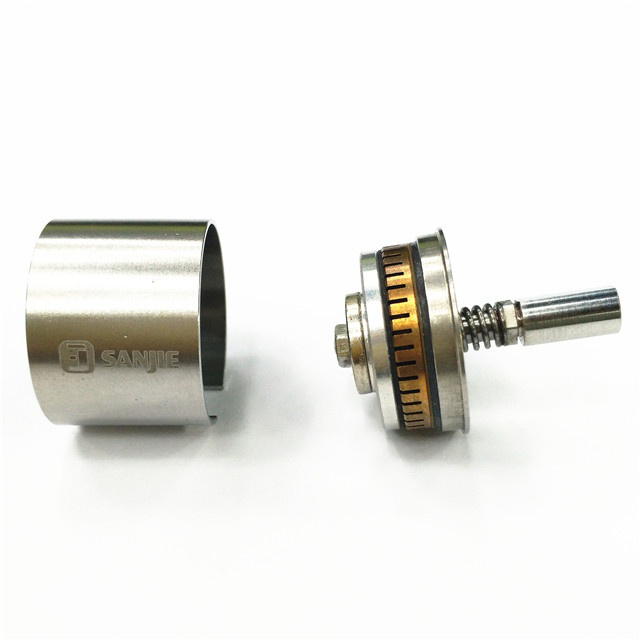

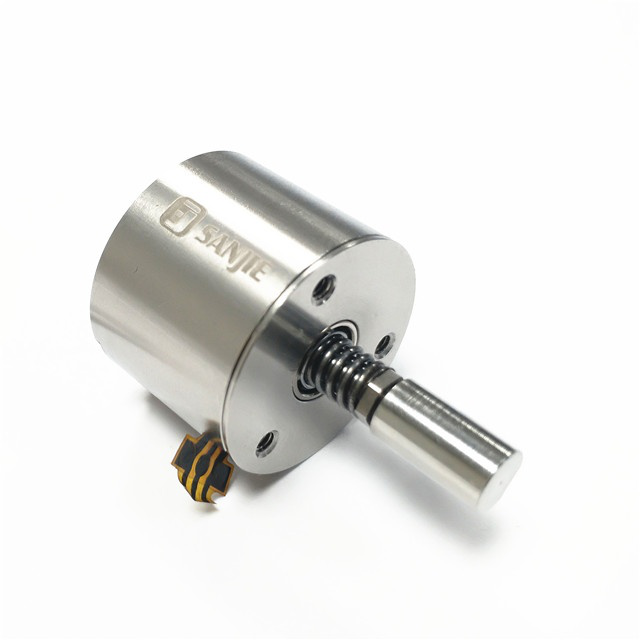

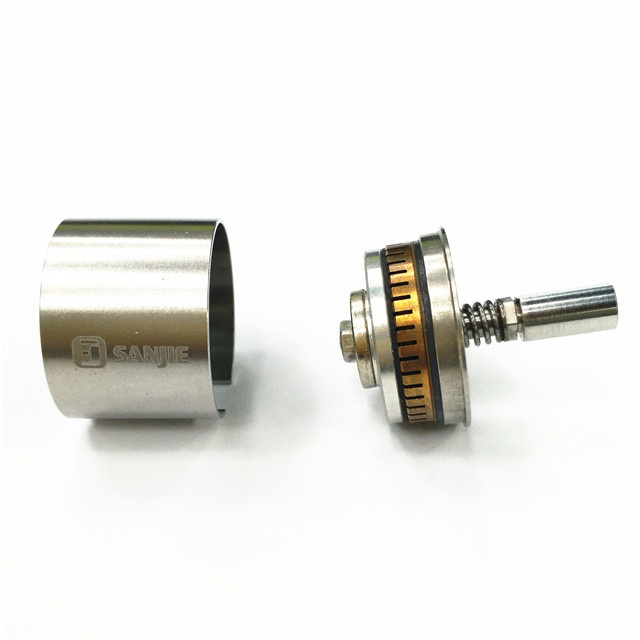

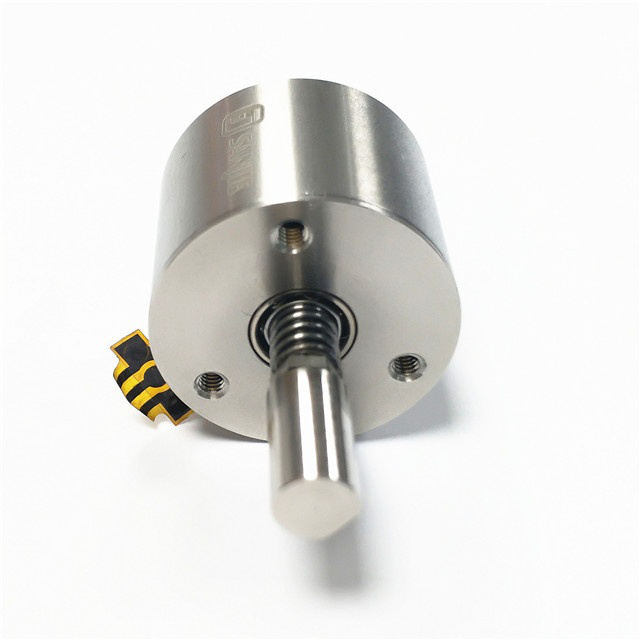

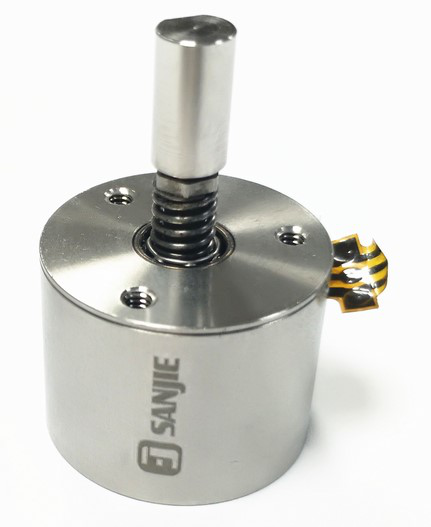

The SJ-PXS-018-15 is a compact ultrasonic motor with high precision and large torque. It features a micro direct drive design, overload protection, and anti-magnetic interference, making it suitable for various optical, bionic, and cloud platform applications.
Save to Favorites
Overview

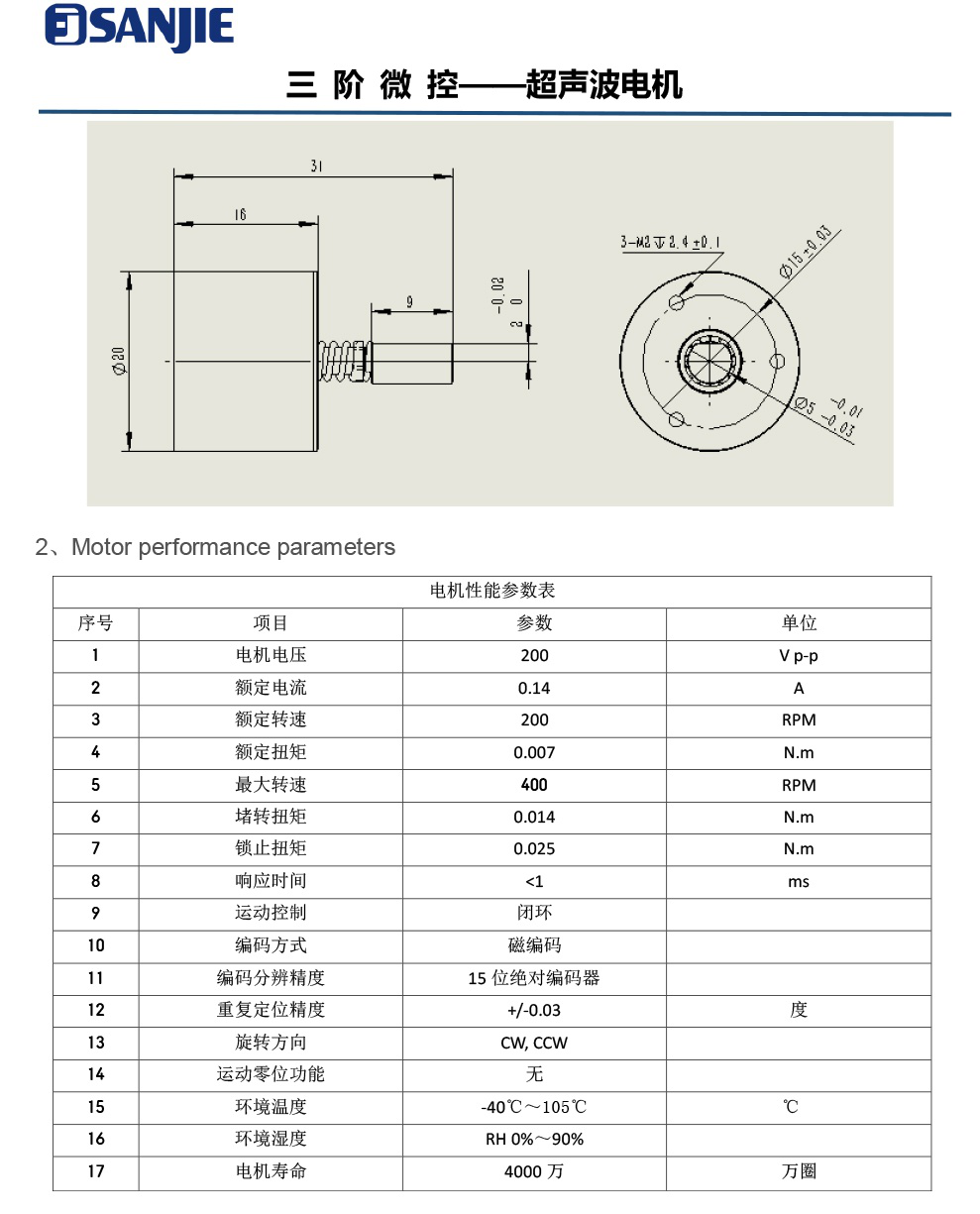

Specifications
| Parameter | Value |
|---|---|
| Motor Voltage | 200Vp-p |
| Rated current | 0.14A |
| Rated Speed | 200RPM |
| Rated Torque | 0.007N·m |
| Maximum Speed | 400RPM |
| Stall Torque | 0.014N·m |
| Locking Torque | 0.025N·m |
| Response Time | <1ms |
| Motion Control | Closed-loop |

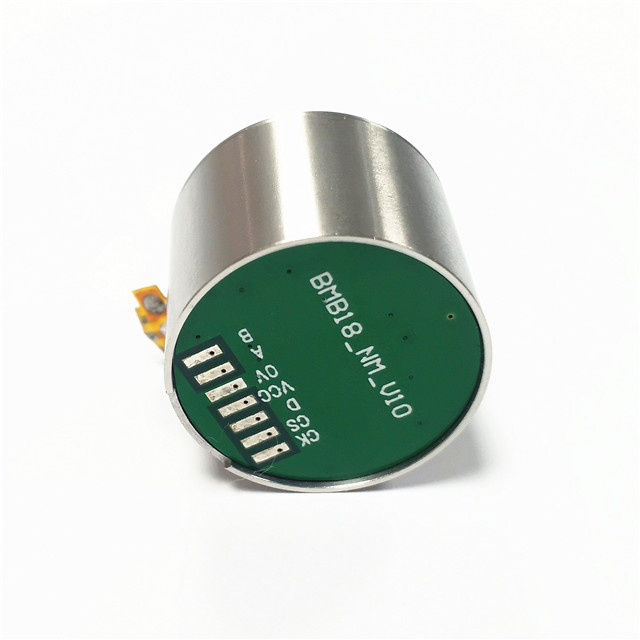

| Encoding Method | Magnetic encoding |
| Encoding Resolution | 15-bit absolute encoder |
| Rotation Direction | CW |
| Rotation Direction | CCW |
| Zero Position Function | None |
| Operating Temperature | -40°C~105°C |
| Motor Lifetime | 4000万圈 |
