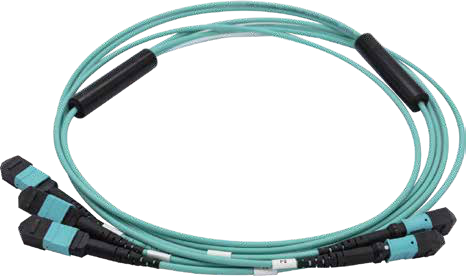

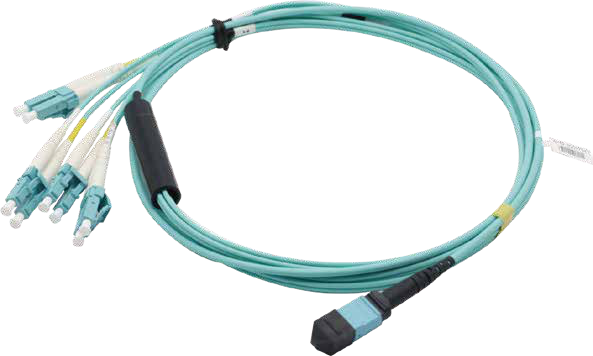

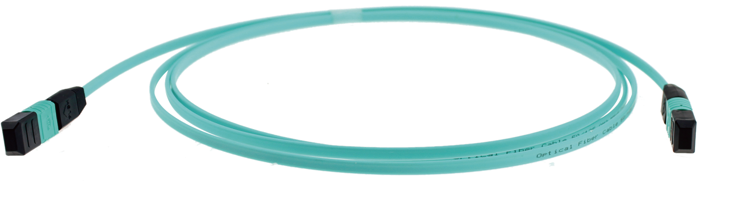

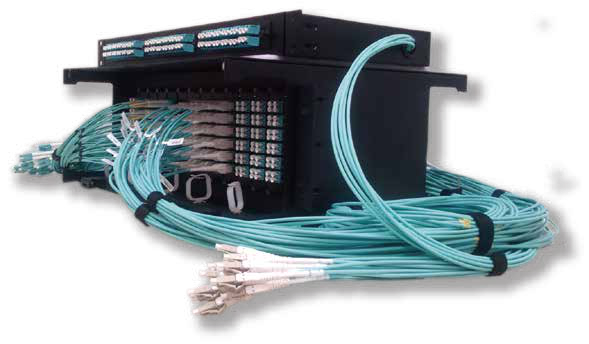

MTP Patch Cables

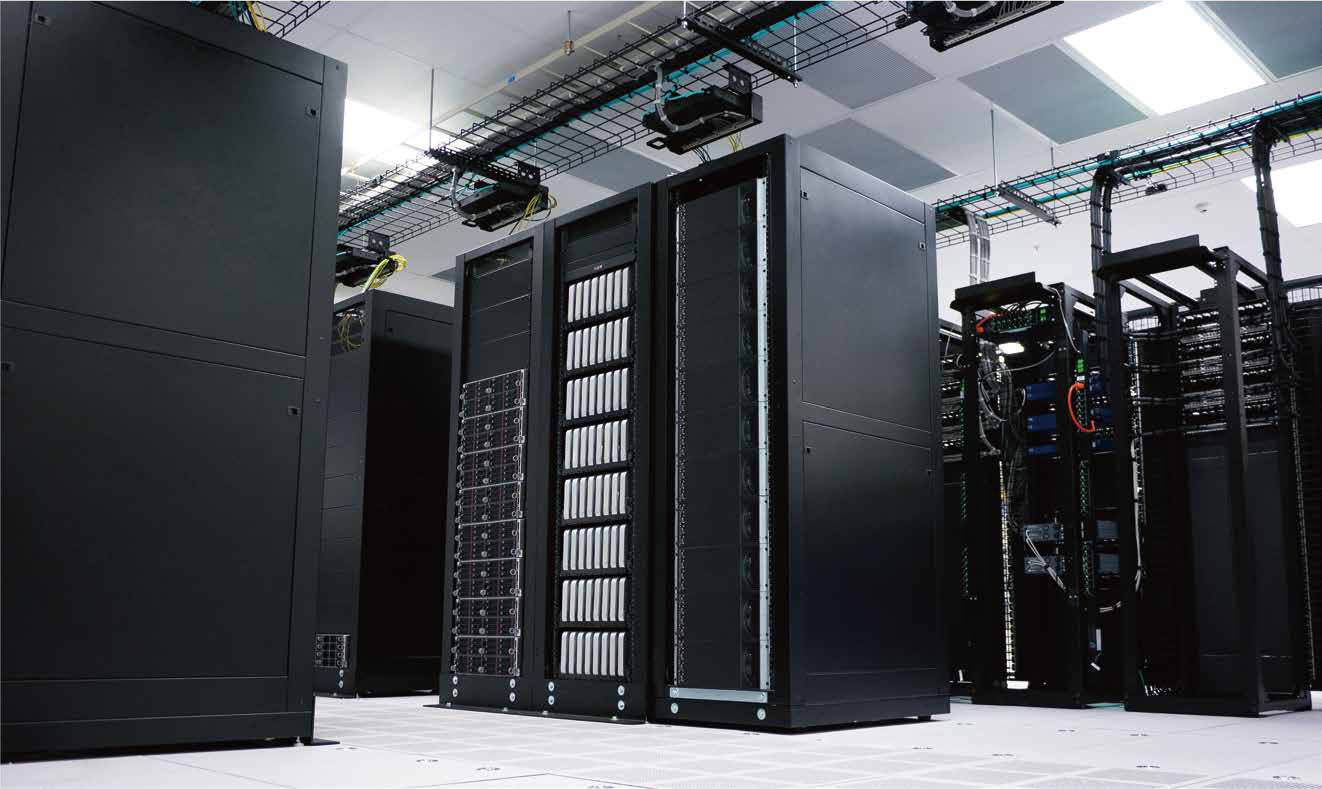

MTP patch cables are high-performance fiber optic cables designed for data center applications, offering reliable and efficient connectivity for high-speed data transmission.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Fiber Type | MMF |
| Fiber Type | SMF |
| Fiber Count | 8, 12, 24 |
| Connector Type | MTP |
| Insertion Loss | ≤0.35dB |
| Return Loss | ≥60dB |
| Operating Temperature | -40°C to +85°C |
| Tensile Strength | ≥100N |
| Outer Jacket Material | LSZH |
| Outer Jacket Material | PVC |
| Length | 1m, 2m, 3m, customizable |
| Wavelength Range | 850nm, 1310nm, 1550nm |
Applications
Key Features
Datasheet
