SFP/XFP/QSFP Programmer

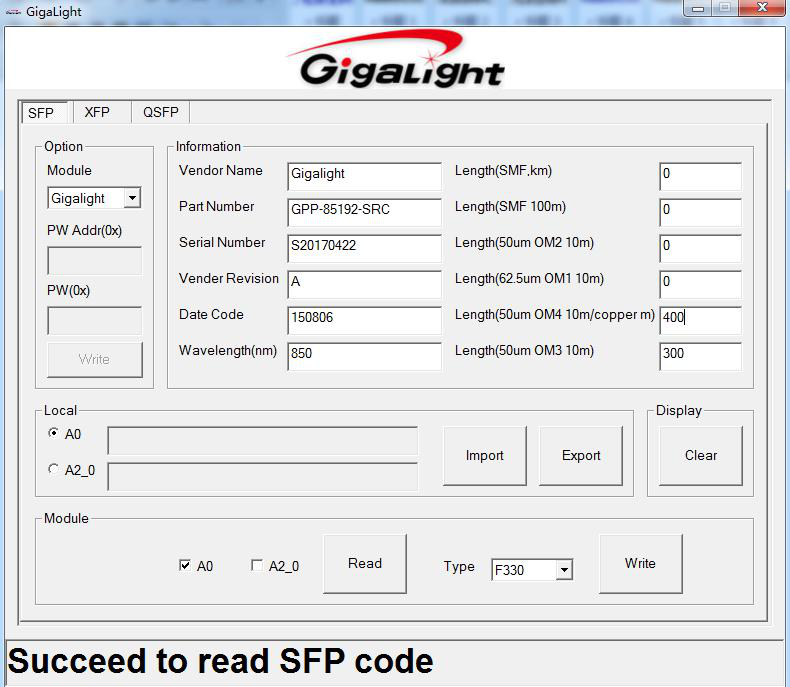

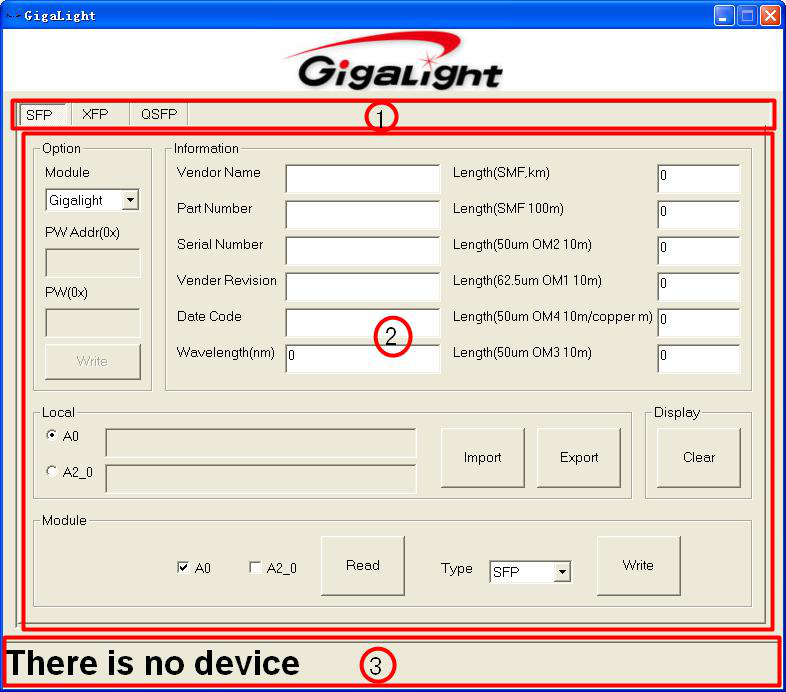

The SFP/XFP/QSFP Programmer is a compact and user-friendly device designed for reading and writing the EEPROM of SFP, SFP+, SFP28, XFP, QSFP, and QSFP28 modules. It features a graphical user interface (GUI) for easy operation and supports multiple operating systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 4.5-5.5V |
| Operating Case Temperature | 0-50°C |
| Storage Temperature | -10-70°C |
| Operating Humidity | 5-75% non-condensing |
| Physical Dimensions | 160(W)x110(D)x24.5(H)mm |
| Net Weight | 377g |
Applications
Key Features
Datasheet
Supplier Information
