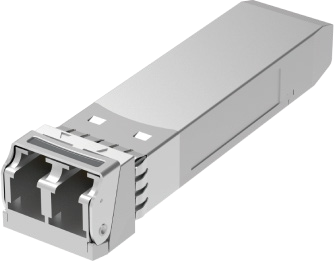

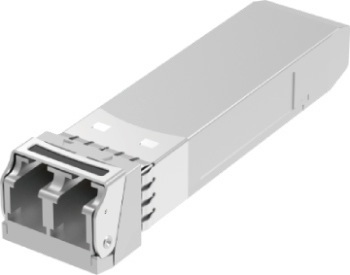

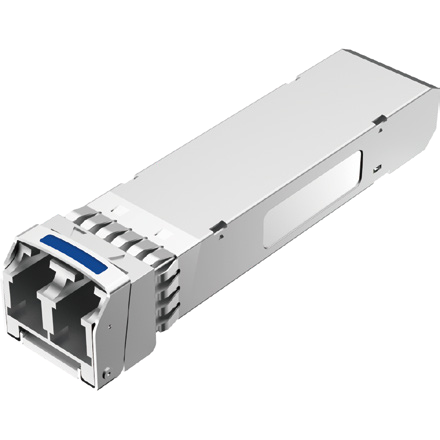

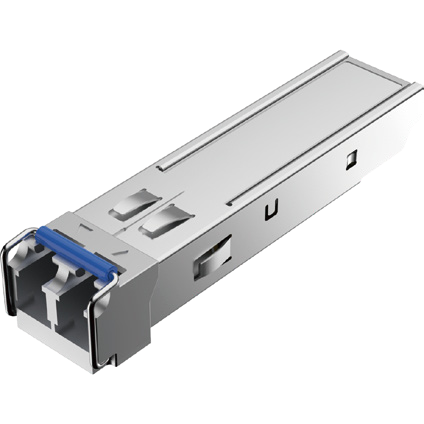

Rugged Transceivers 1G/10G
Gigalight's industrial-grade rugged transceivers are designed for harsh environments, offering anti-condensation, moisture-proof, and corrosion-resistant features. They are ideal for industries such as wastewater treatment, mining, and rubber manufacturing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Max Data Rate 1G SFP SX Rugged Transceivers | 1.25Gbps |
| LD 1G SFP SX Rugged Transceivers | 850nm VCSEL |
| PD 1G SFP SX Rugged Transceivers | PIN |
| Reach 1G SFP SX Rugged Transceivers | 550m (OM2) |
| P/N 1G SFP SX Rugged Transceivers | GC-SFP-1G-SX |
| Max Data Rate 1G SFP LX Rugged Transceivers | 1.25Gbps |
| LD 1G SFP LX Rugged Transceivers | 1310nm FP |
| PD 1G SFP LX Rugged Transceivers | PIN |
| Reach 1G SFP LX Rugged Transceivers | 10km |
| P/N 1G SFP LX Rugged Transceivers | GC-SFP-1G-LX |
| Max Data Rate 10G SFP+ SX Rugged Transceivers | 10.3125Gbps |
| LD 10G SFP+ SX Rugged Transceivers | 850nm VCSEL |
| PD 10G SFP+ SX Rugged Transceivers | PIN |
| Reach 10G SFP+ SX Rugged Transceivers | 200m (OM3) |
| P/N 10G SFP+ SX Rugged Transceivers | GC-SFP-10G-SR |
| Max Data Rate 10G SFP+ LR Rugged Transceivers | 10.3125Gbps |
| LD 10G SFP+ LR Rugged Transceivers | 1310nm DML |
| PD 10G SFP+ LR Rugged Transceivers | PIN |
| Reach 10G SFP+ LR Rugged Transceivers | 10km (OM4) |
| P/N 10G SFP+ LR Rugged Transceivers | GC-SFP-10G-LR |
Applications
Key Features
Datasheet
