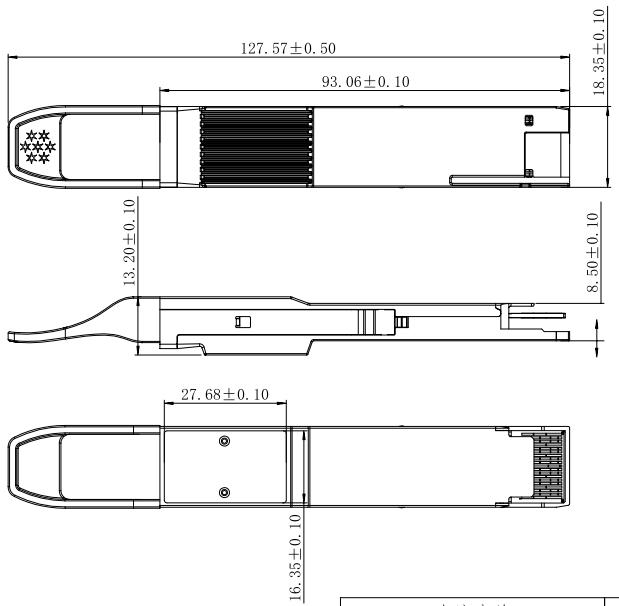

800G QSFPDD VR8 50m Optical Transceiver Module

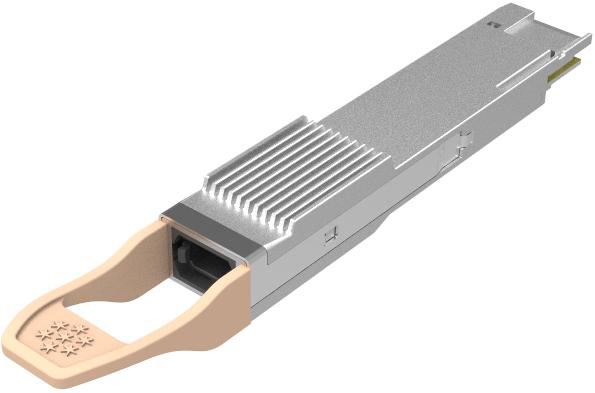

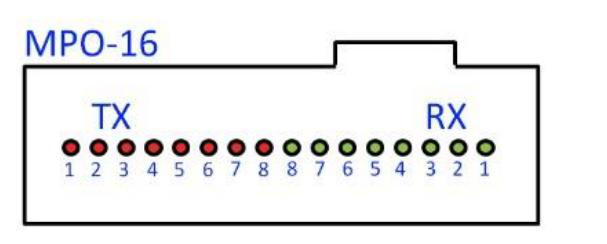

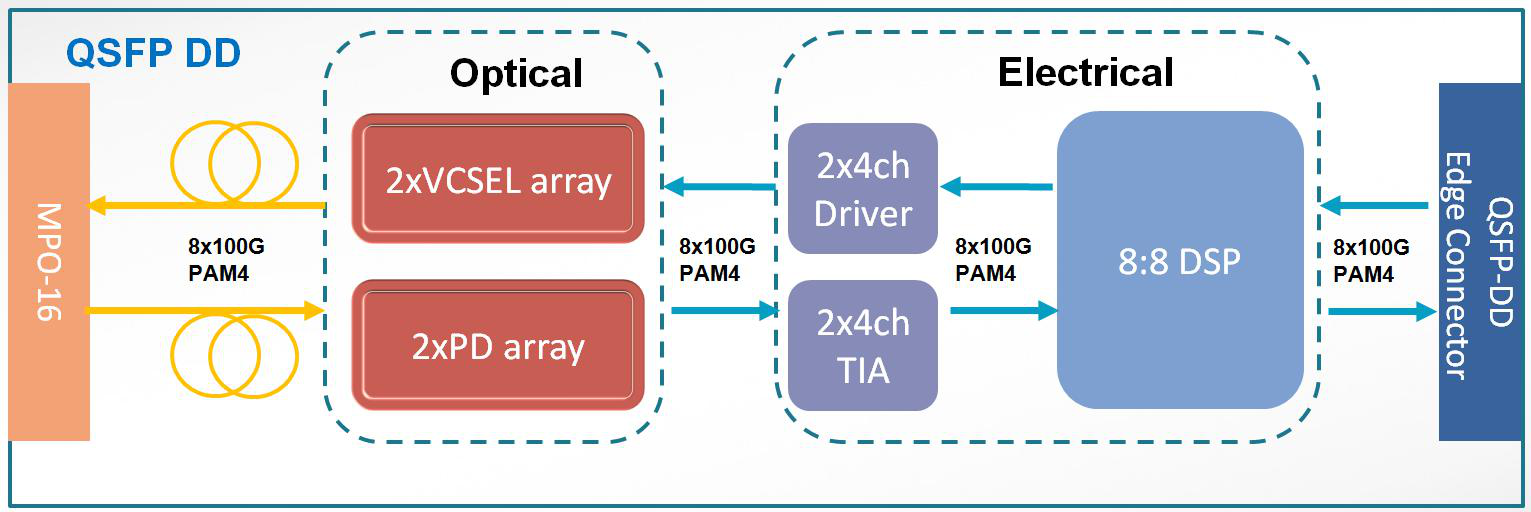

The Gigalight GQD-MPO801-VR8C is an eight-channel, pluggable, parallel, fiber-optic QSFPDD transceiver designed for 800 Gigabit Ethernet applications. It integrates eight data lanes in each direction with 8x53.125Gbps, supporting short-range multi-lane data communication and interconnection applications.
Save to Favorites
Overview

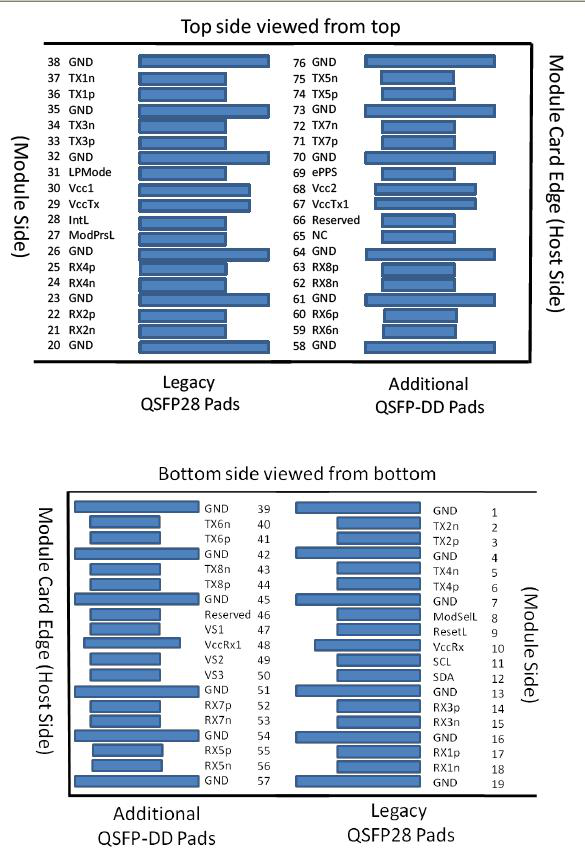

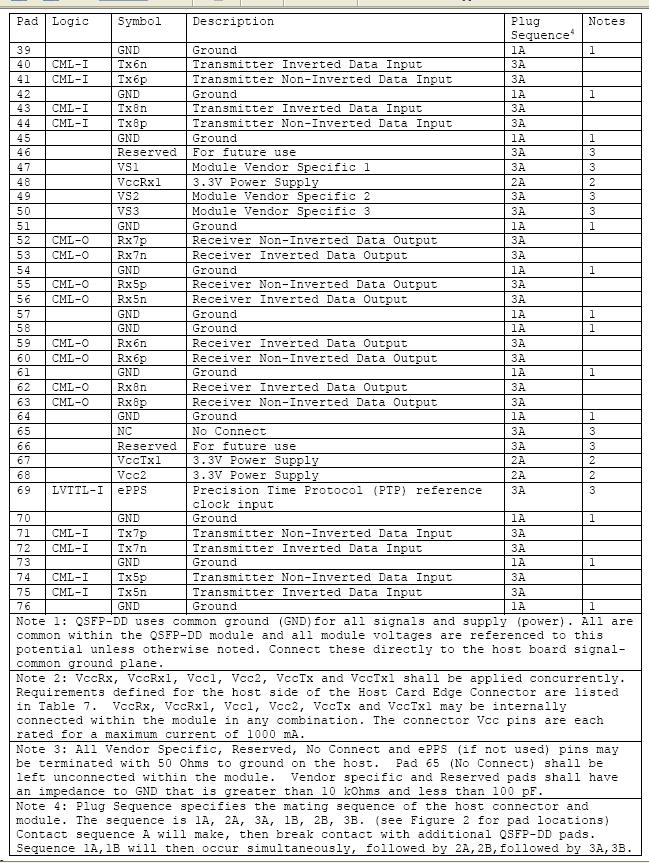

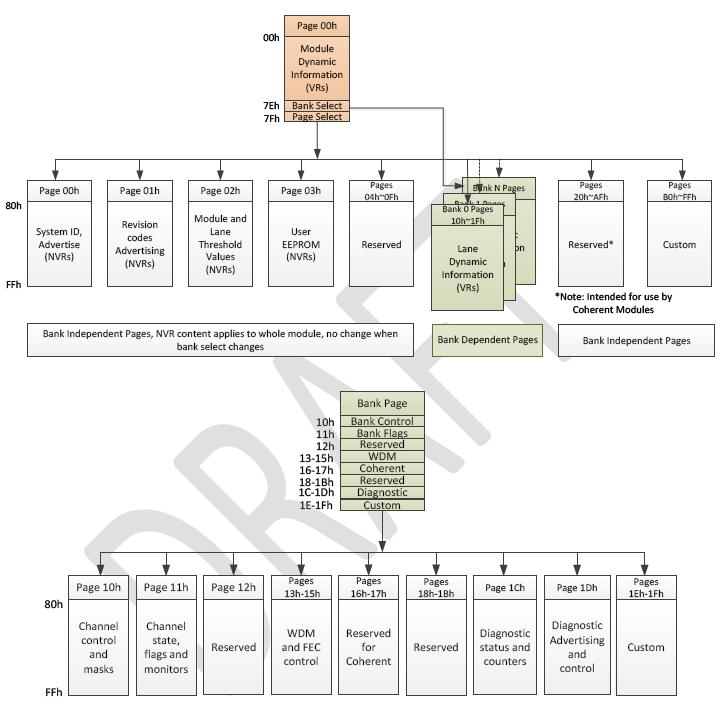

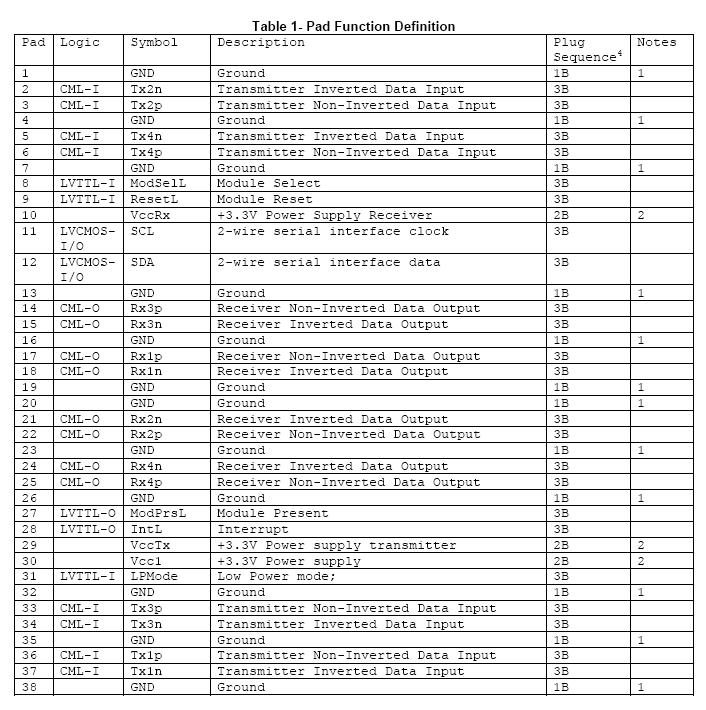

Specifications

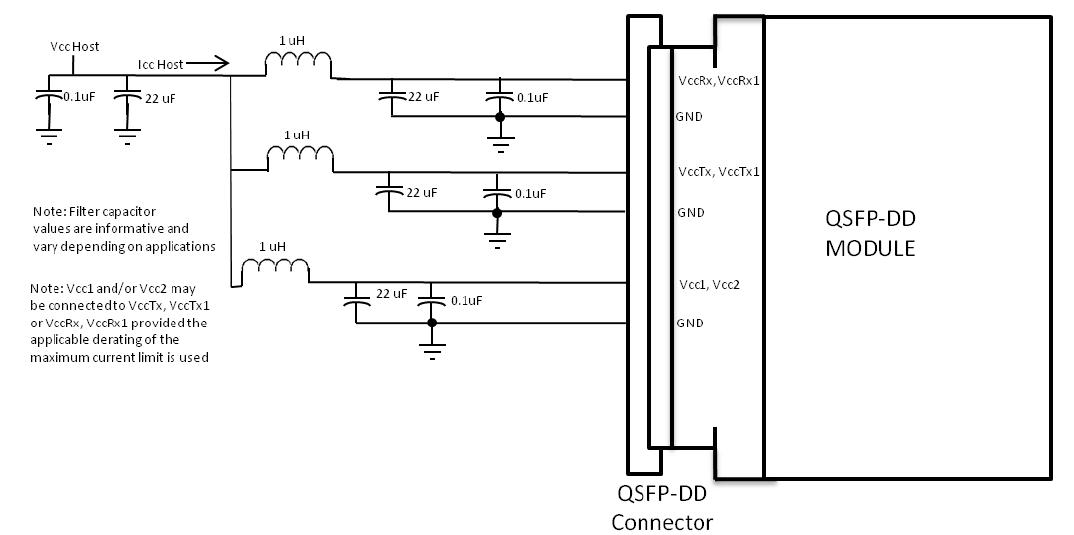

| Parameter | Value |
|---|---|
| Supply Voltage | 3.13-3.47V |
| Operating Case Temperature | 0-70°C |
| Data Rate Per Lane | 106.25Gbps |
| Humidity | 5-85% |
| Power Dissipation | 13-13.5W |
| Differential Input Impedance | 90-110ohm |
| Differential Output Impedance | 90-110ohm |
| Differential Input Voltage Amplitude | 400-900mVp-p |
| Differential Output Voltage | 850mVp-p |
| Bit Error Rate | 2.4E-4 |
| Input Logic Level High | 2.0V |
| Output Logic Level High | Vcc-0.5V |
| Output Logic Level Low | 0.4V |
| Centre Wavelength | 842-850-948nm |
| RMS Spectral Width | 0.65nm |
| Average Launch Power Each Lane | -4.6-4dBm |
| Optical Modulation Amplitude (OMA) | -2.6-3.5dBm |
| Transmitter and Dispersion Eye Closure for PAM4 (TDECQ) | 4.4dB |
| Extinction Ratio | 2.5dB |
| Average Launch Power of OFF Transmitter Each Lane | -30dBm |
| Receiver Sensitivity in OMAout | max(-4.4,TECQ6.2)dBm |
| Stressed Receiver Sensitivity in OMAout | -1.8dBm |
| Maximum Average Power at Receiver Each Lane | 4dBm |
| Minimum Average Power at Receiver Each Lane | -6.3dBm |
| Receiver Reflectance | -15dB |
| Los Assert | -15dBm |
| Los De-assert | -6.5dBm |
| Los Hysteresis | 0.5dB |
| Transceiver Case Temperature | -3-+3°C |
| Supply Voltage Monitor Absolute Error | -0.1-0.1V |
| Channel RX Power Monitor Absolute Error | -2-+2dB |
| Channel Bias Current Monitor | -10%-+10% |
| Channel TX Power Monitor Absolute Error | -2-+2dB |
