GQD-MPO401-SR8CD

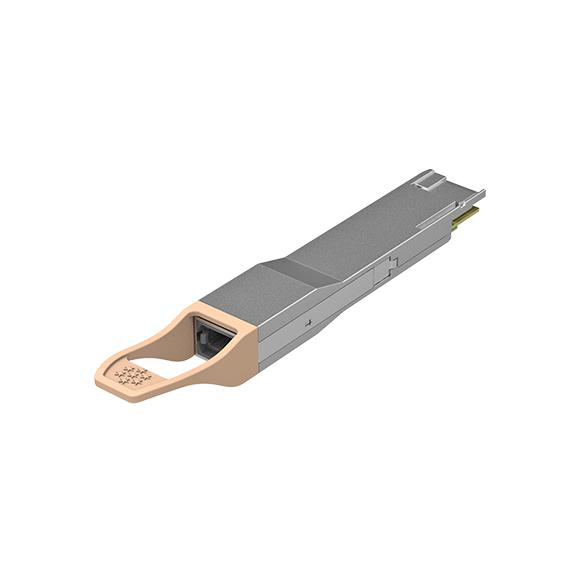

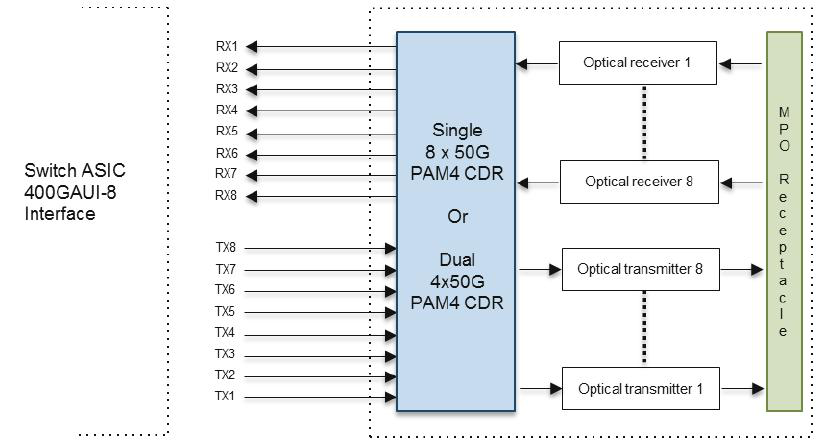

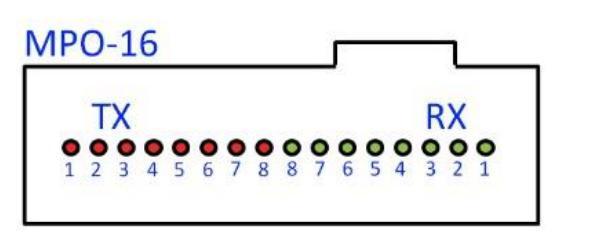

The Gigalight GQD-MPO401-SR8CD is an eight-channel, pluggable, parallel, fiber-optic QSFP double density transceiver designed for 2x200 Gigabit Ethernet applications. It integrates eight data lanes in each direction with 8x26.5625GBd, supporting multimode fiber systems with a nominal wavelength of 850nm.
Save to Favorites
Overview

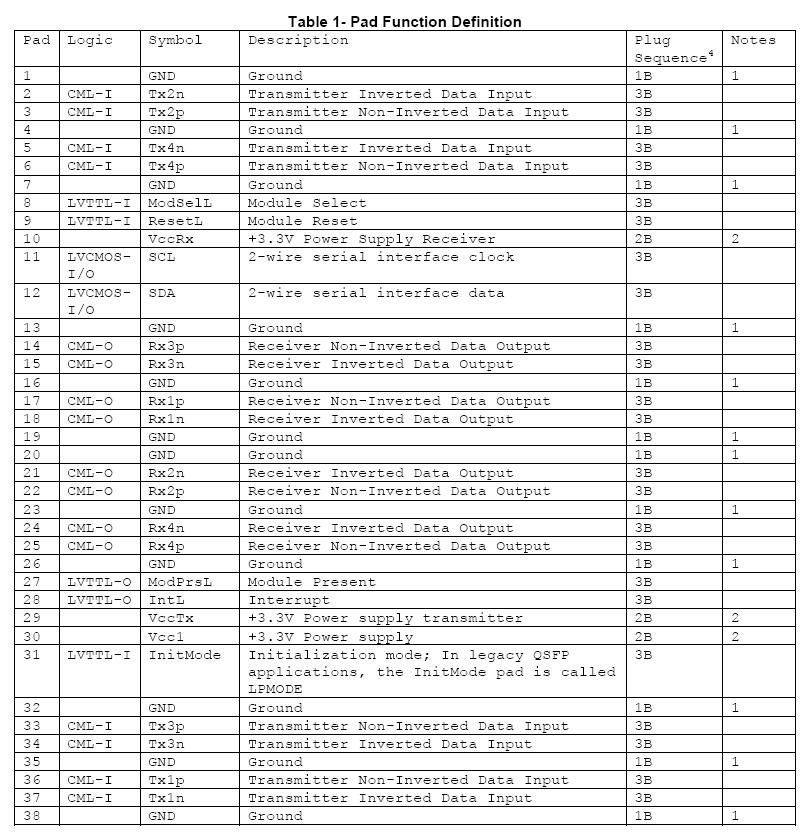

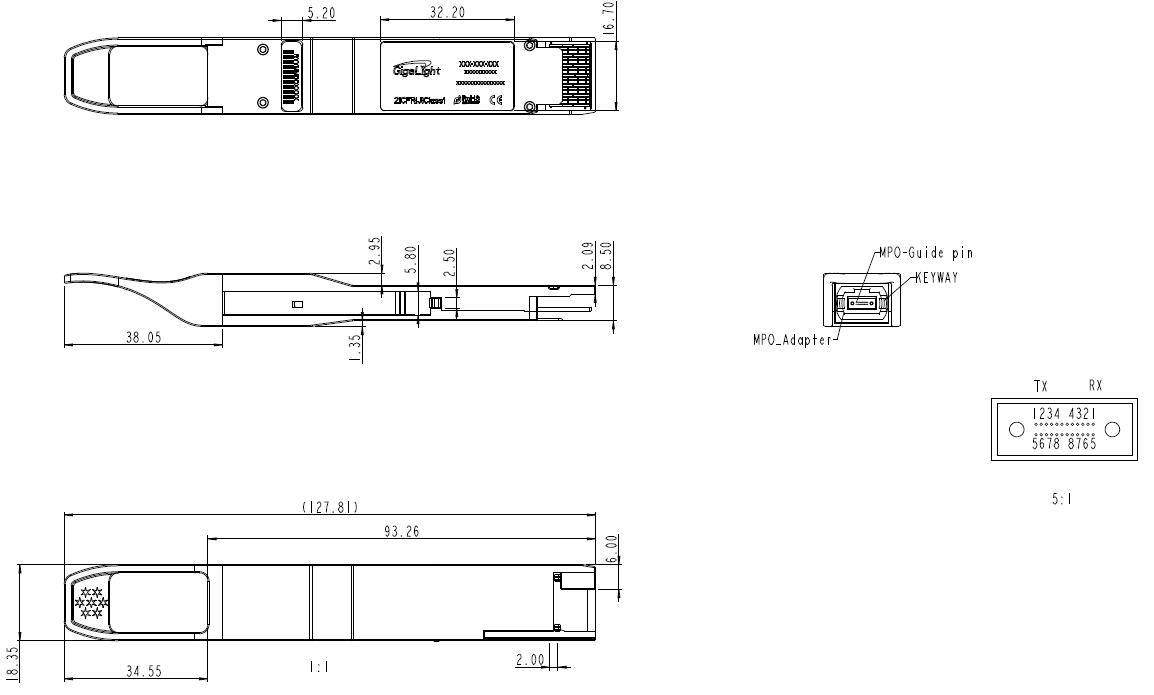

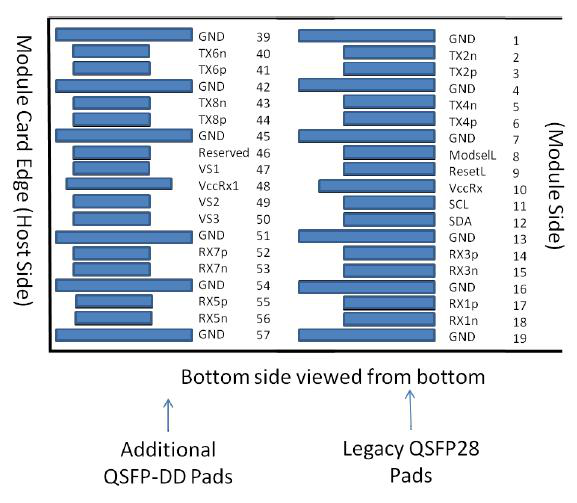

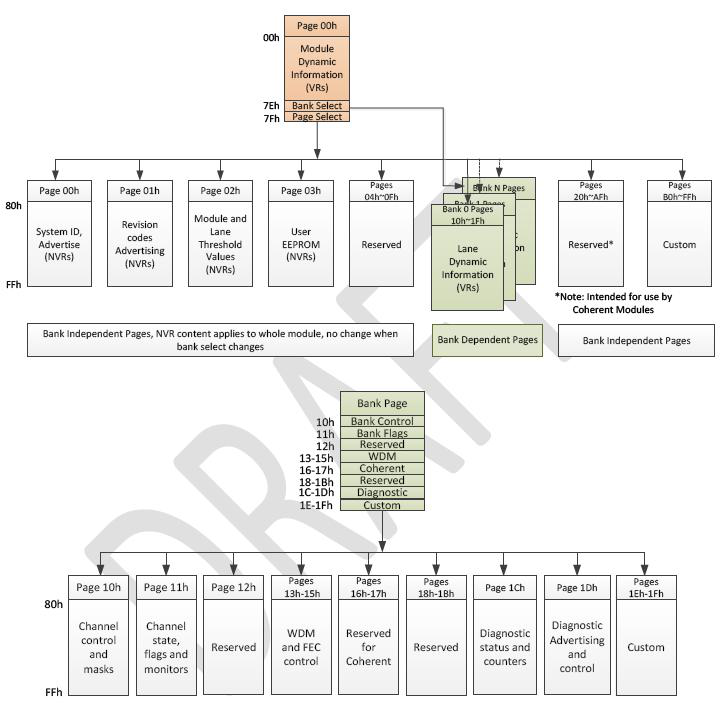

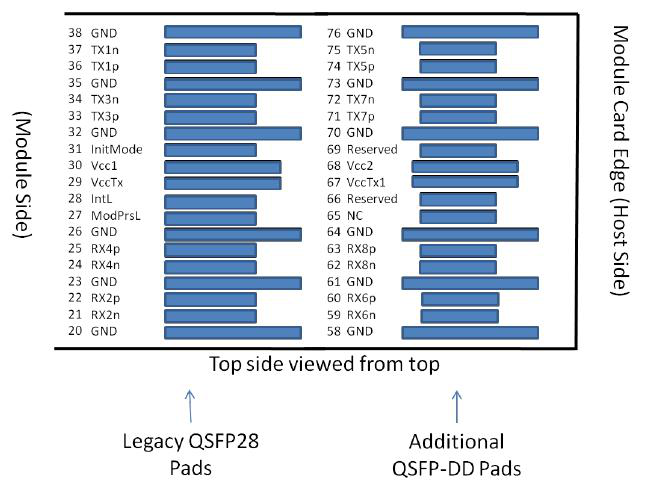

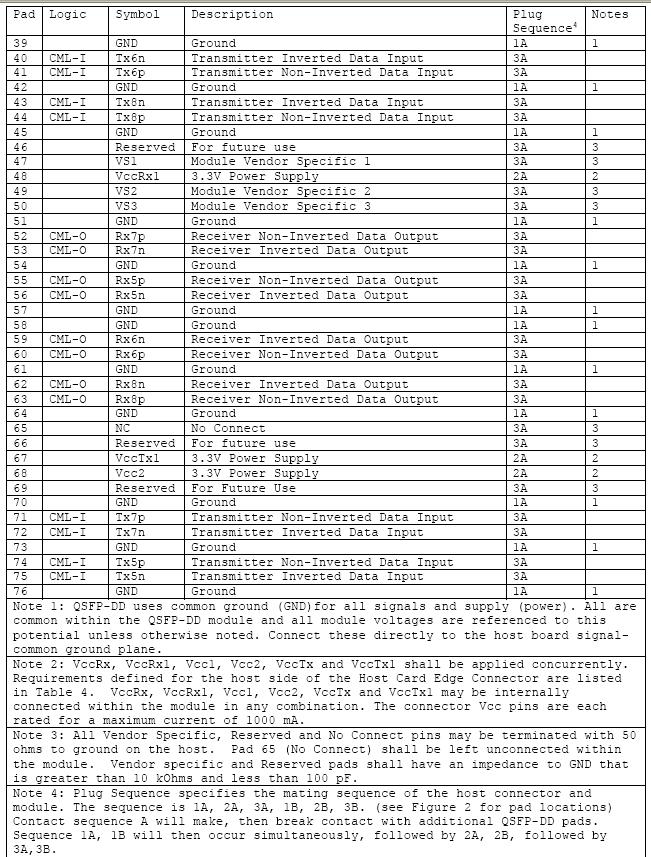

Specifications

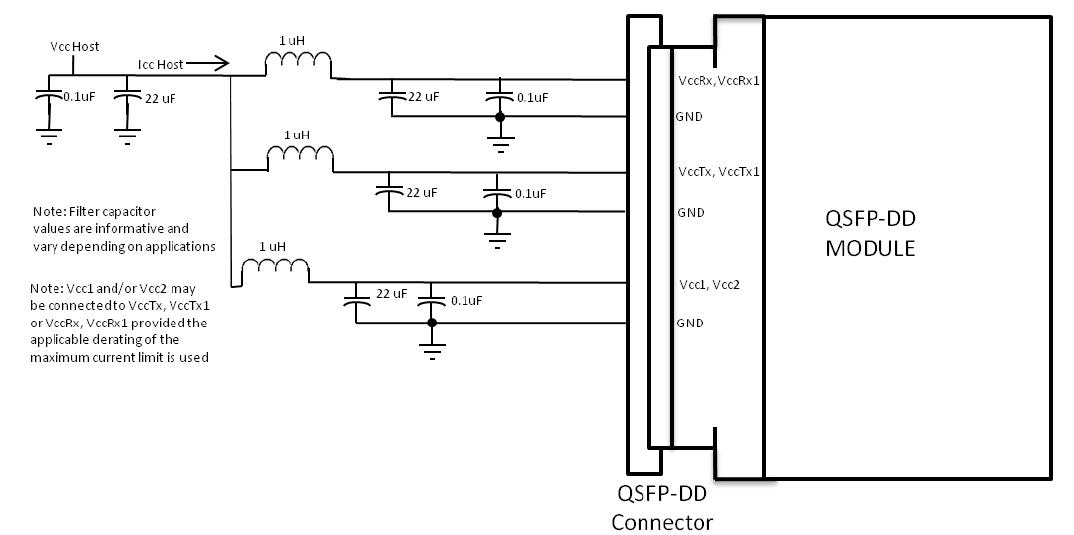

| Parameter | Value |
|---|---|
| Supply Voltage | -0.3~3.6V |
| Input Voltage | -0.3~Vcc+0.3V |
| Storage Temperature | -20~85°C |
| Case Operating Temperature | 0~70°C |
| Humidity(non-condensing) | 5~95% |
| Recommended Supply Voltage | 3.13~3.47V |
| Recommended Operating Case Temperature | 0~70°C |
| Recommended Data Rate Per Lane | 26.5625GBd |
| Recommended Humidity | 5~85% |
| Recommended Power Dissipation | 7.8~8.5W |
| Differential Input Impedance | 90~100~110ohm |
| Differential Output Impedance | 90~100~110ohm |
| Differential Input Voltage Amplitude | 1000mVp-p |
| Differential Output Voltage Amplitude | 900mVp-p |
| Skew | 300ps |
| Bit Error Rate | 2.4E-4 |
| Near-end Eye Width at 10^-6 probability(EW6) | 0.265UI |
| Near-end Eye Height at 10^-6 probability(EH6) | 70mV |
| Far-end Eye Width at 10^-6 probability(EW6) | 0.20UI |
| Far-end Eye Height at 10^-6 probability(EH6) | 30mV |
| Near-end Eye Linearity | 0.85 |
| Centre Wavelength | 840~850~860nm |
| RMS Spectral Width | 0.6nm |
| Average launch power, each lane | -6.5~-4dBm |
| Optical Modulation Amplitude (OMA), each Lane | -4.5~3dBm |
| Transmitter and dispersion eye closure (TDEC), each lane | 4.5dB |
| Extinction Ratio | 3dB |
| Average launch power of OFF transmitter, each lane | -30dBm |
| Receiver Sensitivity in OMA | -6.5dBm |
| Stressed Receiver Sensitivity in OMA | -3dBm |
| Maximum Average Power at Receiver, Each Lane Input, Each Lane | 4dBm |
| Minimum Average power at receiver, each lane | -7.9dBm |
| Receiver Reflectance | -12dB |
| Los Assert | -10dBm |
| Los De-assert | -8.5dBm |
| Los Hysteresis | 0.5dB |
