32GFC SFP28 AOC GSS-MDO280-xxxC

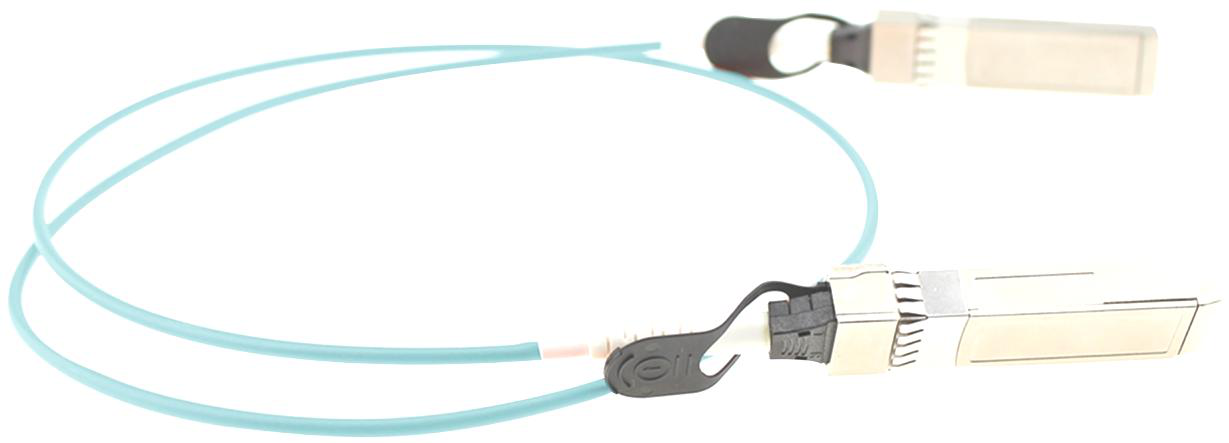

Gigalight SFP28 Active Optical Cables are direct-attach fiber assemblies with SFP28 connectors. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks. The GSS-MDO280-XXXC is a single-channel, pluggable, fiber-optic SFP28 for 32GFC applications, designed for short-range data communication and interconnect applications operating at 28.05Gbps up to 70m using OM3 fiber or 100m using OM4 fiber with FEC.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Data Rate | 28.05Gbps |
| Centre Wavelength | 840-860nm |
| Spectral Width (-20dB) | 0.6nm |
| Average Output Power | -8.4 to 2.4dBm |
| Optical Power OMA | -6.4 to 3dBm |
| Extinction Ratio | 2dB |
| Differential data input swing | 40mV |
| Input differential impedance | 90-110Ω |
| TX Disable | 0 to Vcc |
| TX Fault | 0 to Vcc |
| Receiver Sensitivity (OMA) | -10dBm |
| Receiver Sensitivity in OMA (32GFC,28.05Gbps) | -5.2dBm |
| Receiver Sensitivity in OMA (OTU4,27.95Gbps) | -5.2dBm |
| Receiver Power (OMA) | -13 to -30dBm |
| Differential data output swing | 300-850mV |
| Operating Case Temperature | 0°C to +70°C |
| Power Supply Voltage | 3.13-3.47V |
| Power Supply Current | 300mA |
| Fiber Length on OM3 MMF | 70m |
| Fiber Length on OM4 MMF | 100m |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 5%-85% |
Applications
Key Features
Datasheet
