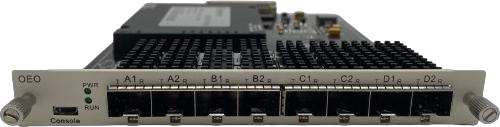

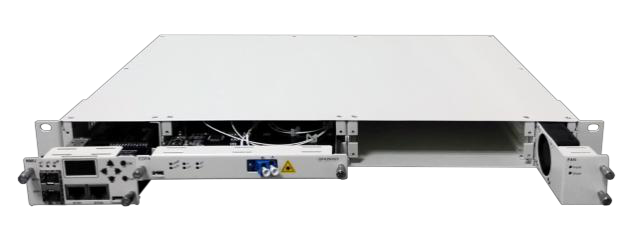

25G OEO Card
The 25G OEO card is an optical signal regeneration conversion equipment based on the principle of O-E-O. It supports signal wavelength conversion, single-mode conversion, relay amplification, and signal regeneration. It is applicable to 25G/100G optical communication data and transmission fields.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Working temperature | -10~60°C |
| Storage Temperature | -40~85°C |
| Relative Humidity | 5%~95% No condensation |

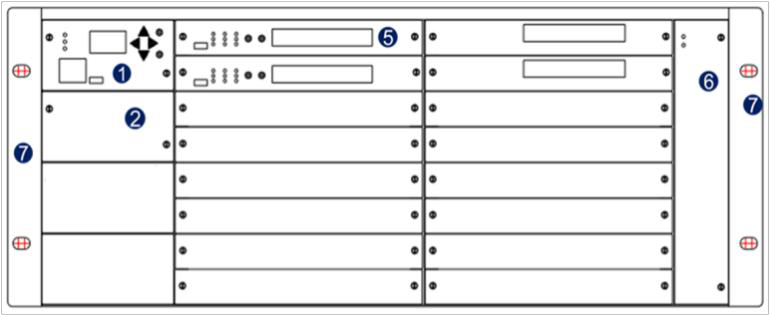

| Size (1U) | 482.6Wx300Dx44.5H |
| Size (2U) | 482.6Wx300Dx86H |
| Size (4U) | 482.6Wx300Dx176H |
| Power Supply (AC) | 100-240,50-60Hz |
| Power Supply (DC) | 36-72 |
| Consumption (1U) | <50W |
| Consumption (2U) | <100W |
| Consumption (4U) | <200W |
| Access signal rate | 25.5~28.1Gbps |
| Signal mode | SM/MM |
| Optical Transceiver Package | SFP28 |
| Optical Transceiver Slot Numbers | 8 |
| Two-way Service Channel Numbers | 4 |
| Extinction Ratio | ≥6dB |
| SMSR | >30dB |
| Consumption | <20W |
Applications
Key Features
Datasheet
