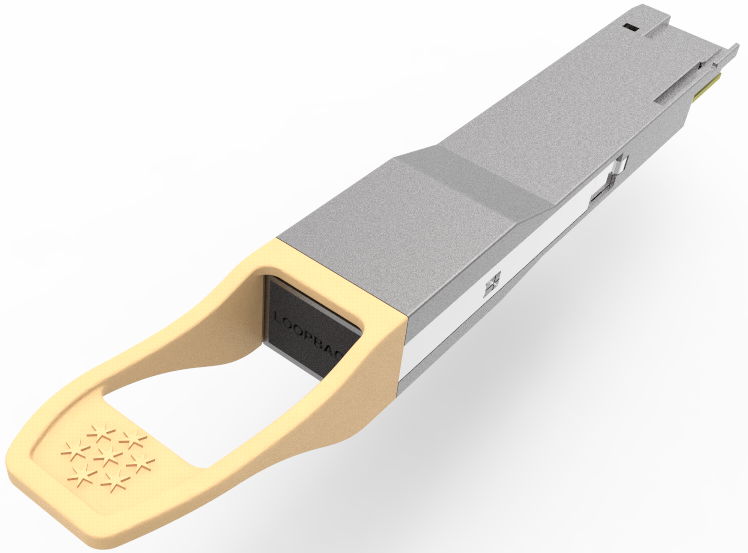

200G QSFP-DD Active Electrical Loopback Module

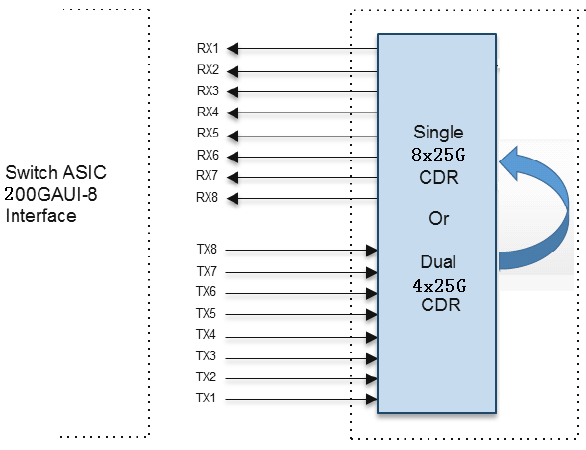

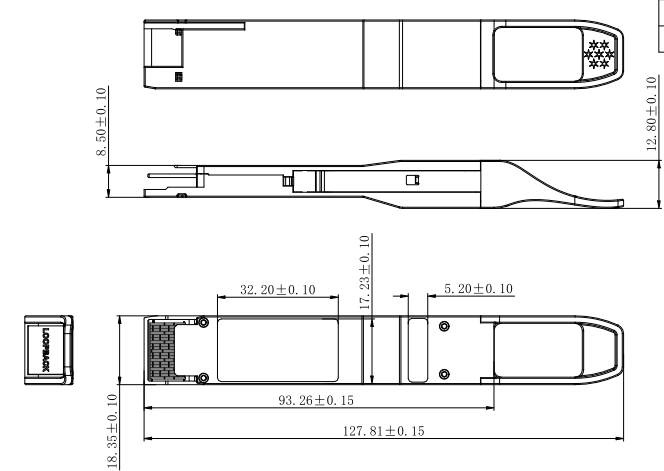

GIGALIGHT's GQD-MPO201-LP8C QSFP-DD active electrical loopback is used for testing 200G QSFP-DD transceiver ports in board level test. By substituting for a full-featured QSFP-DD transceiver, the electrical loopback provides a cost-effective low loss method for QSFP-DD port testing. The GQD-MPO201-LP8C is packaged in a standard MSA housing compatible with all QSFP-DD ports. Transmit data from the host is electrically routed (internal to the loopback module) to the receive data outputs and back to the host. Since the loopback module does not contain laser diodes, photodiodes, laser driver or transimpedance amplifier chips, etc., it provides an economical way to exercise QSFP-DD ports during R&D validation, production testing and field testing.
Save to Favorites

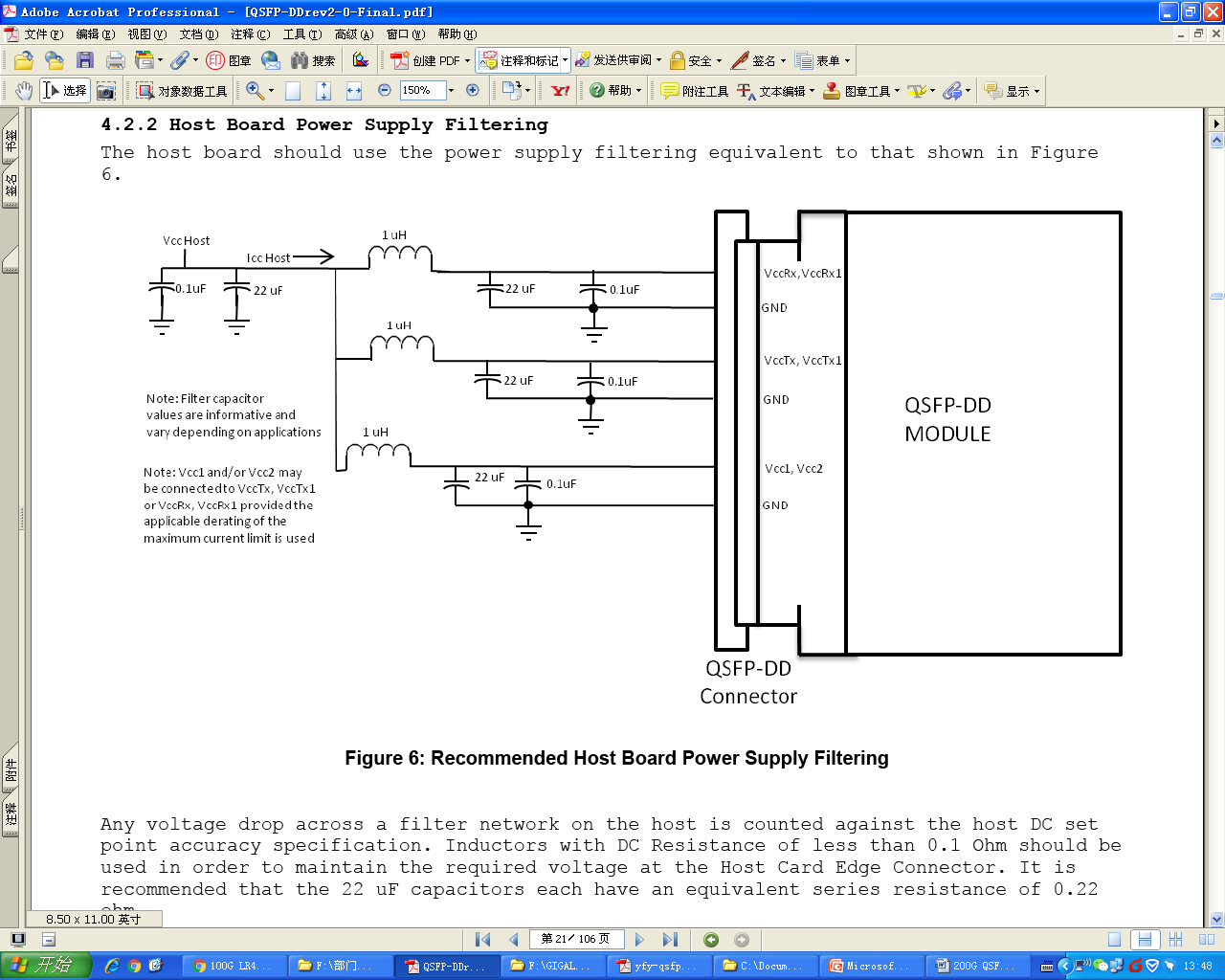

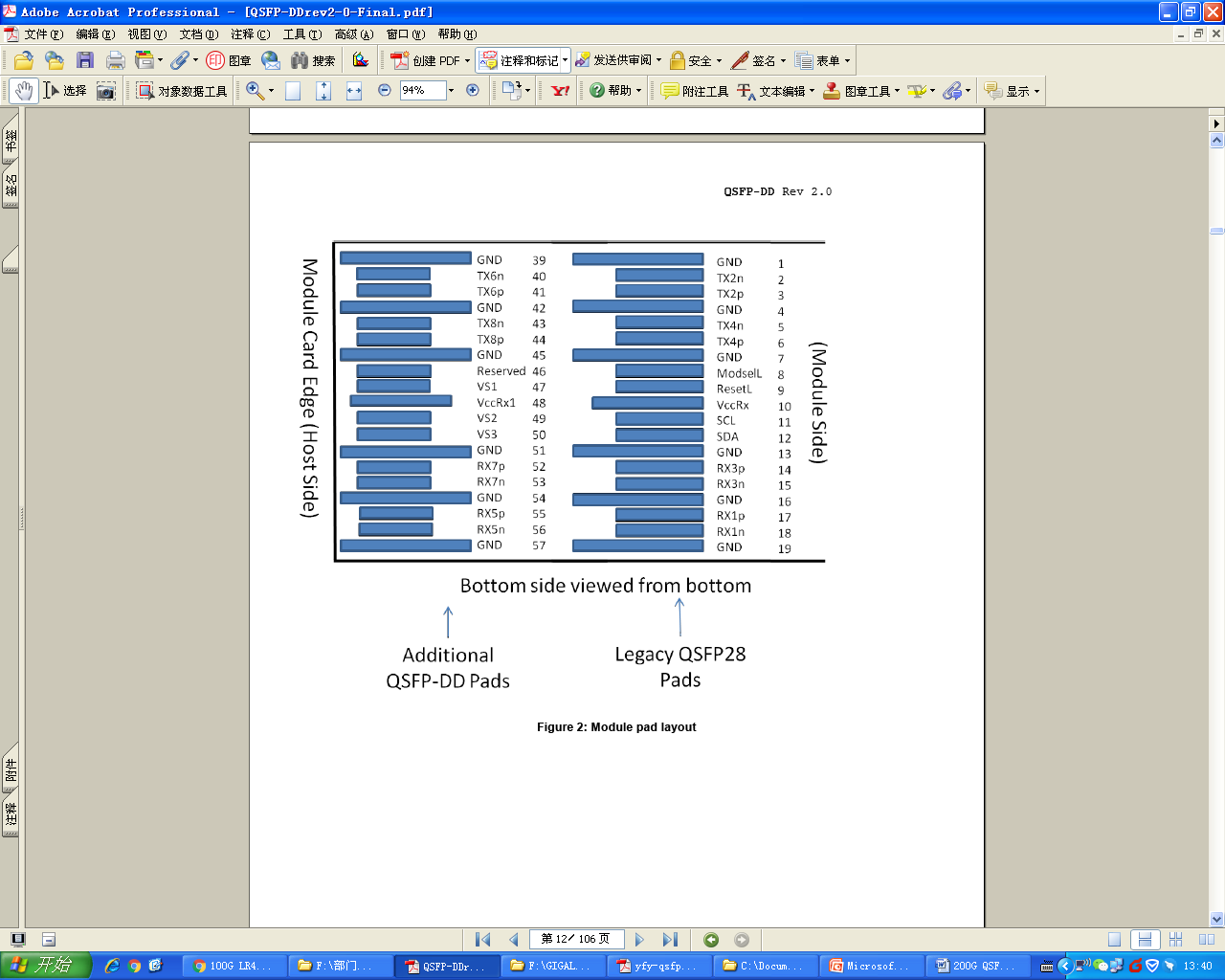

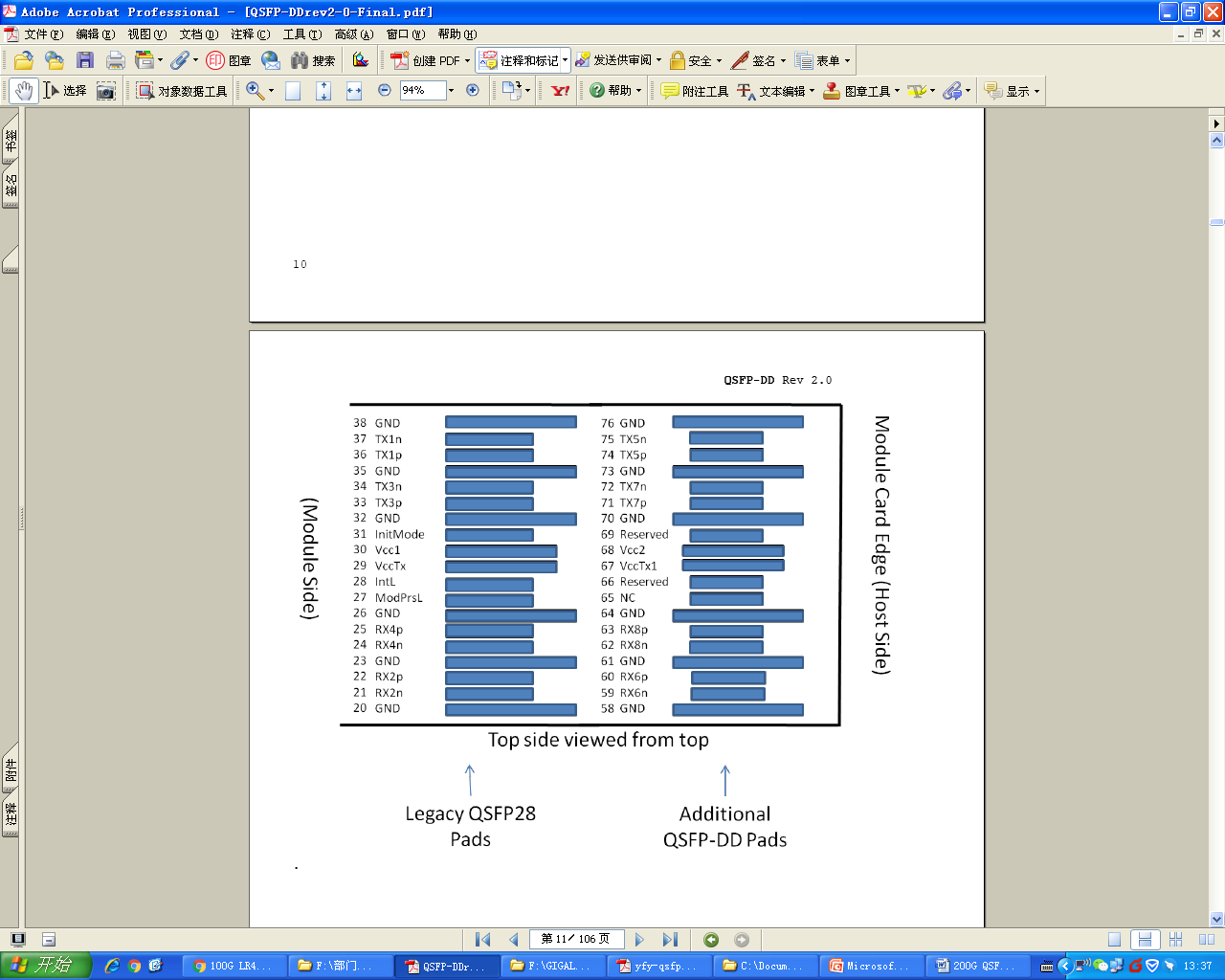

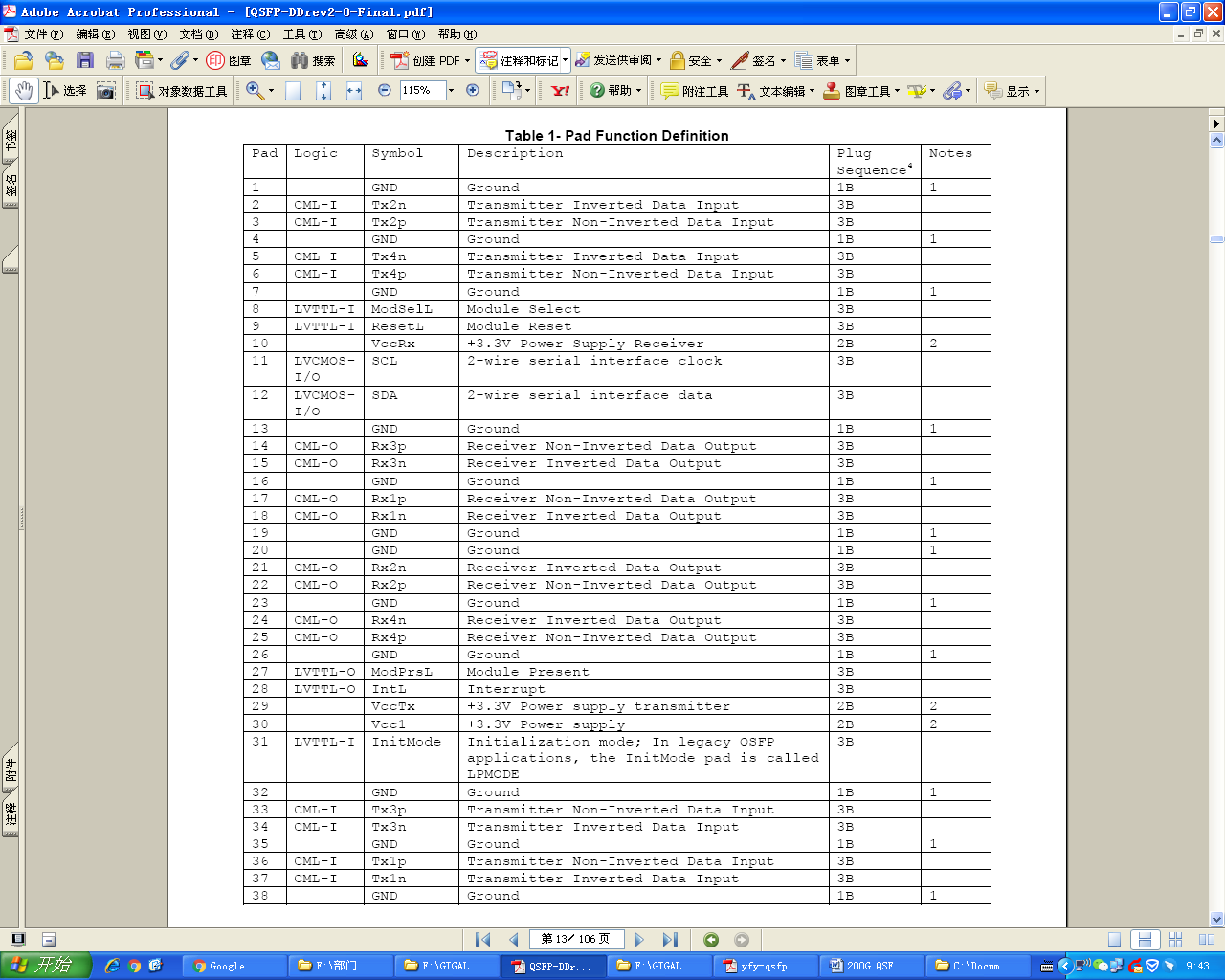

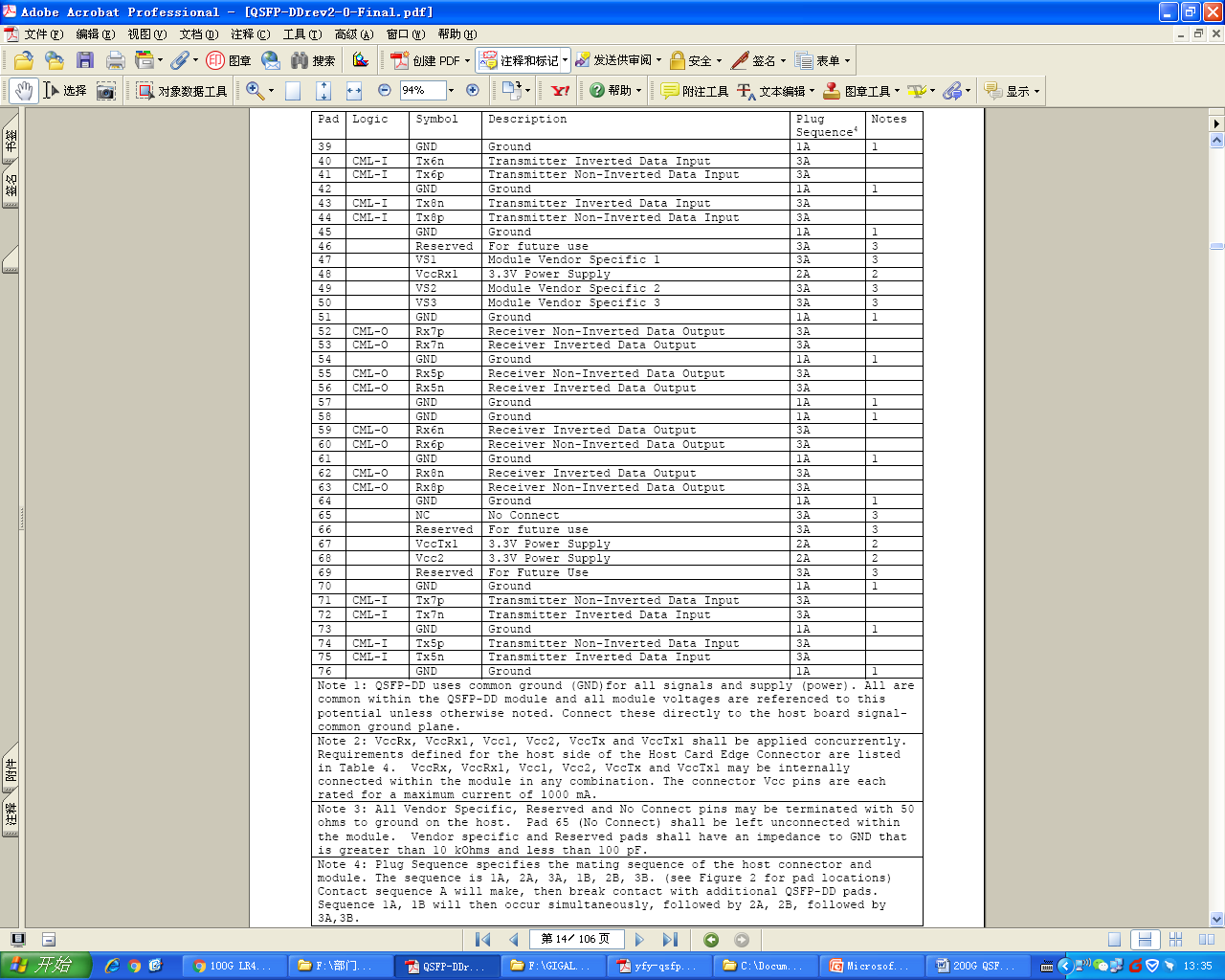

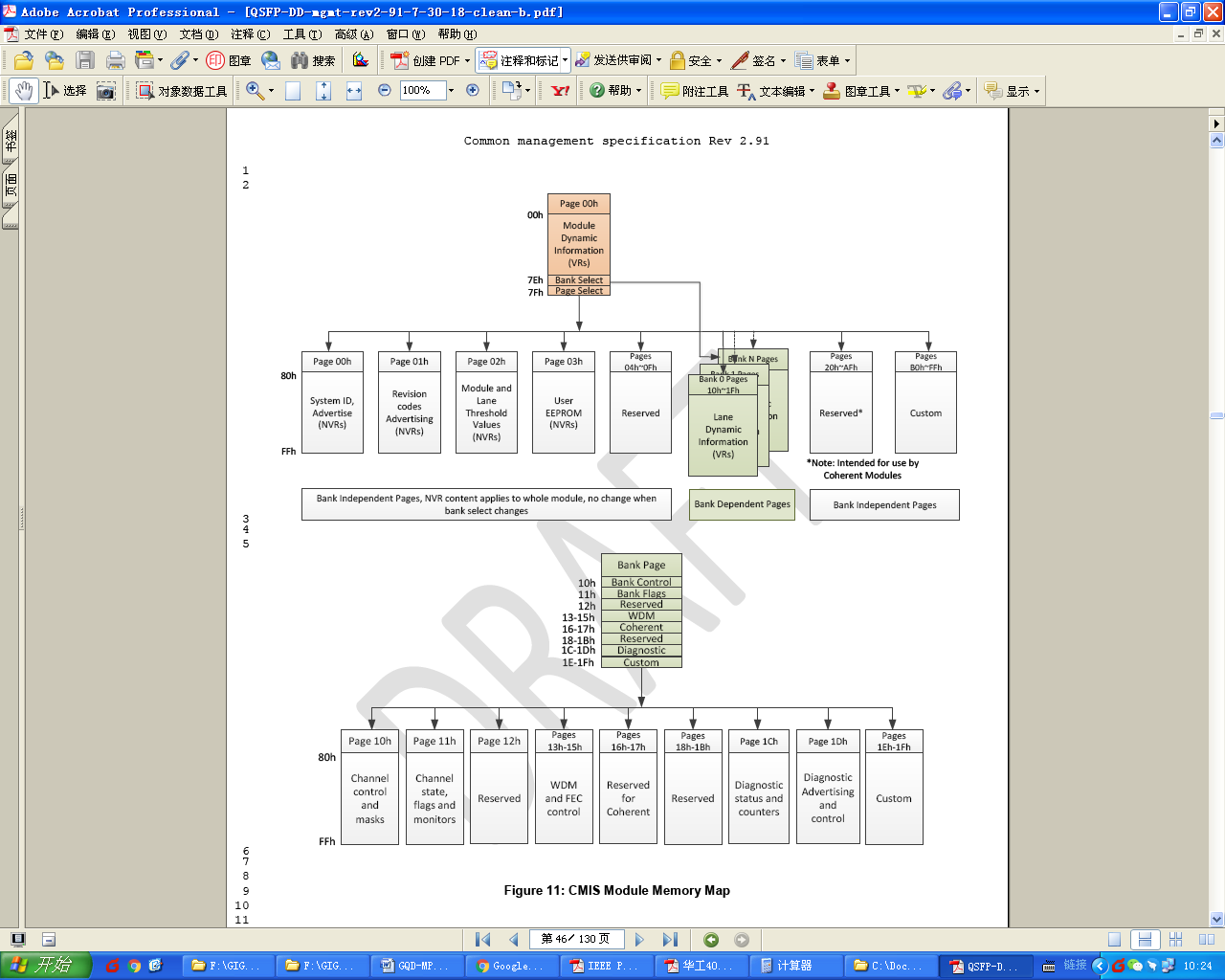

Overview
Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 3.13-3.47V |
| Operating Case Temperature | 0-70°C |
| Data Rate Per Lane | 25.78125Gbps |
| Humidity | 5-85% |
| Power Dissipation | <5W |
| Differential Input Impedance | 90-100Ω |
| Differential Output Impedance | 90-110Ω |
| Differential Input Voltage Amplitude | 300-1100mVpp |
| Differential Output Voltage Amplitude | 300-900mVpp |
| Bit Error Rate | E-12 |
| Input Logic Level High | 2.0-VccV |
| Input Logic Level Low | 0-0.8V |
| Output Logic Level High | Vcc-0.5V |
| Output Logic Level Low | 0-0.4V |
| Storage Temperature | -40-85°C |
| Humidity (non-condensing) | 5-95% |
