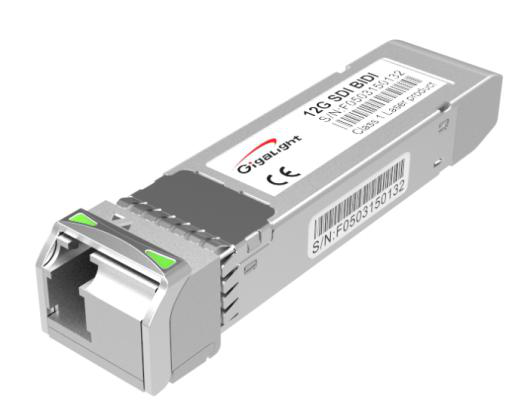

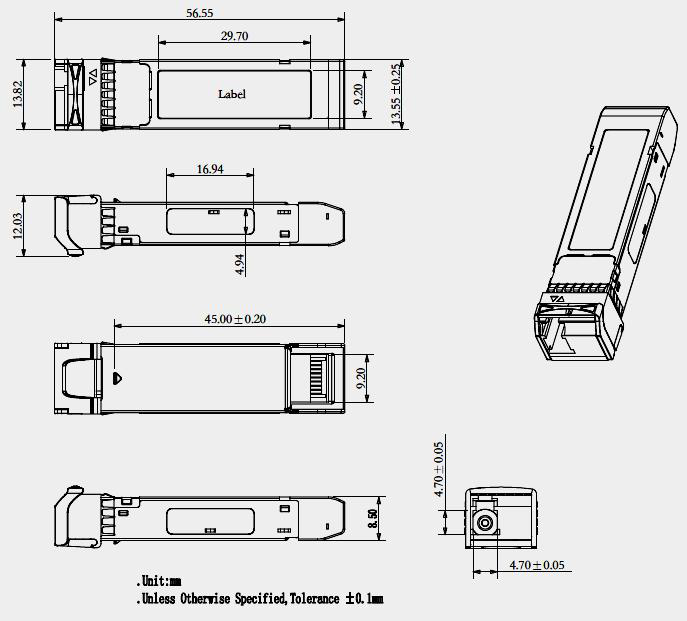

12Gbps Video SFP Optical Transceiver, 20km Reach GHB-XX12GL-L2CDM
Gigalight's Video transceiver is designed to transmit/receive data rates from 50Mbps to 11.88Gbps, compliant with SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST 424 (3G SDI), ST 292-1 (HD-SDI), and ST 259 (SD-SDI). Gigalight's Video transceiver supports SDI pathological patterns signals. The transceiver includes three sections: a DFB laser, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), a Reclocker, and a MCU controller. The transceiver is compliant with SFP Multi-Source Agreement (MSA).
Save to Favorites
Overview
Specifications

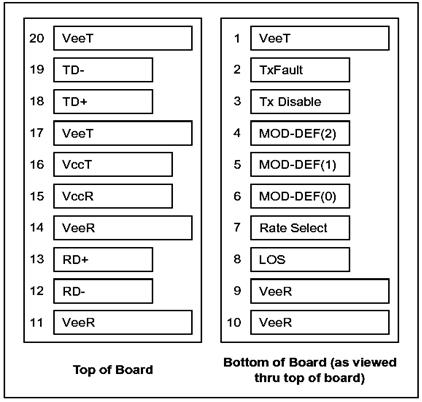

| Parameter | Value |
|---|---|
| Supply Voltage | -0.5~4V |
| Storage Temperature | 0~+85°C |
| Operating Humidity | 5~85% |
| Operating Case Temperature | 0~+70°C |
| Power Supply Voltage | 3.13~3.47V |
| Power Supply Current | 280~400mA |
| Data Rate | 12Gbps |
| Center Wavelength | 1260~1280nm (GHB-2612GL-L2CDM), 1320~1340nm (GHB-6212GL-L2CDM) |
| Spectral Width (-20dB) | 1nm |
| Side Mode Suppression Ratio (SMSR) | 30dB |
| Average Output Power | -3~1dBm |
| Extinction Ratio (ER) | 3.5dB |
| Data Input Swing Differential (VIN) | 400~1000mV |
| Input Differential Impedance (ZIN) | 90~110Ω |
| Rise/Fall Time (20%~80%) | 135ps (GHB-2612GL-L2CDM), 80ps (GHB-6212GL-L2CDM) |
| Timing Jitter | 0.2UI (SD-SDI), 1UI (HD-SDI), 2UI (3G-SDI), 4UI (6G-SDI), 8UI (12G-SDI) |
| Output Jitter | 0.2UI (SD-SDI), 0.2UI (HD-SDI), 0.3UI (3G-SDI), 0.3UI (6G-SDI), 0.3UI (12G-SDI) |
| Alignment Jitter | 0.2UI (SD-SDI), 0.2UI (HD-SDI), 0.3UI (3G-SDI), 0.3UI (6G-SDI), 0.3UI (12G-SDI) |
| TX Disable Voltage | 2.0V (Disable), 0.8V (Enable) |
| TX Fault Voltage | 2.0V (Fault), 0.8V (Normal) |
| Receiver Center Wavelength | 1260~1280nm (GHB-2612GL-L2CDM), 1320~1340nm (GHB-6212GL-L2CDM) |
| Receiver Sensitivity @11.88Gbps | -11dBm |
| Receiver Sensitivity @5.94Gbps | -13dBm |
| Receiver Sensitivity @2.97Gbps | -13dBm |
| Receiver Overload | 1dBm |
| LOS De-Assert (LOSD) | -18dBm |
| LOS Assert (LOSA) | -28dBm |
| LOS Hysteresis (LOSH) | 1~4dB |
| Data Output Swing Differential (VOUT) | 400~800mV |
| LOS High | 2.0V |
| LOS Low | 0.8V |
| TX Disable Negate Time (TON) | 1ms |
| TX Disable Assert Time (TOFF) | 10μs |
| Time to Initialize, including Reset of TX Fault (TINIT) | 300ms |
| TX Fault Assert Time (TFAULT) | 100μs |
| TX Disable To Reset (TRESET) | 10μs |
| Serial ID Clock Rate (FSERIAL_CLOCK) | 100kHz |
| MOD_DEF (0:2)-High (VH) | 2V |
| MOD_DEF (0:2)-Low (VL) | 0.8V |
