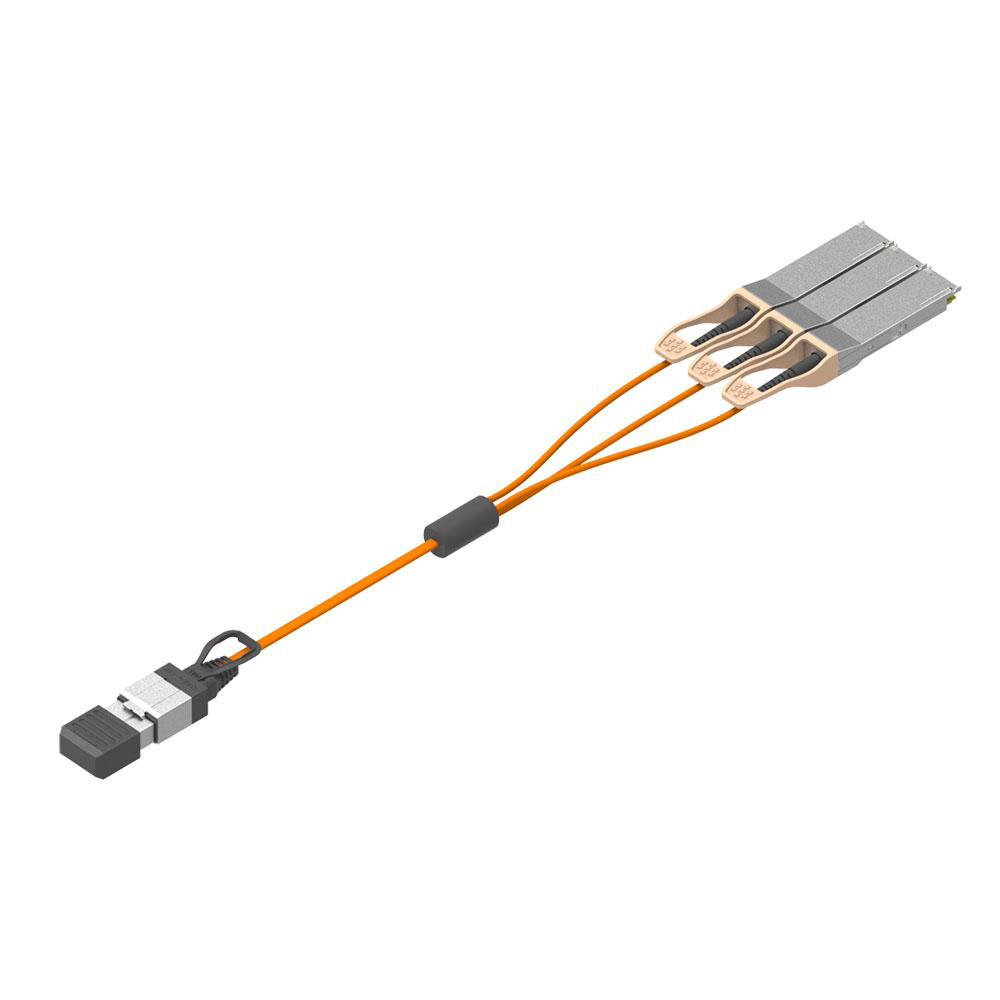

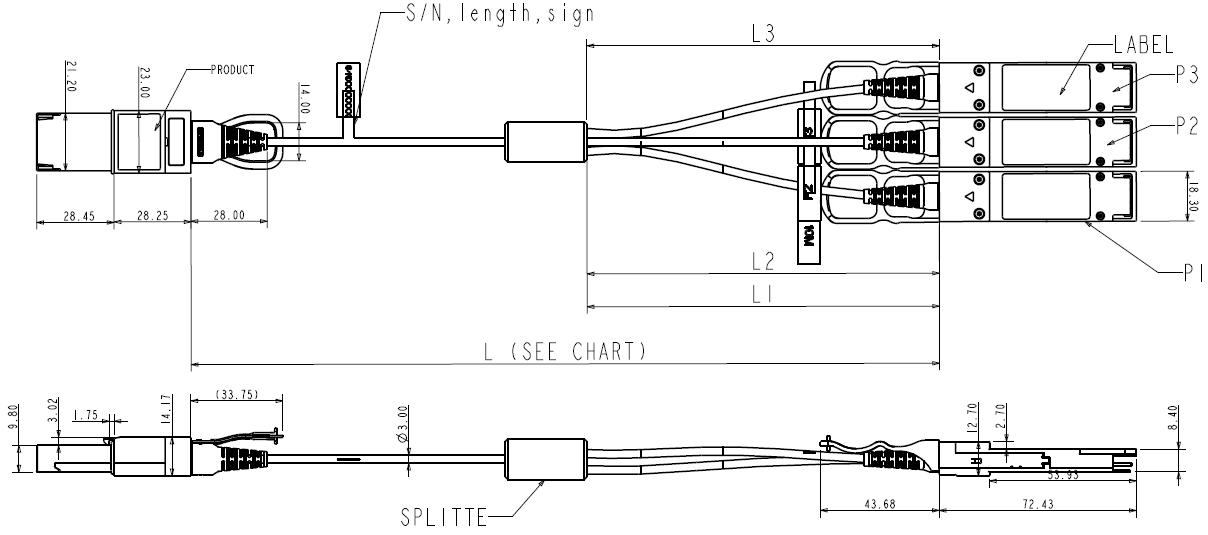

120G CXP to 3x 40G QSFP+ Breakout Active Optical Cables
The Gigalight 120G CXP to 3x 40G QSFP+ Breakout Active Optical Cables (AOCs) are direct-attach fiber assemblies with CXP connector compliant with the CXP MSA (120Gb/s interface specification for CXP transceiver) and QSFP+ connector compliant with the QSFP MSA. They are suitable for short distances and offer a cost-effective solution to connect within racks and across adjacent racks.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Module Form Factor QSFP+ | Supports SFF8436/SFF8472 |
| Channel Data Rate | 10 to 10.3125Gbps |
| BER | <10^-12 |
| Operating Case Temperature | 0 to +70°C |
| Storage Temperature | -20 to +85°C |
| Supply Voltage | 3.3V nominal |
| Supply Current | 500mA maximum |
| Management Interface Serial | I²C (Supports SFF8472) |
| Module Form Factor CXP | Supports SFF-8642 |
| Differential Input Impedance | 90-110ohm |
| Differential Output Impedance | 90-110ohm |
| Differential Input Voltage Amplitude | 100-1100mV-p |
| Differential Output Voltage Amplitude | 500-800mV-p |
| Skew | 300ps |
| Bit Error Rate | E^-12 |
| Input Logic Level High | 2.0V |
| Input Logic Level Low | 0-0.8V |
| Output Logic Level High | VCC-0.5V |
| Output Logic Level Low | 0-0.4V |
| Absolute Maximum Supply Voltage | -0.3-3.6V |
| Absolute Maximum Input Voltage | -0.3-VCC+0.3V |
| Absolute Maximum Storage Temperature | -20-85°C |
| Absolute Maximum Operating Case Temperature | 0-70°C |
| Absolute Maximum Humidity | 5-95% |
| Recommended Supply Voltage | 3.13-3.47V |
| Recommended Operating Case Temperature | 0-70°C |
| Recommended Data Rate Per Lane | 2.5-10.3Gbps |
| Recommended Humidity | 5-85% |
| Recommended Fiber Bend Radius | 3cm |
