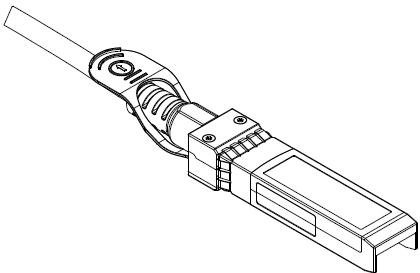

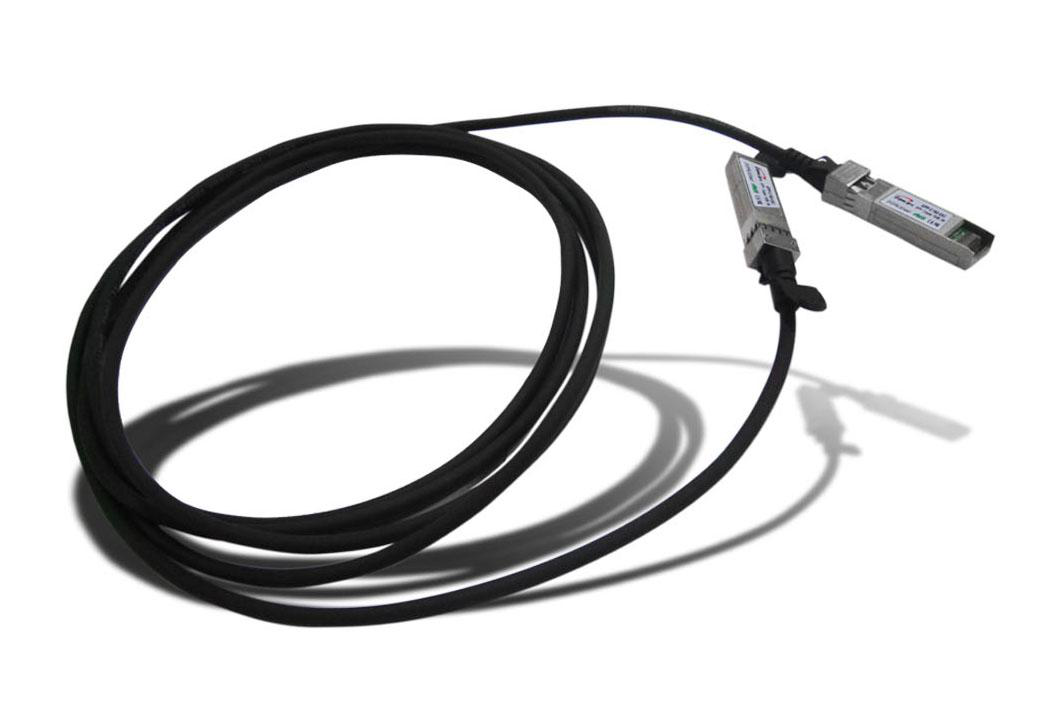

SFP+ Direct Attach Passive Copper Cables
The SFP+ passive cable assemblies are high-performance, cost-effective I/O solutions for 10G Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufacturers to achieve high port density, configurability, and utilization at a very low cost and reduced power budget. The high-speed cable assemblies meet and exceed Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Storage Ambient Temperature | -40~+85°C |
| Operating Case Temperature | 0~+70°C |
| Performance | 10Gb/s line speed, full duplex |
| Bit Error Rate | Better than 10E-12 |
| Media | Hot-pluggable, industry-standard Small Form-Factor Pluggable(SFP+) copper cable, available as 7m |
| Compatibility | SFP+ MSA, SFF-8431, SFF-8432 |
| Hot-pluggable SFP 20PIN footprint | Yes |
| Improved Pluggable Form Factor(IPF) | Enhanced EMI/EMC performance |
| Temperature Range | 0~70°C |
| Wire Gauge | AWG 30, AWG 24 |

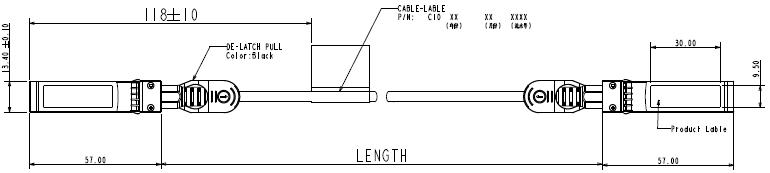

| Length | 1m, 2m, 3m, 4m, 5m, 6m, 7m |
