100G QSFP28 Active Electrical Loopback Module

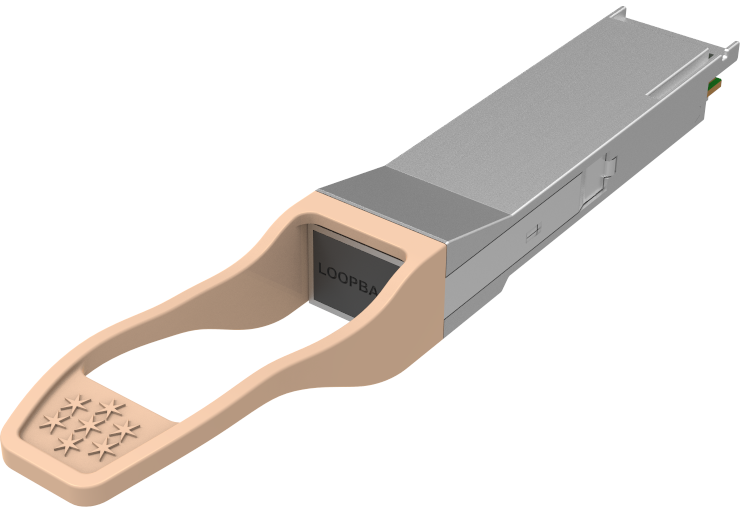

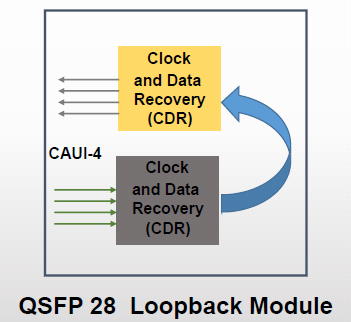

The GQS-MPO101-LP4C QSFP28 active electrical loopback is used for testing 100G QSFP28 transceiver ports in board-level tests. By substituting for a full-featured QSFP28 transceiver, the electrical loopback provides a cost-effective low-loss method for QSFP28 port testing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 3.13-3.47V |
| Input Voltage | -0.3V to Vcc+0.3V |
| Storage Temperature | -40°C to 85°C |
| Case Operating Temperature | 0°C to 70°C |
| Humidity (non-condensing) | 5%-95% |
| Data Rate Per Lane | 25.78125Gb/s |
| Power Dissipation | <2.5W |
| Differential Input Impedance | 90-100Ω |
| Differential Output Impedance | 90-110Ω |
| Differential Input Voltage Amplitude | 300mVpp |
| Differential Output Voltage Amplitude | 300-900mVpp |
| Bit Error Rate | E-12 |
| Input Logic Level High | 2.0-Vcc |
| Input Logic Level Low | 0-0.8V |
| Output Logic Level High | Vcc-0.5V to Vcc |
| Output Logic Level Low | 0-0.4V |
Applications
Key Features

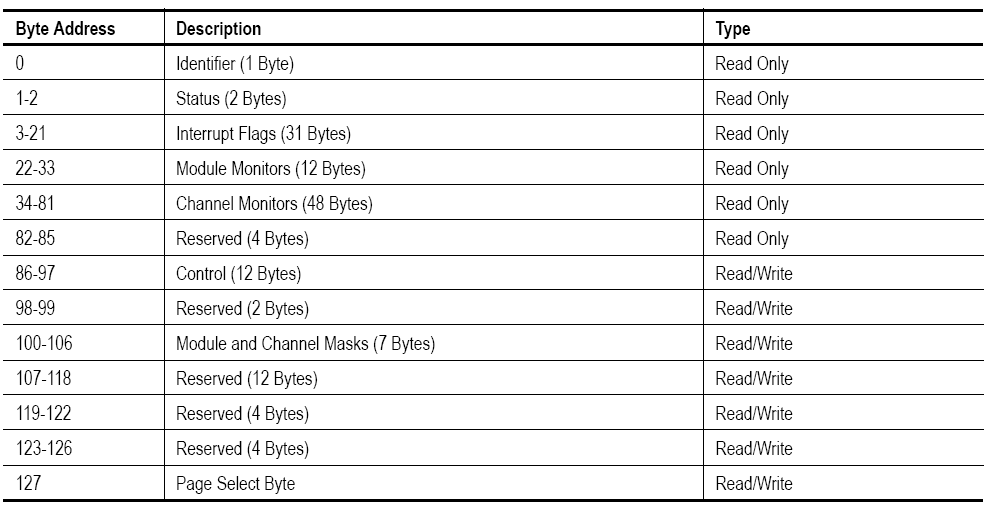

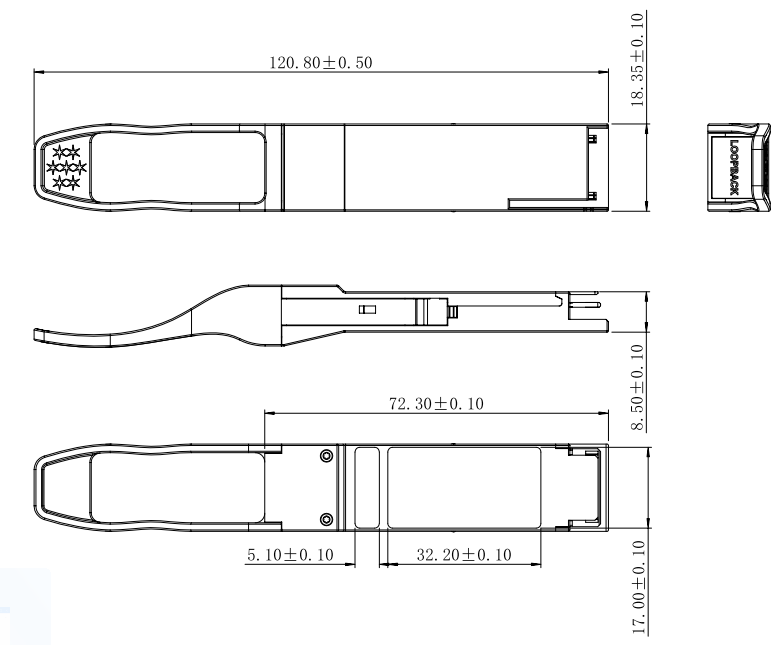

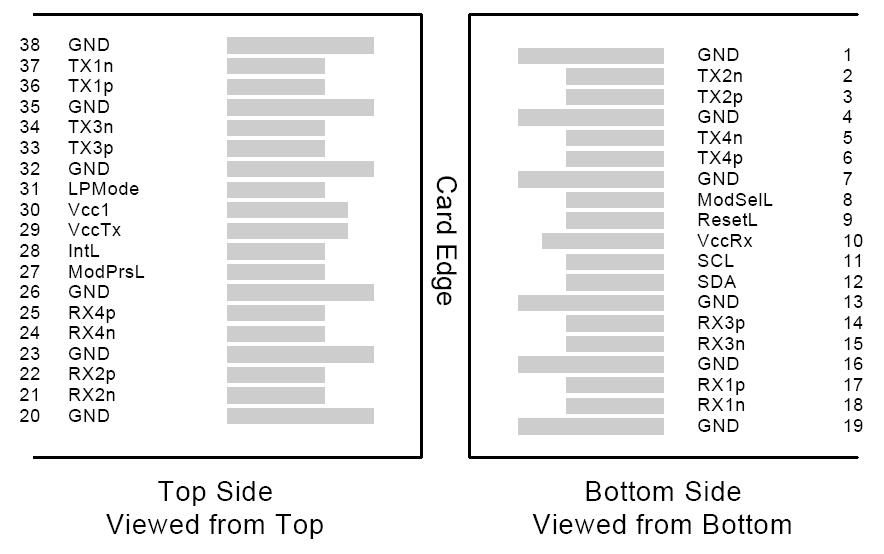

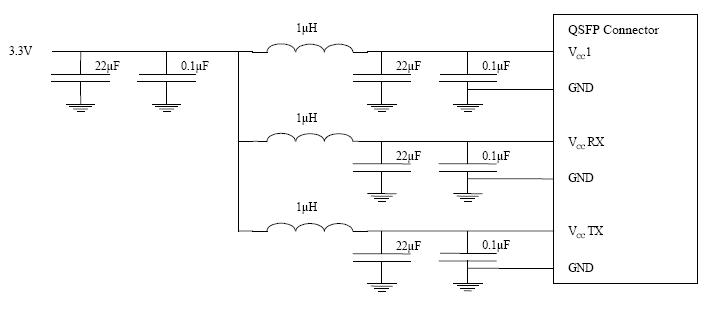

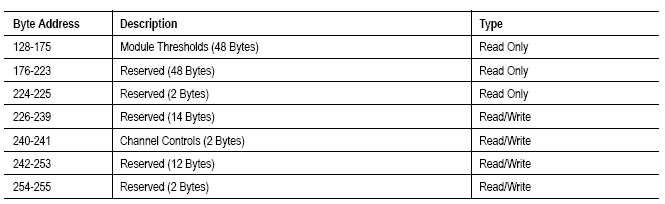

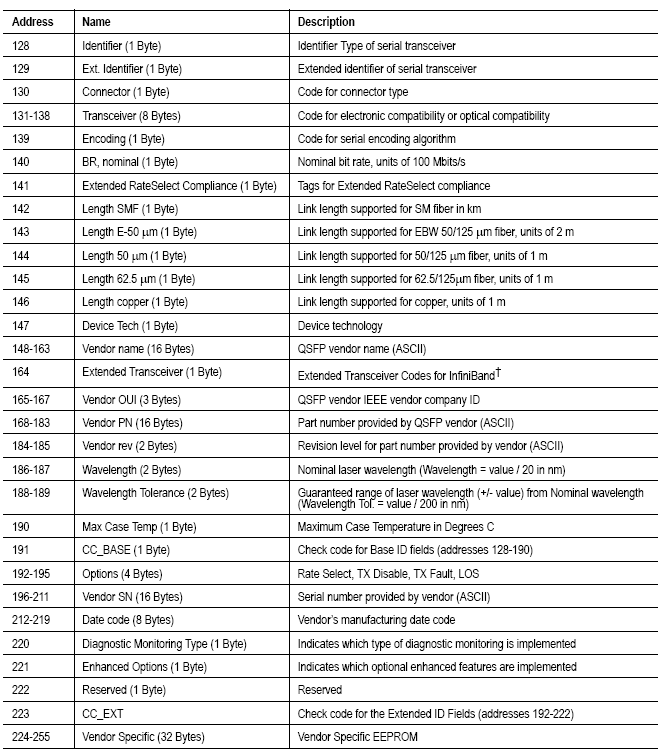

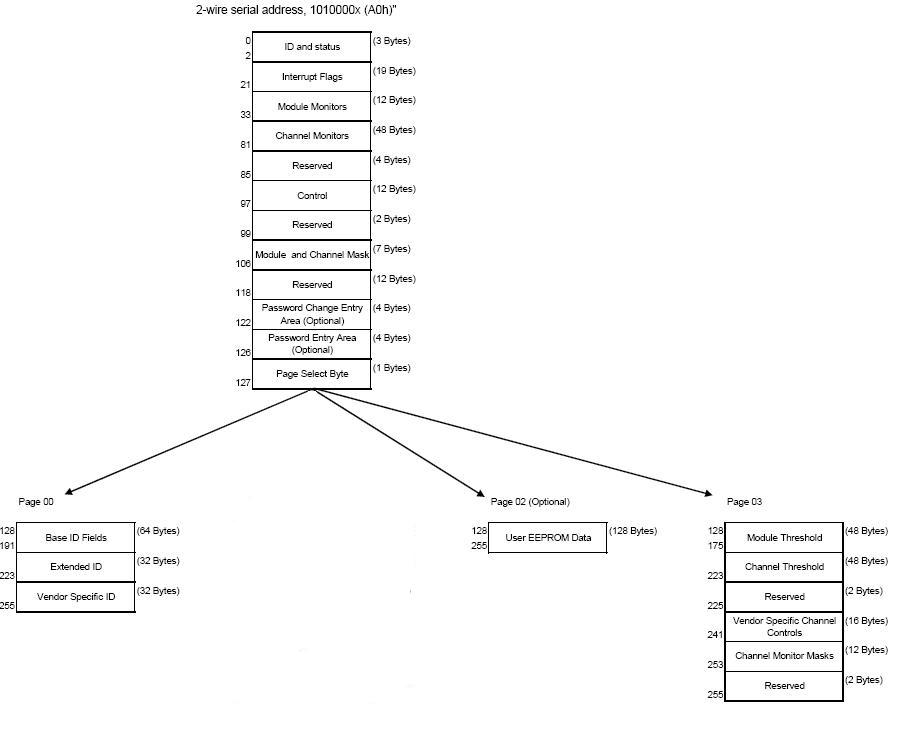

Datasheet
