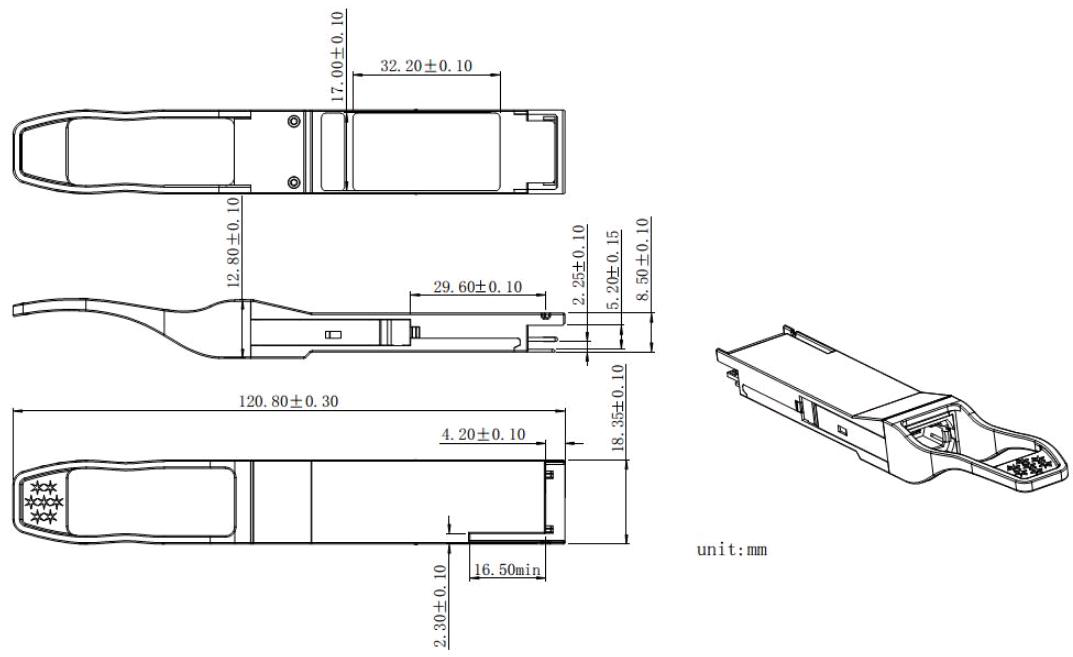

100GBASE-SR4 100m QSFP28 Optical Transceiver

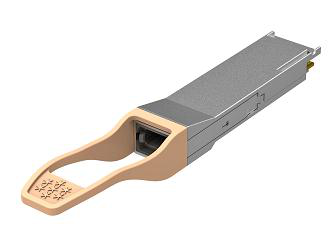

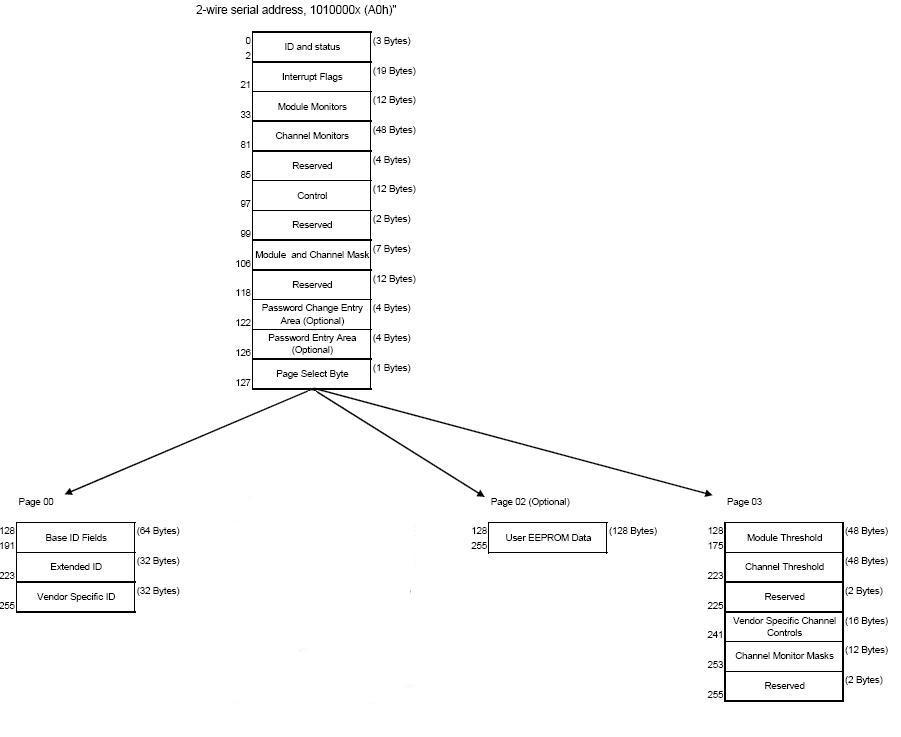

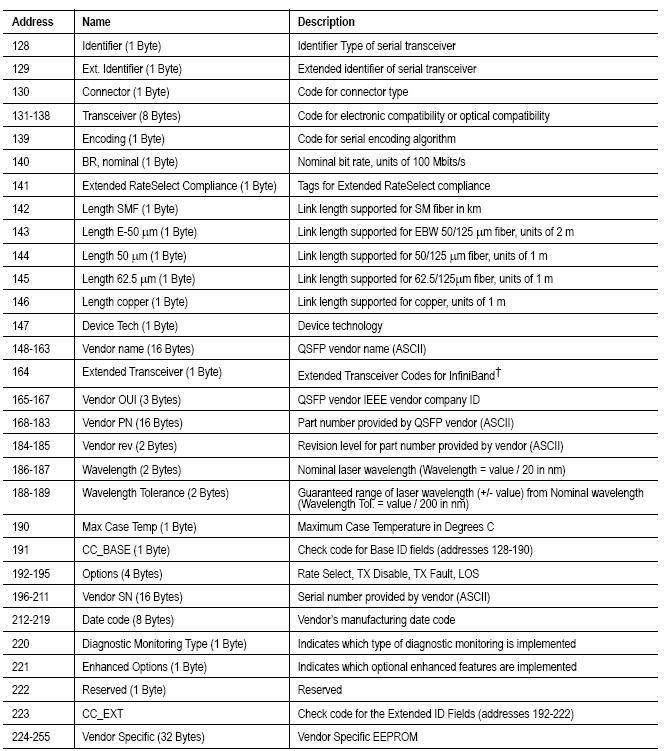

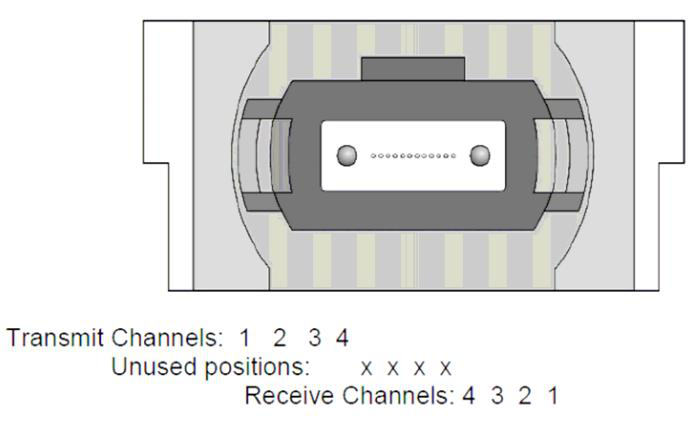

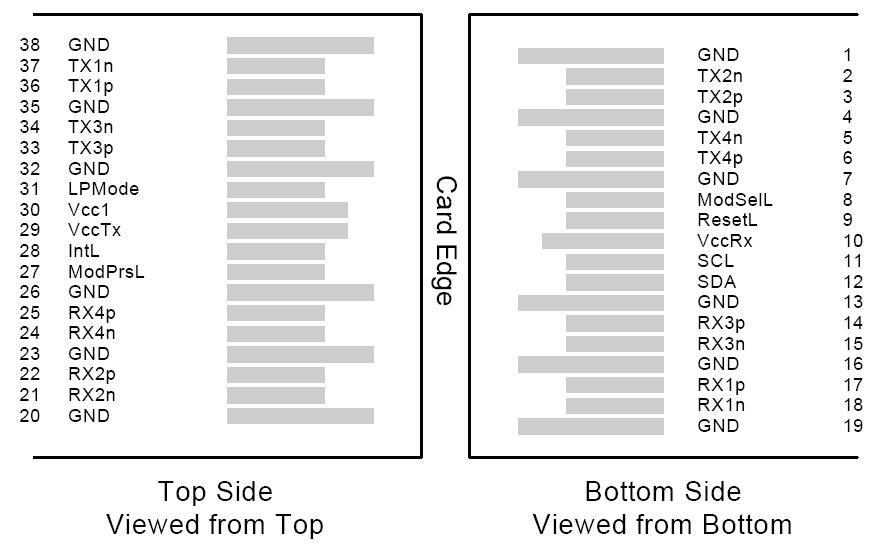

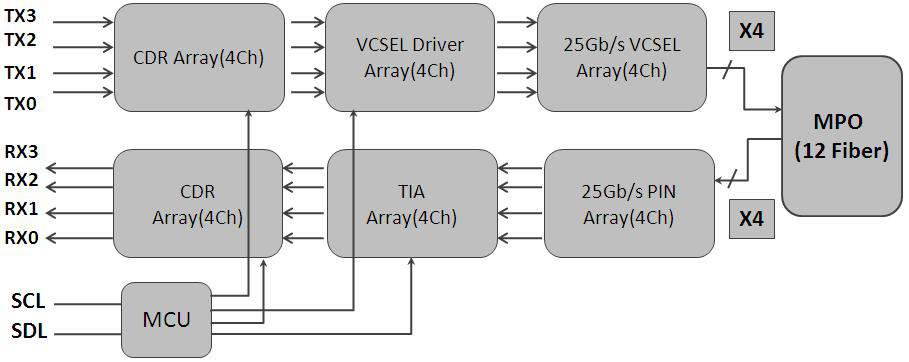

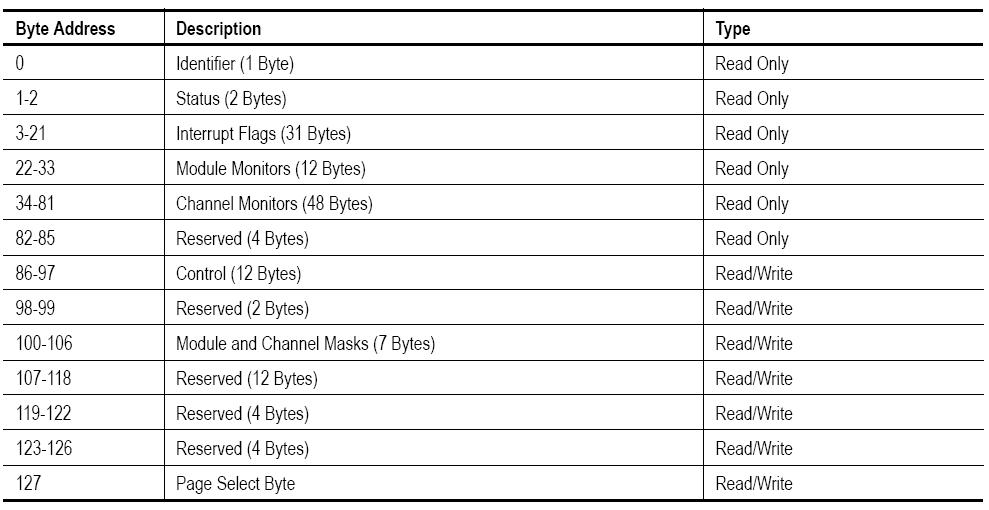

The Gigalight 100GBASE-SR4 100m QSFP28 optical transceiver is designed for use in 100-Gigabit Ethernet links up to 100m over Multi-Mode Fiber (MMF). It complies with the QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standards. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA. It integrates 4 data lanes in each direction with 4×25.78125Gb/s bandwidth. The electrical interface uses a 38-contact edge type connector, and the optical interface uses a 12-fiber MTP/MPO connector. This module incorporates Gigalight proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
Save to Favorites

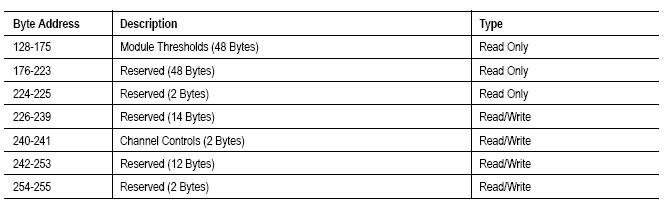

Overview
Specifications

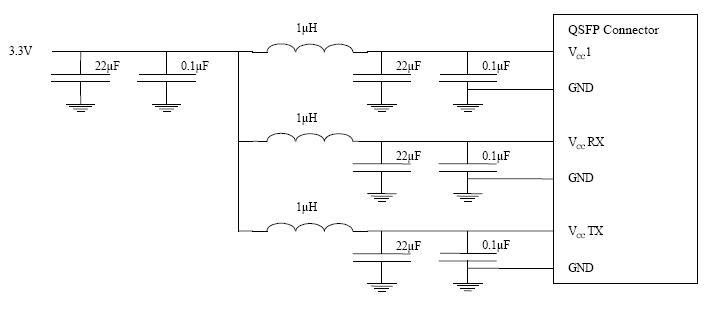

| Parameter | Value |
|---|---|
| Supply Voltage | 3.13-3.47V |
| Operating Case Temperature | 0-70°C |
| Data Rate Per Lane | 25.78125Gb/s |
| Humidity | 5-85% |
| Power Dissipation | 2W |
| Fiber Bend Radius | 3cm |
| Differential Input Impedance | 90-110Ω |
| Differential Output Impedance | 90-110Ω |
| Differential Input Voltage Amplitude | 300-1100mVp-p |
| Differential Output Voltage Amplitude | 500-800mVp-p |
| Skew | 300ps |
| Bit Error Rate | 5×10^-5 |
| Input Logic Level High | 2.0-VccV |
| Input Logic Level Low | 0-0.8V |
| Output Logic Level High | Vcc-0.5V |
| Output Logic Level Low | 0-0.4V |
| Center Wavelength | 840-860nm |
| RMS Spectral Width | 0.6nm |
| Average Launch Power (each lane) | -8.4-2.4dBm |
| Optical Modulation Amplitude (each lane) | -6.4-3dBm |
| Transmitter and Dispersion Eye Closure (each lane) | 4.3dB |
| Extinction Ratio | 3dB |
| Average Launch Power of OFF Transmitter (each lane) | -30dBm |
| Eye Mask Coordinates | {0.3,0.38,0.45,0.35,0.41,0.5} |
| Receiver Center Wavelength | 840-860nm |
| Stressed Receiver Sensitivity in OMA | -5.2dBm |
| Average Power at Receiver Input (each lane) | -10.3-2.4dBm |
| Receiver Reflectance | -12dB |
| Los Assert | -30dBm |
| Los De-assert | -7.5dBm |
| Los Hysteresis | 0.5dB |
