GIGALIGHT Liquid Immersion SFP28 DAC GLS-PC250-XXC

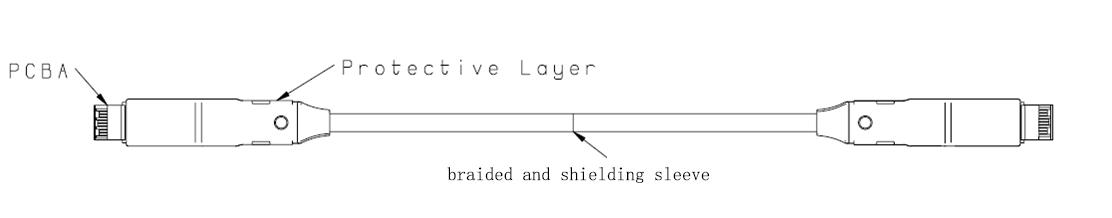

The GIGALIGHT Liquid Immersion SFP28 DAC GLS-PC250-XXC is a specially designed SFP28 Direct Attach Copper (DAC) cable for liquid immersion environments. It features hot melt glue for a protective layer to prevent liquid contact with the copper conductor, ensuring excellent signal integrity. The braided and shielding sleeve replaces the traditional outer jacket, reducing the risk of cooling liquid dissolving the outer jacket material.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Data Rate (Gb/s) | 25.78125 |
| Transmission Distance (m) | 5 |
| Power Consumption (W) | <0.1 |
| Operating Temperature Range (°C) | 0-70 |
| Storage Ambient Temperature (°C) | -40 to +85 |
| Operating Case Temperature (°C) | 0 to +70 |
| Power Supply Voltage (V) | 3.14-3.47 |
| Differential Impedance (bulk cable) (Ω) | 95-110 |
| Differential Impedance (cable termination) (Ω) | 85-110 |
| Insertion Loss (dB) | 22.4 at 12.8906 GHz |
| Differential Return Loss (dB) | See notes |
| Common-mode to common-mode output return loss (dB) | 2 at 0.01 to 12.89 GHz |
| Differential to common-mode conversion loss (dB) | See notes |
| Channel Operating Margin (dB) | 3 |
| Wire Gauge (AWG) | 30, 30/26, 26 |

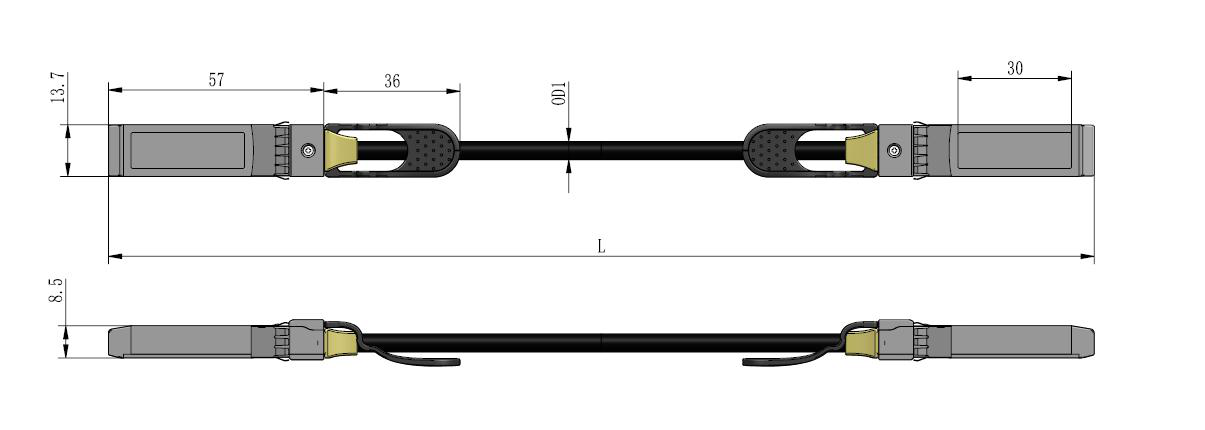

| Cable Diameter (mm) | 5.6 |

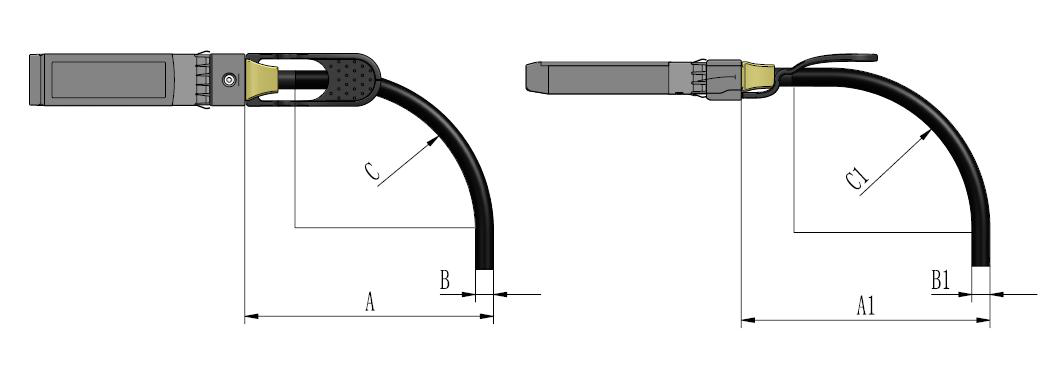

| Min Bend Radius C (mm) | 28 |
| Min Bend Radius A (mm) | 38 |
