xPON Coexistence WDM

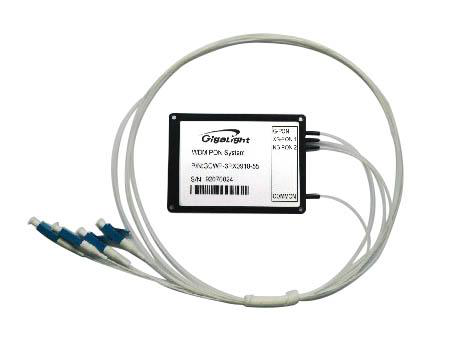

The Gigalight xPON Coexistence WDM device is designed for PON coexistence applications. Utilizing WDM technology, it identifies Client ONU wavelengths, enabling uplink access with wide bandwidth and true broadband symmetry. Based on Thin Film Filter (TFF) technology, it operates at wavelengths from 1260nm to 1650nm. Gigalight offers customized xPON Coexistence WDM devices in ABS box, LGX box, or rack mount packaging to meet diverse channel type requirements.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Channel Type | GPON, XG-PON1, NG-PON2, Video |
| Uplink Operating Wavelength (nm) | 1290~1330, 1260~1280, 1524~1544, 1550~1560 |
| Downlink Operating Wavelength (nm) | 1480~1500, 1575~1581, 1596~1603, 1550~1560 |
| Insertion Loss (dB) | <1.0, <1.2, <1.2, <1.5 |
| Isolation (dB) | >30 |
| Directivity (dB) | >50 |
| Return Loss (dB) | >45 |
| Ripple (dB) | <0.5 |
| Polarization Dependent Loss (dB) | <0.2 |
| Polarization Mode Dispersion (ps) | <0.1 |
| Maximum Optical Power (mW) | 300 |
| Operating Temperature (°C) | -5~75 |
| Storage Temperature (°C) | -40~85 |

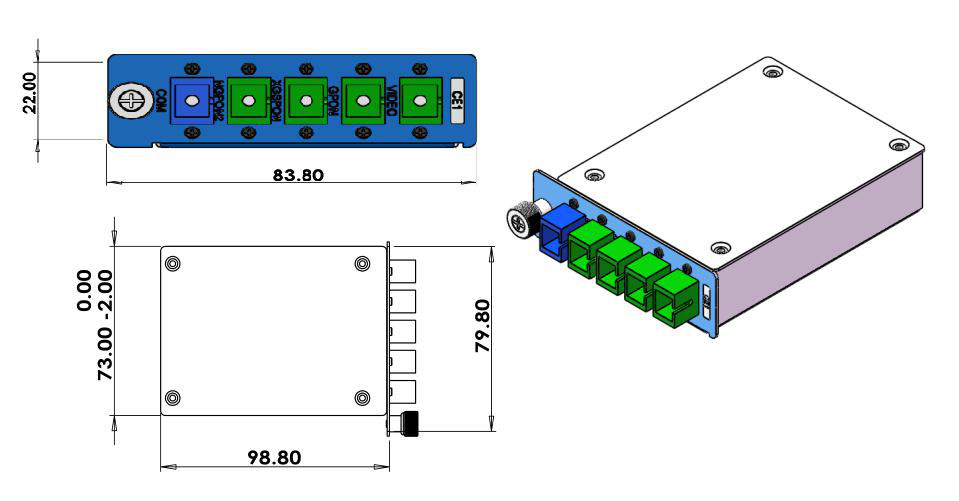

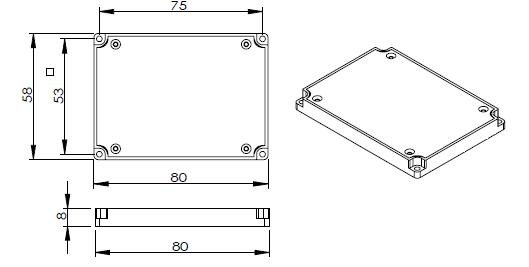

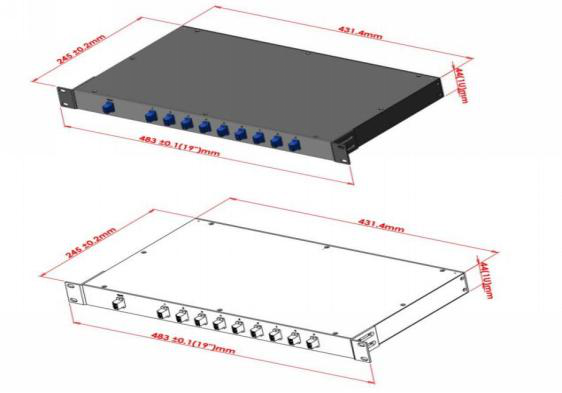

| Package (mm)(L×W×H) | PX ABS Box: 80×58×8, Mini LGX Box: 98.8×83.8×26, 19-inch 1U Rack Mount: 483×245×231 |
