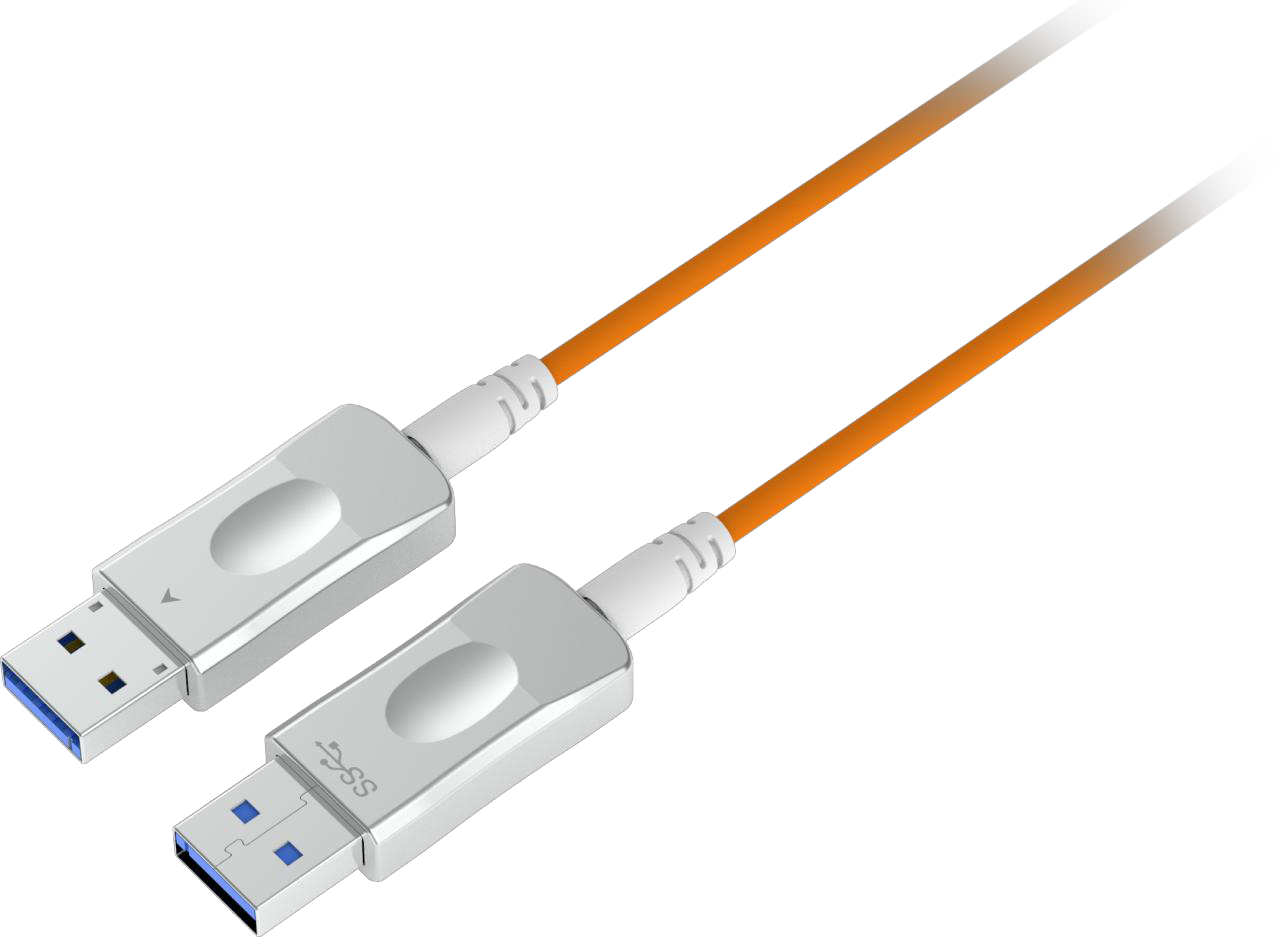

USB 3.0 Active Optical Cable
The Gigalight USB 3.0 AOC is composed of two USB 3.0 Type-A connectors and multimode optical fiber, with IC/VCSEL/PD at each end to complete the OE & EO conversion.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Protocols Supported | Universal Serial Bus 3.0 Specification |
| Data Rate | 5Gbps |
| BER | <10^-12 |
| Operating Case Temperature | 0 to +70°C |
| Storage Temperature | -20 to +85°C |
| Supply Voltage | 5.0V |
| Supply Current | Max. 80mA per end typical |
| Minimum Bend Radius | 30mm |
| Maximum Bearing Tension | 40N |
Applications
Key Features
Datasheet
