HDMI 2.1 Hybrid Active Optical Cable

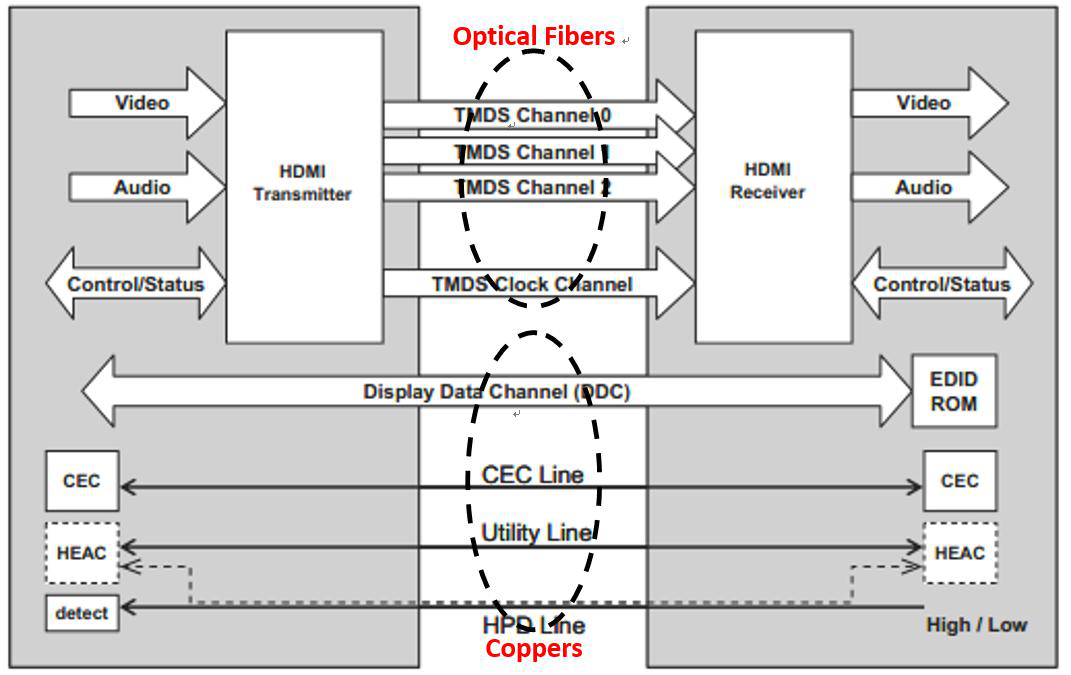

The GIGALIGHT HDMI2.1 Cable is a type of Active Optical Cable (AOC) designed to extend the transmission distance between HDMI source and sink devices. It uses hybrid optical fibers and copper wires to transmit high-speed TMDS signals and low-frequency DDC/control signals, ensuring high-quality display up to 8K resolution.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Support HDMI ver. | HDMI 2.1 |
| Data Rate | 48Gbps(12Gbps per channel) |
| Video Format | 8K@60Hz/4K@120Hz/1080p/1080i/720p format |
| Support features | HDCP/EDID/CEC/DDC/Audio |
| Signal Input & Output Connector | HDMI A-type(Plug) |
| Fiber Length | Up to 100m |
| Operating Case Temperature | 0 to +60°C |
| Storage Temperature | -20 to +85°C |
| Supply Voltage | 5.0V |
| Supply Current | Max. 100mA per end typical |
| Fiber Bend Radius | Min. 45mm |

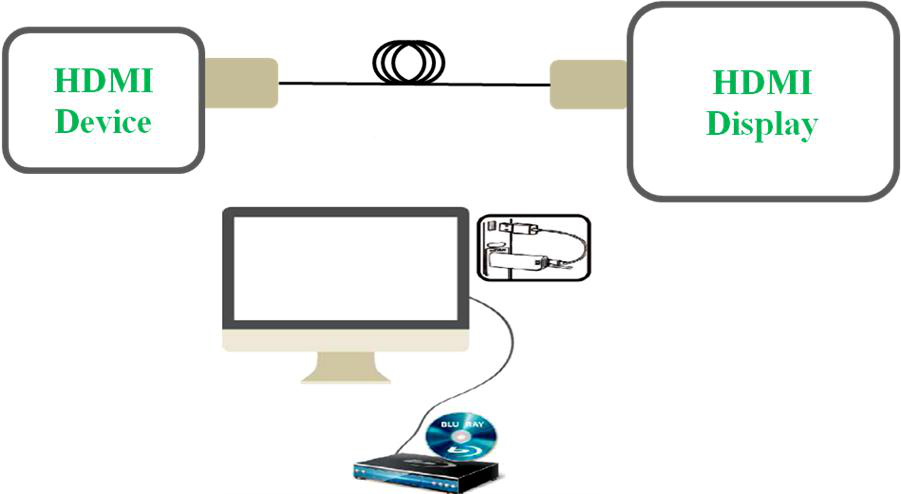

Applications
Key Features
Datasheet
