100G QSFP28 LR4 Receiver
Transmitters and Receivers

100G QSFP28 LR4 Receiver

Supplier
Trixontech
Part Number
100G QSFP28 LR4 Receiver
Category
Transmitters and Receivers
Origin
China

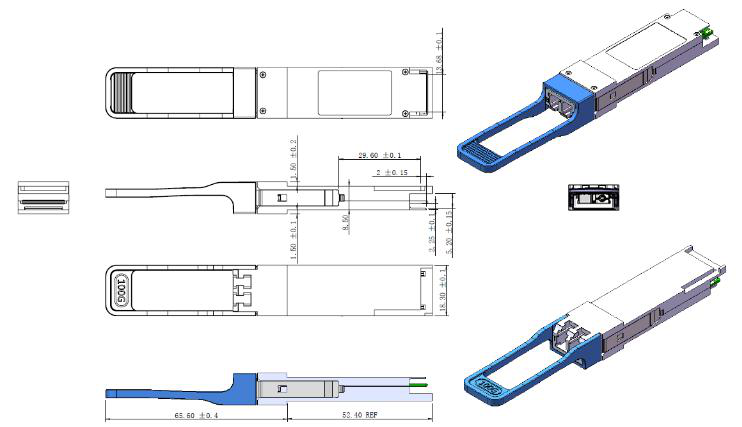

The TQR-HG10-31DCR is a parallel 100Gbps Quad Small Form-factor Pluggable (QSFP) optical module receiver. It provides increased port density and total system cost savings. The QSFP28 full-duplex optical module offers 4 independent receive channels, each capable of 28Gbps operation for an aggregate data rate of 100Gbps over 10km of single mode fiber. An optical fiber cable with duplex LC connectors can be plugged into the QSFP28 module receptacle. The module operates by a single +3.3V power supply. LVCMOS/LVTTL global control signals, such as Module Present, Reset, Interrupt and Low Power Mode, are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals, and to receive digital diagnostic information. The TQR-HG10-31DCR is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (SFF-8436). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.

Specification Snapshot
Distance
10km
Supply Voltage
-0.5~3.6V

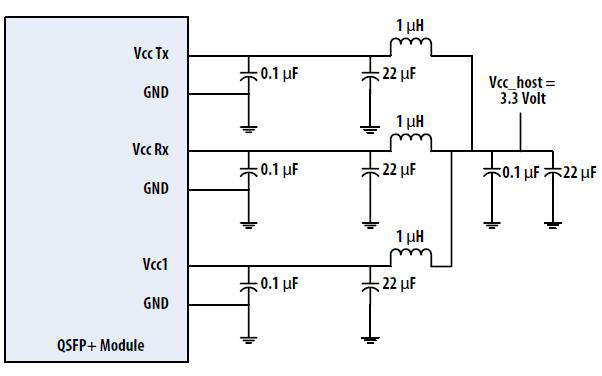

Power Supply Voltage
3.135~3.465V
Supply Current
1.12A
Rx Output Diff Voltage
200~1100mV
Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

The TQR-HG10-31DCR is a parallel 100Gbps Quad Small Form-factor Pluggable (QSFP) optical module receiver. It provides increased port density and total system cost savings. The QSFP28 full-duplex optical module offers 4 independent receive channels, each capable of 28Gbps operation for an aggregate data rate of 100Gbps over 10km of single mode fiber. An optical fiber cable with duplex LC connectors can be plugged into the QSFP28 module receptacle. The module operates by a single +3.3V power supply. LVCMOS/LVTTL global control signals, such as Module Present, Reset, Interrupt and Low Power Mode, are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals, and to receive digital diagnostic information. The TQR-HG10-31DCR is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (SFF-8436). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.

Specifications

ParameterValue
Data Rate100GbpsGbps
Laser-
Distance10km
Optical InterfaceLC
DDMIY
Supply Voltage-0.5~3.6V
Voltage on LVTTL Input-0.5~VCC+0.5V
LVTTL Output Current15mA
Power Supply Voltage3.135~3.465V
Fiber Length10km
Data Rate, each Lane25.78125~27.95GbpsGbps
Supply Current1.12A

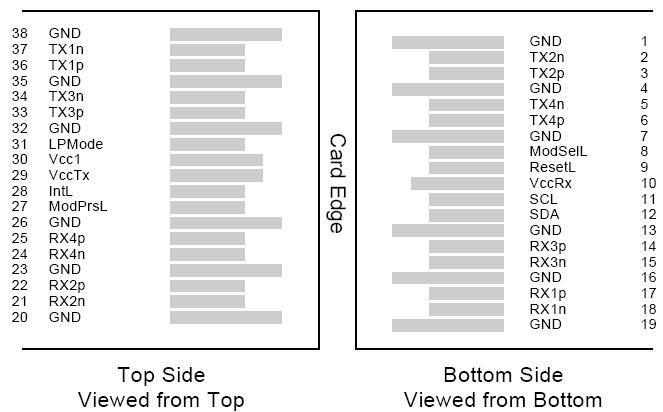

Control I/O Voltage, High2.0~VCCV
Control I/O Voltage, Low0~0.8V
Tx Input Diff Voltage150~1200mV
Tx Input Diff Impedance85~115Ω
Rx Output Diff Voltage200~1100mV
Rx Output Diff Impedance85~115Ω
Average Power at Receiver Input-10.6~4.5dBm
Receiver Reflectance-12dB
Loss Assert-25dB
Loss Dessert-11.6dBm
LOSS Hysteresis0.5dB

Applications

1. 100GBASE LR4 100G Ethernet 2. OTU4 4I1-9D1F

Key Features

1. 4 independent LAN-WDM channels 2. Up to 28Gbps data rate per channel 3. Hot-pluggable QSFP28 form factor 4. Digital diagnostic capabilities 5. Maximum link length of 10km on Single Mode Fiber(SMF) 6. Single +3.3V power supply 7. Operating case temperature: 0~70°C 8. Low power consumption <2W 9. RoHS-6 compliant

Datasheet

Product Datasheet
PDF
Download

Supplier Information

Tr
Trixontech
View Supplier →
Sichuan Trixon Communication Technology Co., Ltd. is a high-tech company established in Chengdu in September 2008. The registered capital is 30 million RMB. The office and production workshop cover an area of more than 5,000 square meters. The company has sales branches in Beijing, Shenzhen, Hangzhou, and Hong Kong. Since its establishment, Trixon has always adhered to "customer demand-oriented, customer satisfaction as the standard", and with its strong technical strength and professional manufacturing level, it occupies an important place in the fierce competition in the optical module industry. The company's main products include Copper, SGMII, SFP, SFP+, XFP, CWDM, DWDM, 25G SFP28, 100G QSFP28, 100G CFP and other full series of 5G fronthaul solutions, data center solutions, and transmission solutions optical module products. The company has an experienced management team and an independent intellectual property R&D team, composed of senior people with rich experience in business management, technology development, marketing, and production operations; focusing on the independent research and development, production, and sales of high-performance optical communication and mobile communication modules. Up to now, Trixon has a number of related patents, and its products have passed UL/FDA/TUV safety certifications, as well as ISO9001 quality management system certification and ISO14001:2015 environmental management system certification. With perfect production processes, strict management, and skilled operations, the company has built a professional production line of "automated assembly line operation", with an annual production capacity of more than 3 million units. With the continuous evolution of the information age, Trixon always keeps up with market development, adheres to independent innovation, takes customers as the center, customer satisfaction as the standard, market demand as the orientation, quality as the foundation, and adheres to the company philosophy of "high quality, low cost, quick response, attention to details, and strong improvement". Trixon will surely ride the wind and waves and move forward bravely.
