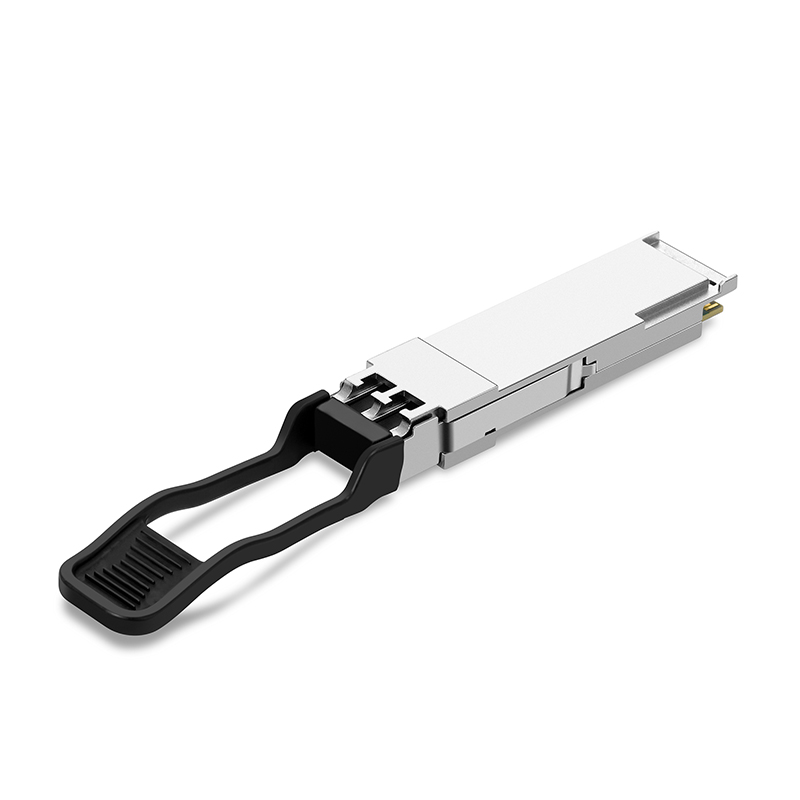

100G QSFP28 CWDM4
The TQS-HG02-31DCR is a parallel 100Gbps Quad Small Form-factor Pluggable (QSFP) optical module designed for high-density and cost-effective optical communication.
Save to Favorites

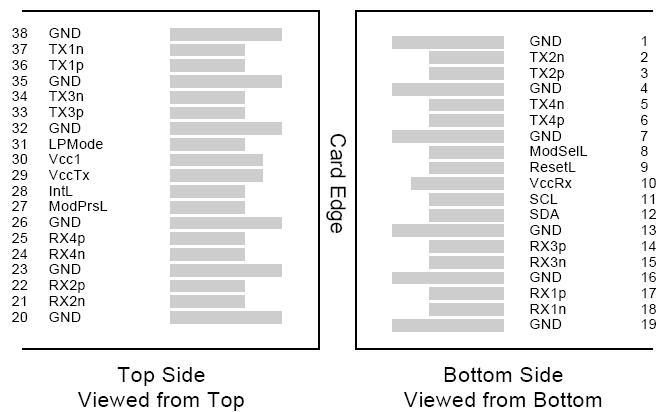

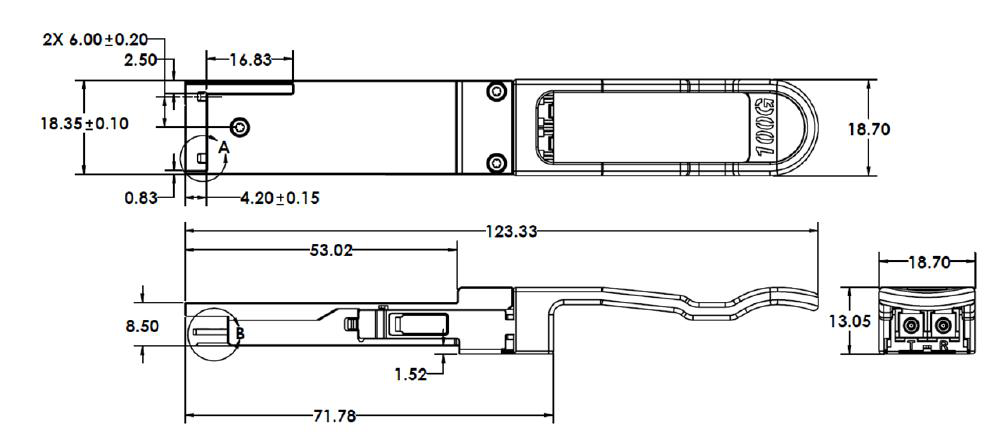

Overview
Specifications

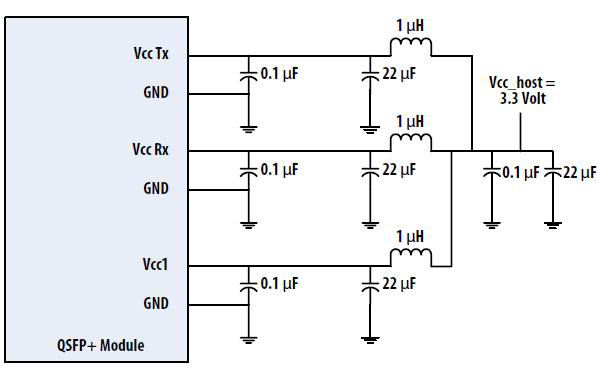

| Parameter | Value |
|---|---|
| Data Rate | 100Gbps |
| Laser Type | CWDM DFB |
| Fiber Type | SMF |
| Distance | 2km |
| Optical Interface | LC |
| Bail Color | Beige |
| Operating Case Temperature | 0~70°C |
| DDMI | Y |
| Storage Temperature | -40~85°C |
| Relative Humidity | 15~85% |
| Supply Voltage | -0.5~3.6V |
| Voltage on LVTTL Input | -0.5~VCC+0.5V |
| LVTTL Output Current | 0~15mA |
| Voltage on Open Collector Output | 0~6V |
| Power Supply Voltage | 3.135~3.465V |
| Fiber Length | 2km SMF |
| Data Rate, each Lane | 25.78125Gbps |
| Power Consumption (XLPPI) | <3.5W |
| Supply Current | 1.12A |
| Control I/O Voltage, High | 2.0~VCCV |
| Control I/O Voltage, Low | 0~0.8V |
| Tx Input Diff Voltage | 0~900mV |
| Tx Input Diff Impedance | 90~100~110Ω |
| Rx Output Diff Voltage | 100~1200mV |
| Rx Output Diff Impedance | 90~100~110Ω |
| Center Wavelength Transmitter | 1264.5~1277.5nm, 1284.5~1297.5nm, 1304.5~1317.5nm, 1324.5~1337.5nm |
| Side-Mode Suppression Ratio | 30dB |
| Average Optical Power, each Lane | -4~+2.5dBm |
| Optical Modulation Amplitude (OMA) | -2~3dBm |
| Extinction Ratio | 3.5dB |
| Transmitter Eye Mask Definition | Complied with IEEE802.3bm |
| Average Launch Power OFF Transmitter, each Lane | -30dBm |
| Center Wavelength Receiver | 1264.5~1277.5nm, 1284.5~1297.5nm, 1304.5~1317.5nm, 1324.5~1337.5nm |
| Average Power at Receiver Input, each Lane | -10~2.5dBm |
| Receiver Reflectance | -12dB |
| Los Assert | -24~-13.6dBm |
| Los Dessert | -11.6dBm |
| Los Hysteresis | 0.5dB |
