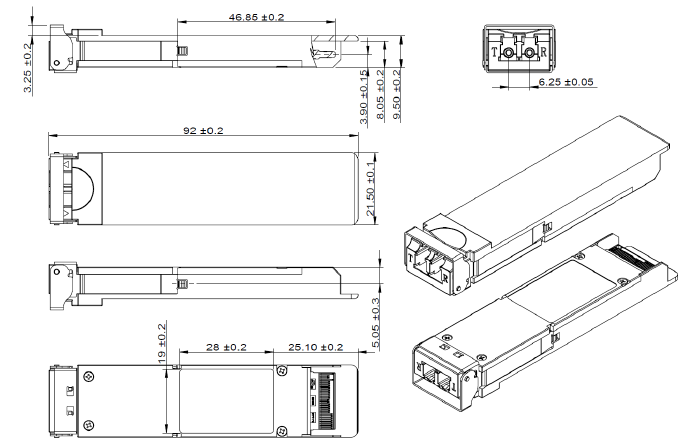

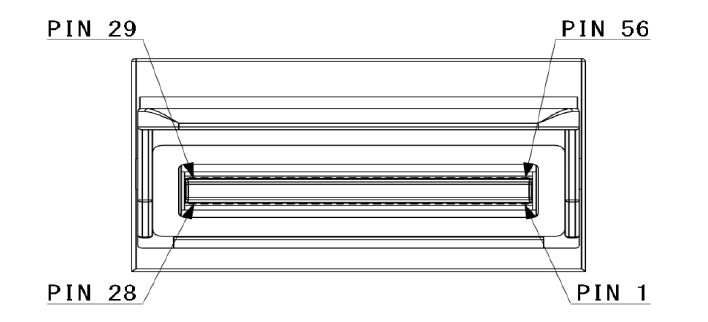

CFP4 LR4 Transceiver 100G-BASE 10km CFP4

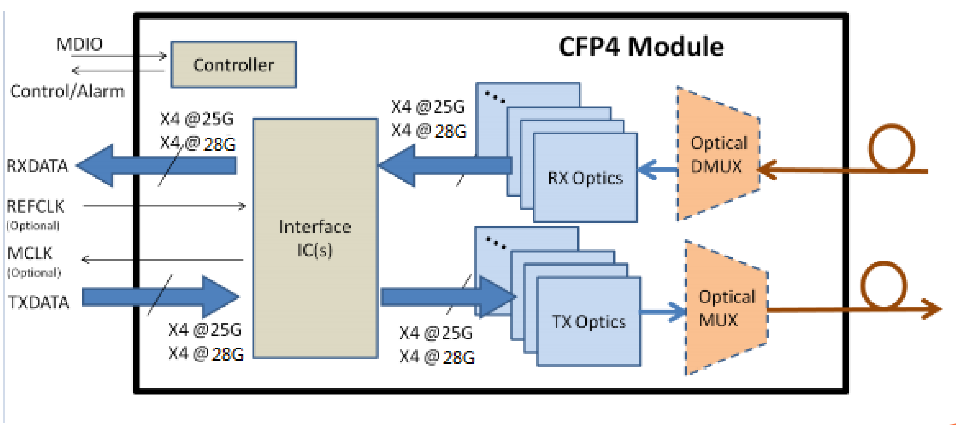

The CFP4 LR4 transceiver is designed for 100 Gigabit Ethernet links over 10km single-mode fiber. It complies with CFP4 MSA CFP4 HW and IEEE 802.3ba 100GBASE-LR4 standards, offering high performance and cost efficiency for Datacom and Telecom applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Data Rate | 112G |
| Laser | 4-LANE: 1295.56, 1300.05, 1304.58, 1309.14 |
| Fiber Type | SMF |
| Distance | 10km |
| Optical Interface | LC |
| Bail Color | Blue |
| Operating Temperature | 0~70°C |
| DDMI | YES |
| Storage Temperature | -40~85°C |
| Supply Voltage | -0.5~3.6V |
| Operating Humidity | 5~85% |
| Operating Case Temperature | 0~70°C |
| Power Dissipation | 6W |
| Low Power Dissipation | 1W |
| Input High Voltage | 2~Vcc+0.3V |
| Input Low Voltage | -0.3~0.8V |
| Input Leakage Current | -10~10mA |
| Output High Voltage | Vcc-0.2~Vcc+0.3V |
| Output Low Voltage | -0.3~0.2V |
| Minimum Pulse Width of Control Pin Signal | 100us |
| Reference Clock Impedance | 85~115ohm |
| Reference Clock Frequency | 1/64 of host lane rate |
| Reference Clock Frequency Stability | -100~100ppm |
| Input Differential Voltage | 150~1000mV |
| Output Amplitude Voltage | 360~900mV |
| RMS Jitter | 10ps |
| Clock Duty Cycle | 40~60% |
| Clock Rise/Fall Time 10/90% | 200~1250ps |
| Channel Data Rate | 27.95Gbps |
| Data Rate Variation | -20~+20ppm |
| Centre Wavelength | 1294.53~1296.59nm, 1299.02~1301.09nm, 1303.54~1305.63nm, 1308.09~1310.19nm |
| Total Average Launch Power | 8.9dBm |
| Average Launch Power per Lane | -2.5~2.9dBm |
| Difference in Launch Power between any two lanes (OMA) | 5dB |
| Extinction Ratio | 7dB |
| Average Launch Power of TX_DIS Transmitter per lane | -30dBm |
| SMSR | 30dB |
| Optical Eye Mask | G.959.1 Compliant |
| Receiver Channel Data Rate | 27.95Gbps |
| Receiver Data Rate Variation | -20~20ppm |
| Receiver Centre Wavelength | 1294.53~1296.59nm, 1299.02~1301.09nm, 1303.54~1305.63nm, 1308.09~1310.19nm |
| Damage Threshold | 5.5dBm |
| Average Receiver Power per Lane | -8.8~4.0dBm |
| Equivalent Receiver Sensitivity per Lane | -10.6dBm |
| Vertical Eye Closure Penalty per Lane | 1.5dB |
| Receiver Sensitivity in OMA per Lane | -10.6dBm |
| Stressed Sensitivity (OMA) per Lane | -6.8dB |
| Rx-Lane LOS Assert | -21.3dBm |
| Rx-Lane LOS De-assert | -11.3dBm |
| Rx-Lane LOS Hysteresis | 0.5dB |
