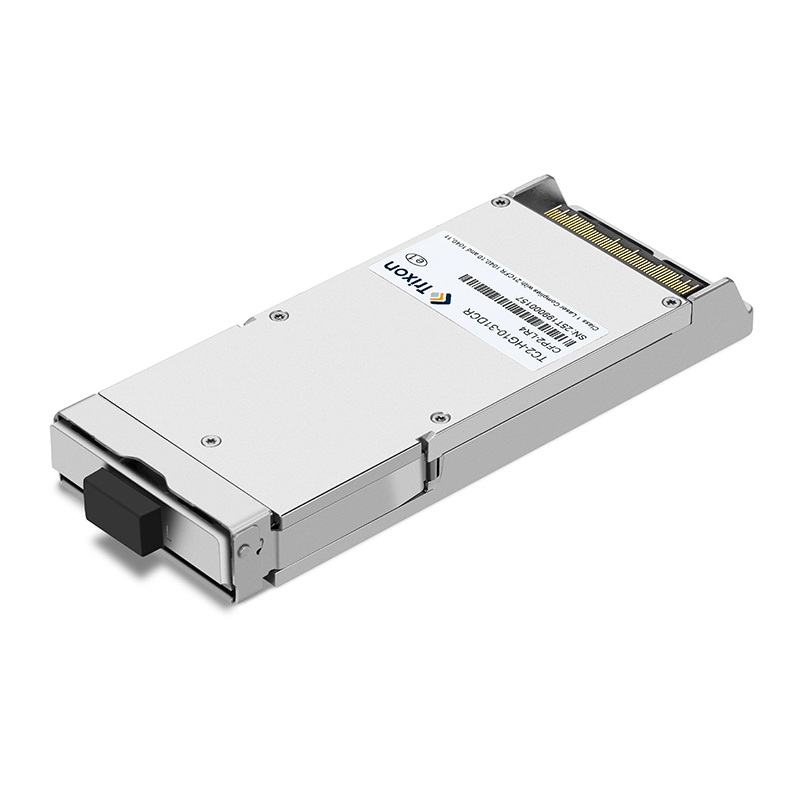

CFP2-LR4 Transceiver 100G-BASE 10km CFP2

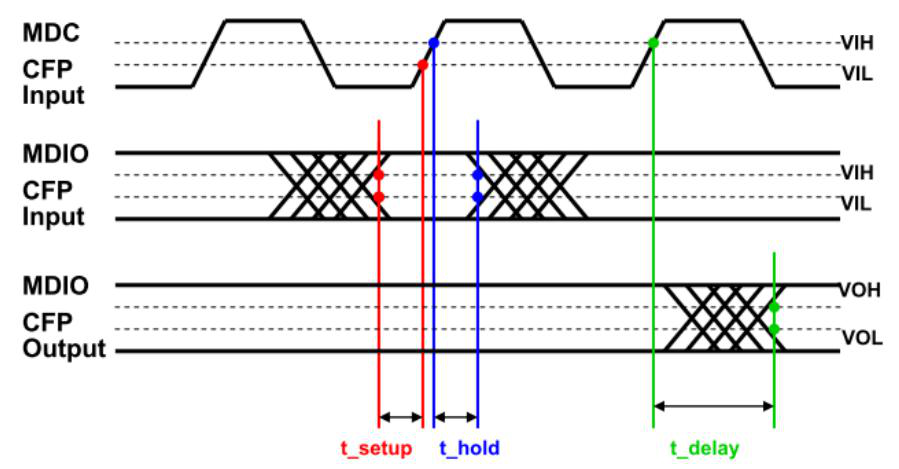

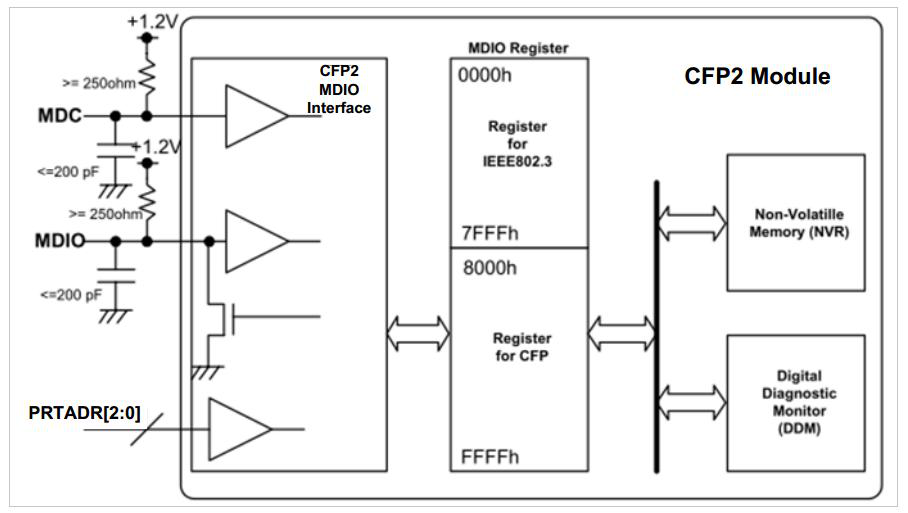

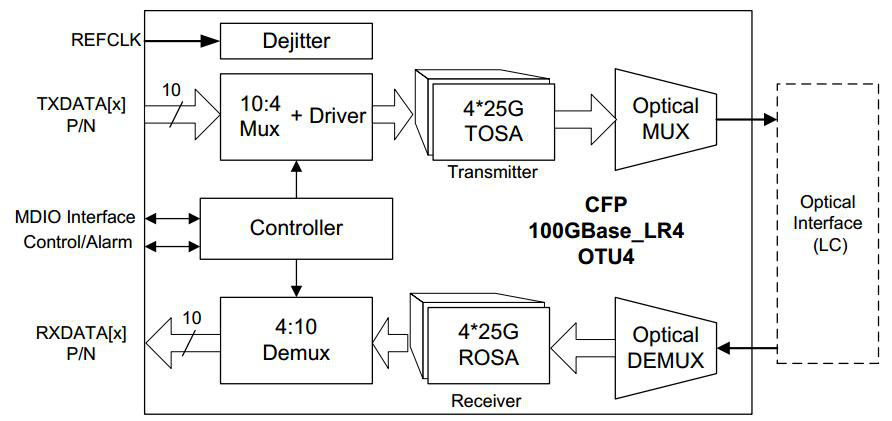

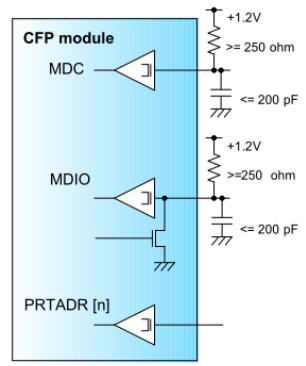

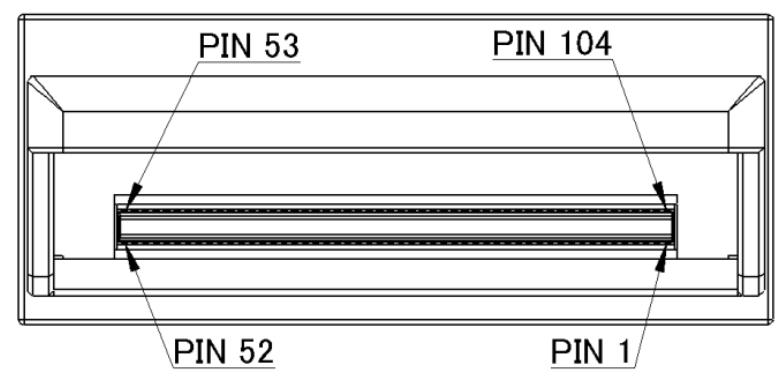

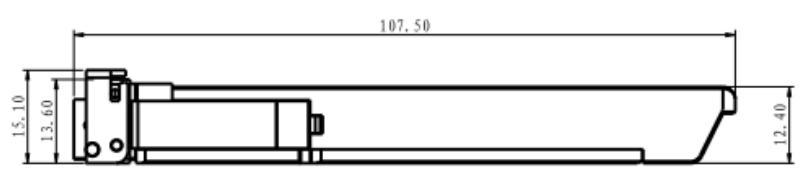

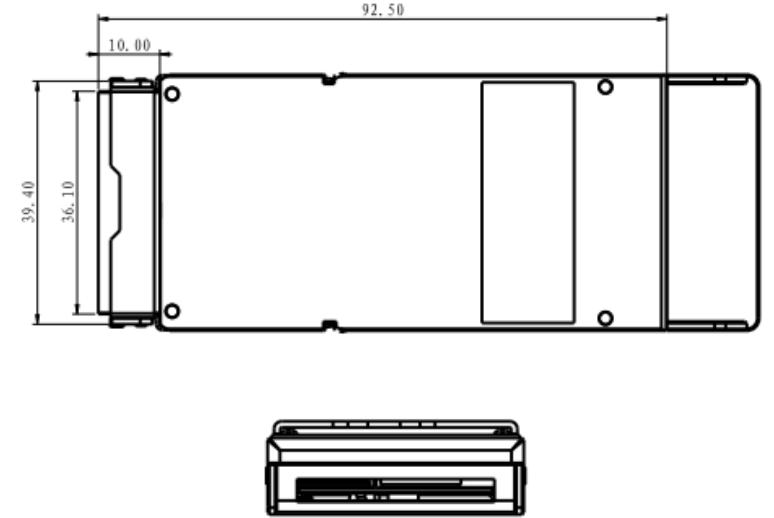

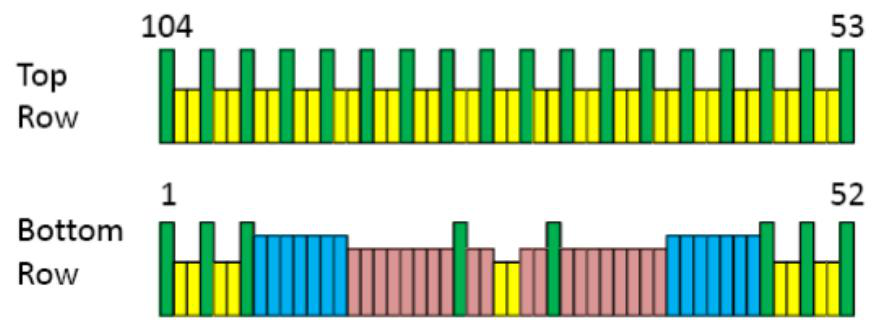

The TC2-HG10-31DCR CFP2 transceiver is designed for use in 100 Gigabit Ethernet links over 10km single-mode fiber. It complies with CFP2 MSA CFP2 HW and IEEE 802.3ba 100GBASE-LR4 standards. Digital diagnostics are available via MDIO as specified in the CFP2 MSA Management Interface Specification. The transceiver is optimized for high performance and cost efficiency, providing solutions for Datacom and Telecom applications. It is RoHS-6 compliant and lead-free per Directive 2002/95/EC.
Save to Favorites
Overview
Specifications

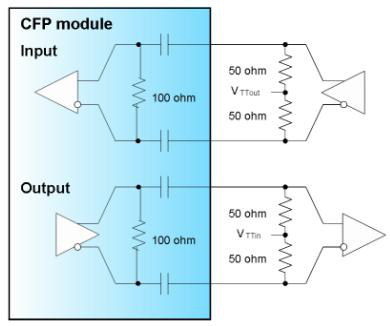

| Parameter | Value |
|---|---|
| Data Rate | 103.125Gbps |
| Laser | 4-LANE: 1295.56, 1300.05, 1304.58, 1309.14 |
| Fiber Type | SMF |
| Distance | 10km |
| Optical Interface | LC |
| Bail Color | Blue |
| Operating Case Temperature | 0~70°C |
| DDMI | YES |
| Storage Temperature | -40~85°C |
| Supply Voltage | -0.3~3.6V |
| Operating Humidity | 5~85% |
| Power Dissipation | 9W |
| Low Power Dissipation | 2W |
| Input High Voltage | 2~Vcc+0.3V |
| Input Low Voltage | -0.3~0.8V |
| Input Leakage Current | -10~10mA |
| Output High Voltage | Vcc-0.2~Vcc+0.3V |
| Output Low Voltage | -0.3~0.2V |
| Minimum Pulse Width of Control Pin Signal | 100us |
| Reference Clock Impedance | 80~120ohm |
| Reference Clock Frequency | 1/64 of host lane rate |
| Reference Clock Frequency Stability | -100~100ppm |
| Input Differential Voltage | 400~1200mV |
| RMS Jitter | 10ps |
| Clock Duty Cycle | 40~60% |
| Clock Rise/Fall Time 10/90% | 200~1250ps |
| Signal Rate Tolerance | -100~100ppm |
| AC Common-mode Input Voltage | 20mV |
| Differential Input Return Loss | See Equation(83B-7) of IEEE802.3ba-2010 |
| Total Input Jitter Tolerance | 0.62UI |
| Deterministic Input Jitter Tolerance | 0.42UI |

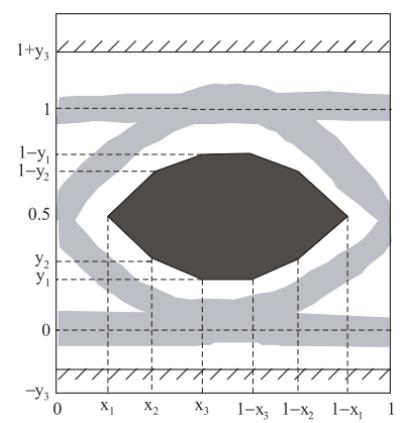

| Optical Eye Mask | {0.25,0.4,0.45,0.25,0.28,0.4} |
| Signal Rate Tolerance (Receiver) | -100~100ppm |
| Single-ended output voltage | -0.4~4V |
| Output AC Common-mode Voltage (RMS) | 15mV |
| Output Transition Time | 15ps |
| Differential Output Return Loss | See Equation(83B-5) of IEEE802.3ba-2010 |
| Total Jitter | 0.43UI |
| Channel Data Rate | 25.7812Gbps |
| Data Rate Variation | -100~100ppm |
| Centre Wavelength | 1294.53~1310.19nm |
| Total Average Launch Power | 10.5dBm |
| Average Launch Power per Lane | -4.3~4.5dBm |
| Optical Modulation Amplitude per Lane | -1.3~4.5dBm |
| Transmitter Reflectance | -12dB |
| Receiver Reflectance | -26dB |
| Receiver Sensitivity (OMA) per Lane | -8.6dBm |
| Stressed Receiver Sensitivity per Lane | -6.8dBm |
