Home All Products Fiber Optic Components Transmitters and Receivers TQS-FGM1-85DCR 40G QSFP+ SR4

Transmitters and Receivers

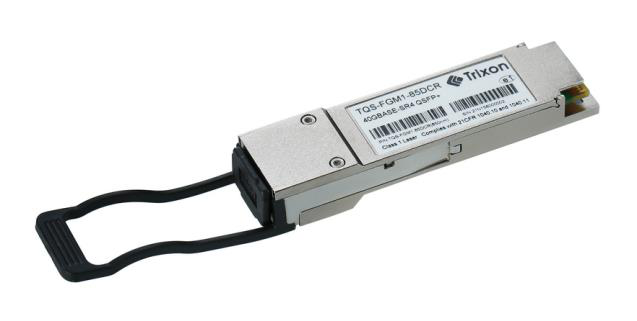

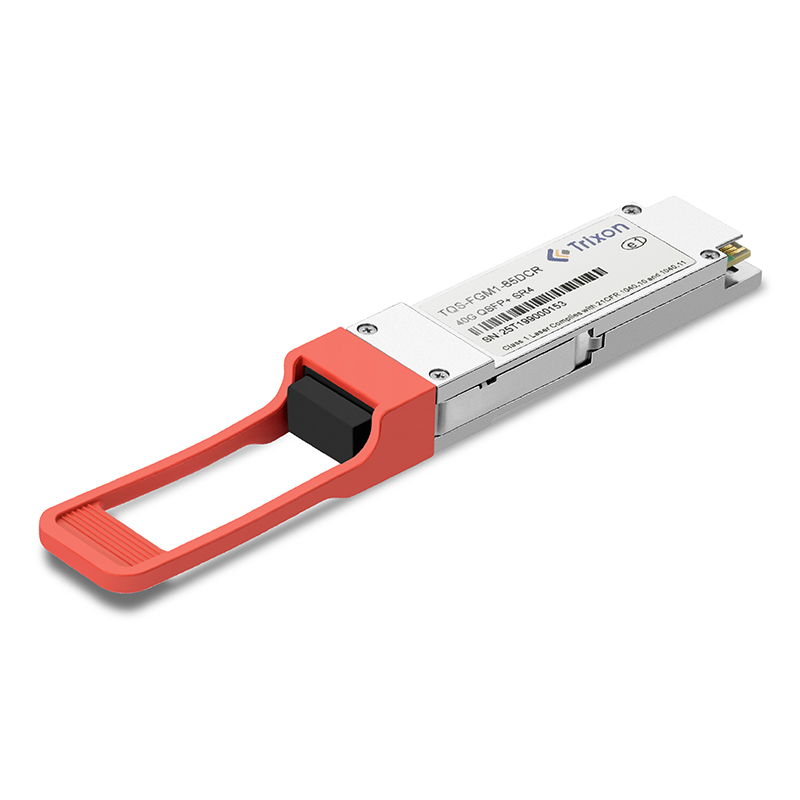

TQS-FGM1-85DCR 40G QSFP+ SR4

Supplier

Trixontech

Part Number

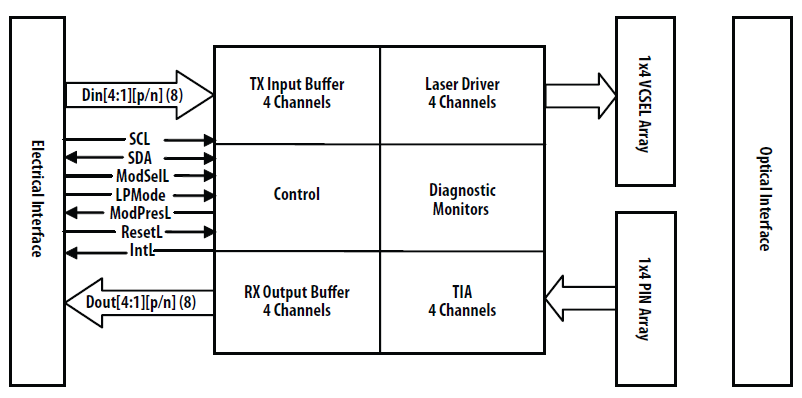

Overview

Specifications

Parameter	Value
Supply Voltage	-0.5~3.6V
LVTTL Input Voltage	-0.5~VCC+0.5V
LVTTL Output Current	0~15mA
Voltage on Open Collector Output	0~6V
Power Supply Voltage	3.1~3.5V
Power Supply Current	350mA
Total Power Consumption	1.5W
Fiber Length (OM3)	0.5~100m
Fiber Length (OM4)	0.5~150m
Data Rate, each Lane	10.3125~10.5GbpsGbps
Power Consumption (XLPPI)	1.5W
Supply Current	0.75~1.0A
Control I/O Voltage, High	2.0~VCCV
Control I/O Voltage, Low	0~0.7V
Inter-Channel Skew	0~150ps
Transceiver Power On Initialization Time	0~2000ms
RESETL Duration	0~10us
RESETL De-assert time	0~100ms
Power on time	0~100ms
AC Common mode Voltage Tolerance (RMS)	15mV
Tx Input Diff Voltage	90~1600mV
Tx Input Diff Impedance	80~120Ω
Differential Input Return Loss	10MHz~11.1GHz
AC Common mode Voltage Tolerance (RMS)	7.5mV
Differential Output Return Loss	10MHz~11.1GHz
Common-mode Output Return Loss	10MHz~11.1GHz
Rx Output Diff Voltage	600~800mV
Rx Output Rise and Fall Time	35ps
RMS Spectral Width	0.65nm
Average Optical Power, each Lane	-7.6~+1dBm
Optical Modulation Amplitude	-6~+3dBm
TDP, each Lane	4dB
Extinction Ratio	3dB
Optical Return Loss Tolerance	12dB
Transmitter Eye Mask Definition	Complied with IEEE802.3ba
Average Launch Power OFF Transmitter, each Lane	-30dBm
Average Power at Receiver Input, each Lane	-9.5~2.4dBm
Receiver Reflectance	-12dB
LOSS Assert	-30dBm
Los Dessert	-14dBm
Los Hysteresis	0.5dB

Applications

1. Data Center 2. InfiniBand QDR, DDR and SDR 3. 40G Ethernet

Key Features

1. 4 independent full-duplex channels 2. Up to 10.5Gbps data rate per channel 3. MTP/MPO optical connector 4. QSFP MSA (SFF-8436) compliant 5. Digital diagnostic capabilities 6. Capable of over 100m transmission on OM3 multi-mode fiber 7. CML compatible electrical I/O 8. Single +3.3V power supply 9. Operating case temperature: 0~70°C 10. XLPPI electric interface (with 1.5W Max power) 11. RoHS-6 compliant

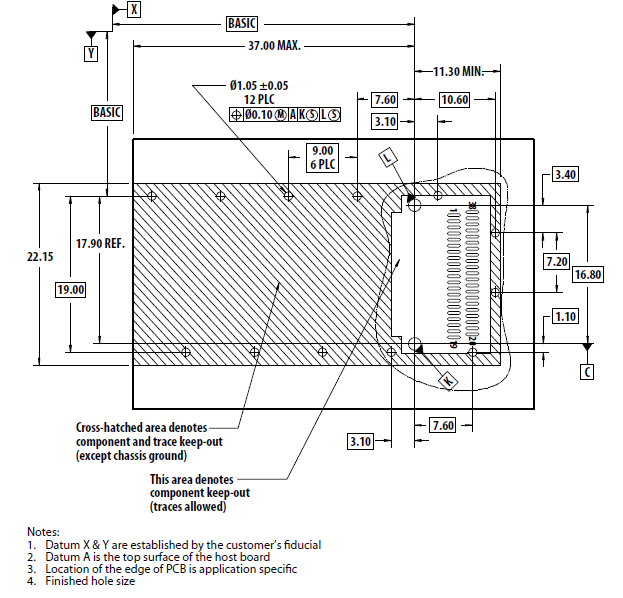

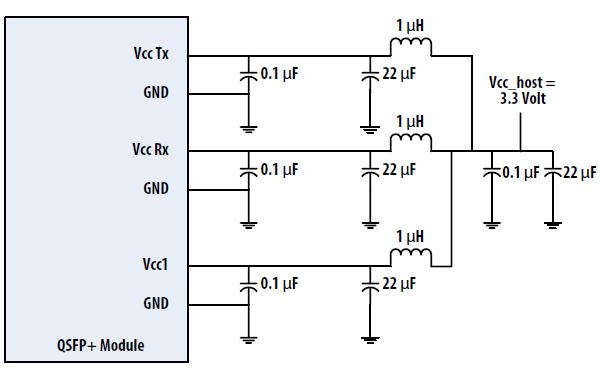

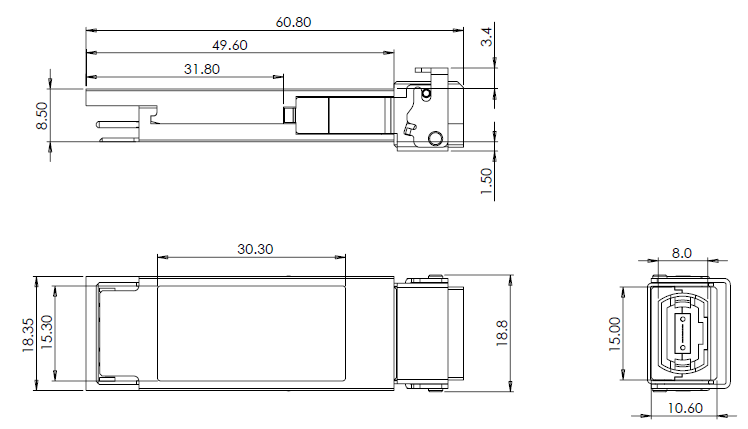

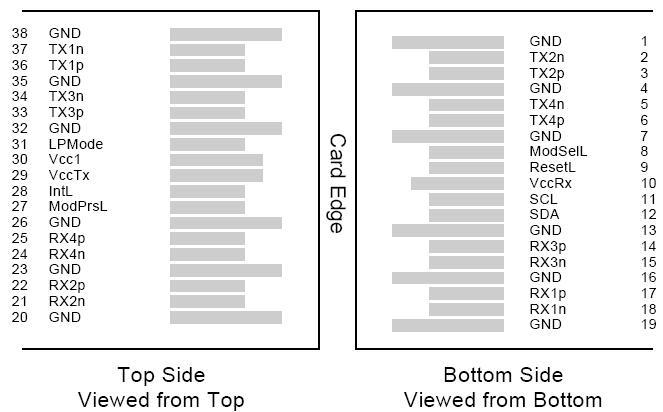

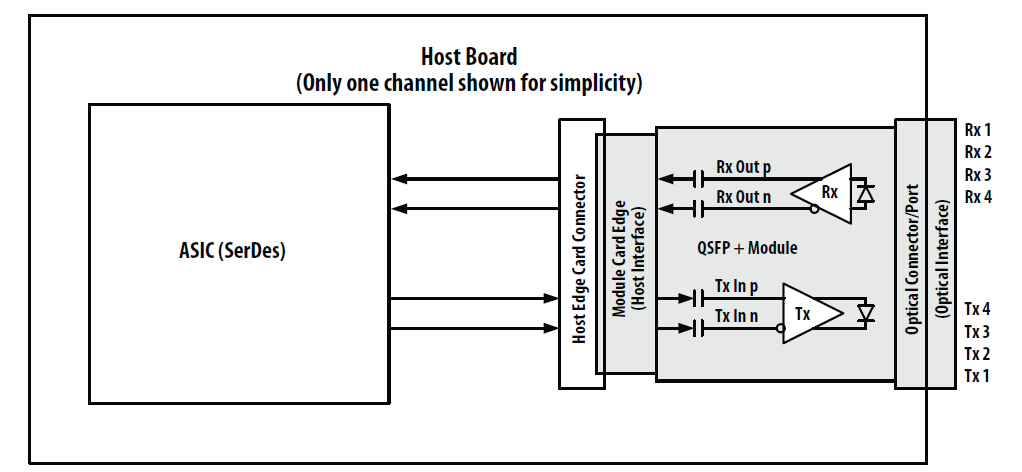

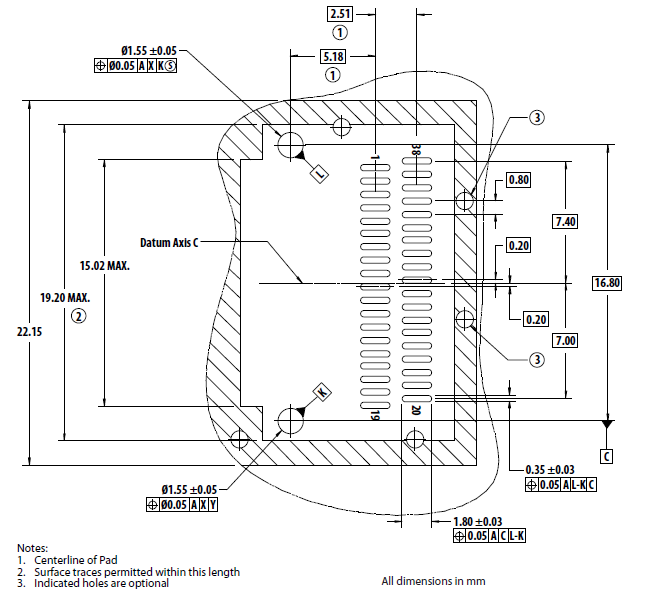

Datasheet

Product Datasheet

PDF

Download
