40G QSFP+ PSM4

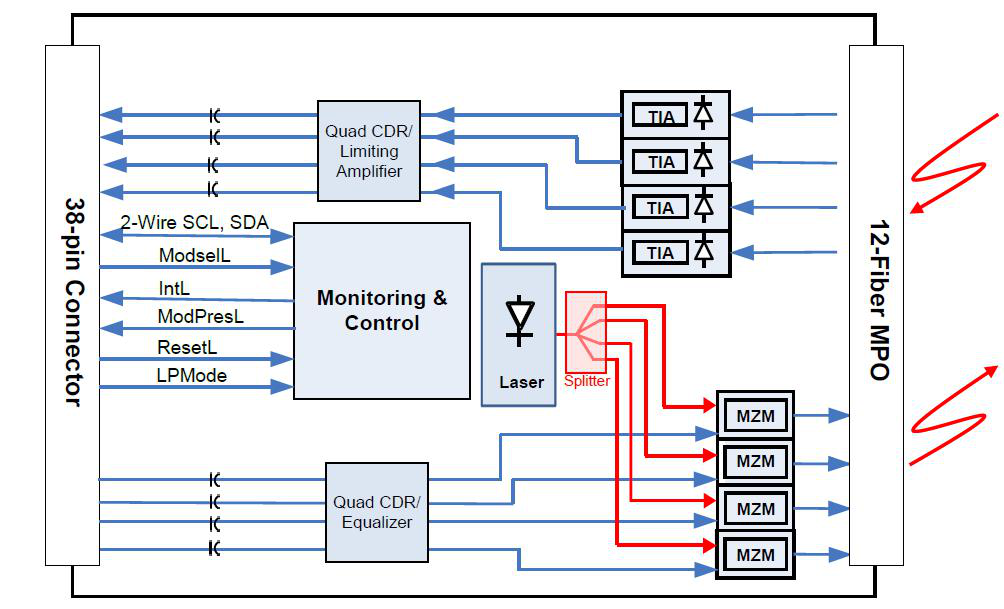

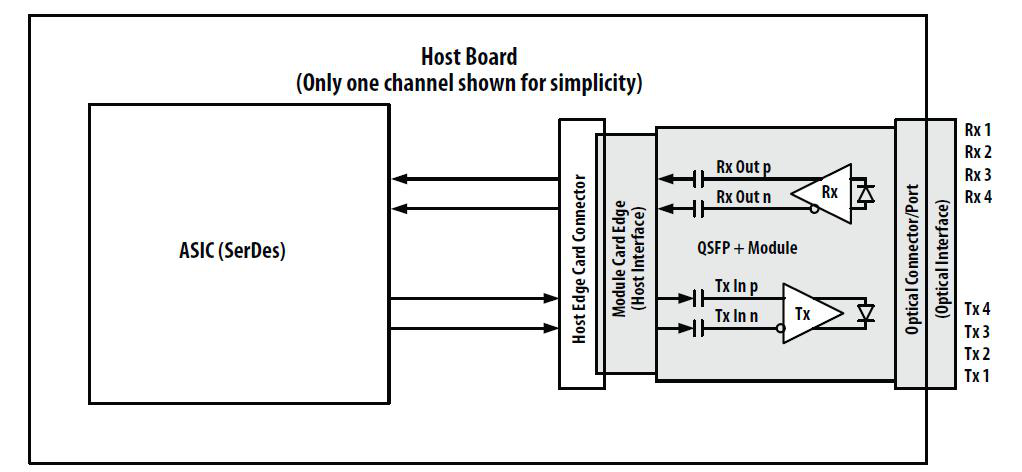

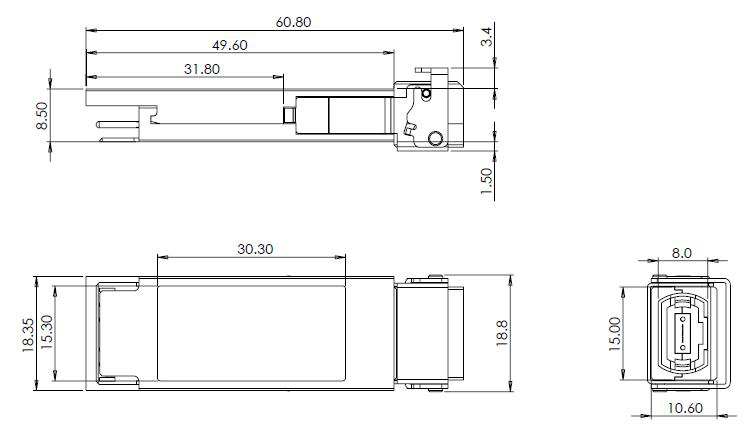

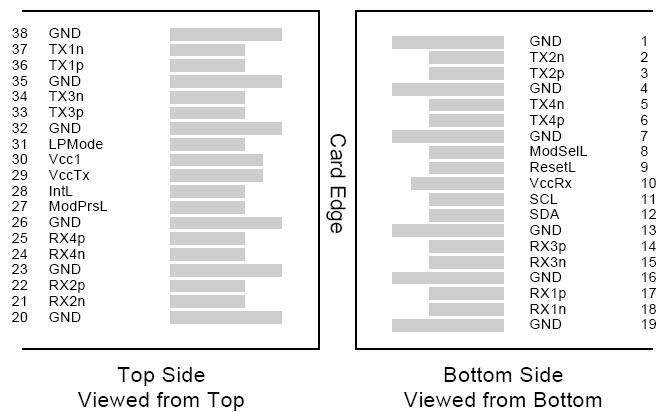

The TQS-FG10-31DCM is a parallel 40Gbps Quad Small Form-factor Pluggable (QSFP) optical module designed for high-density and cost-effective optical communication. It features 4 independent full-duplex channels, each capable of 10.3125Gbps data rate over 10km transmission on single-mode fiber (SMF). The module operates with a single +3.3V power supply and offers digital diagnostic capabilities.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Data Rate | 40Gbps |
| Laser Type | 1310nm-DFB |
| Fiber Type | SMF |
| Distance | 10km |
| Optical Interface | MPO |
| Bail Color | Beige |
| Operating Case Temperature | 0~70°C |
| DDMI | Y |
| Storage Temperature | -40~85°C |
| Relative Humidity | 5~85% |

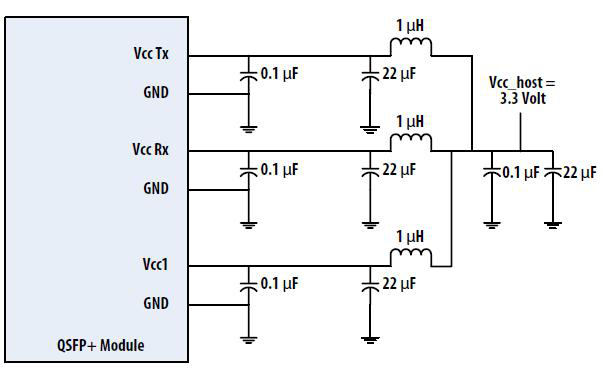

| Supply Voltage | 3.135~3.465V |
| Supply Current | ≤1.1A |
| Power Consumption | <2.5W |
| Fiber Length | 10km |
| Data Rate, each Lane | 10.3125Gbps |
| Control I/O Voltage, High | 2.0~VCC |
| Control I/O Voltage, Low | 0~0.8V |
| Center Wavelength (Transmitter) | 1260~1355nm |
| Side-mode Suppression Ratio | ≥30nm |
| Average Optical Power, each Lane | -8.2~+0.5dBm |
| Extinction Ratio | ≥3.5dB |
| Transmitter Eye Mask Definition | Complied with 100GBASE-R |
| Average Launch Power OFF Transmitter, each Lane | ≤-30dBm |
| Center Wavelength (Receiver) | 1260~1355nm |
| Average Power at Receiver Input, each Lane | -12.5~+0.5dBm |
| Receiver Reflectance | ≤-12dB |
| Los Assert | -30~-12dBm |
| Los De-assert | -12dBm |
| Los Hysteresis | 0.5~4dB |
Applications
Key Features
Datasheet
