40G QSFP+ LR4 and ER4 Transceiver

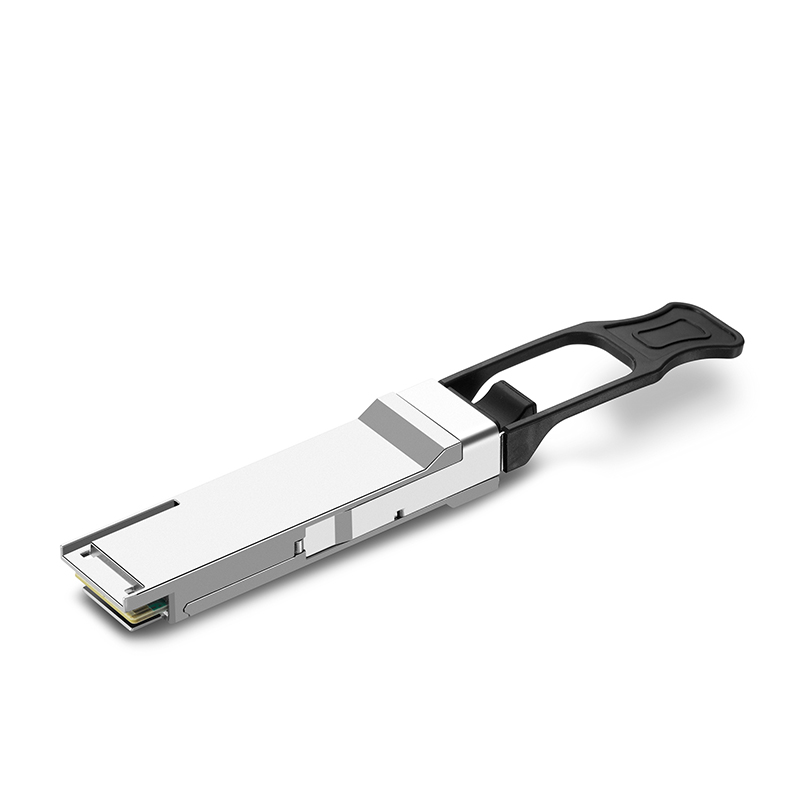

The Trixon 40G QSFP+ LR4 and ER4 transceiver is a 4x10G hot-pluggable optical transceiver designed for high-speed optical connectivity. It supports up to 40km reach and utilizes CWDM channels with wavelengths in the 1300nm range.
Save to Favorites
Overview

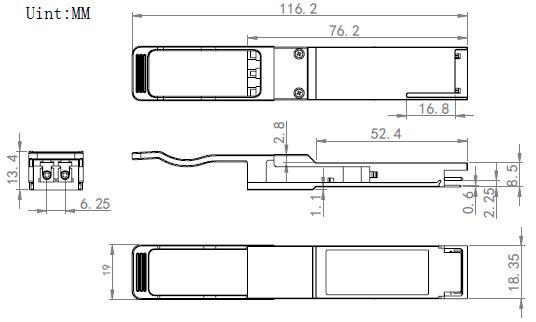

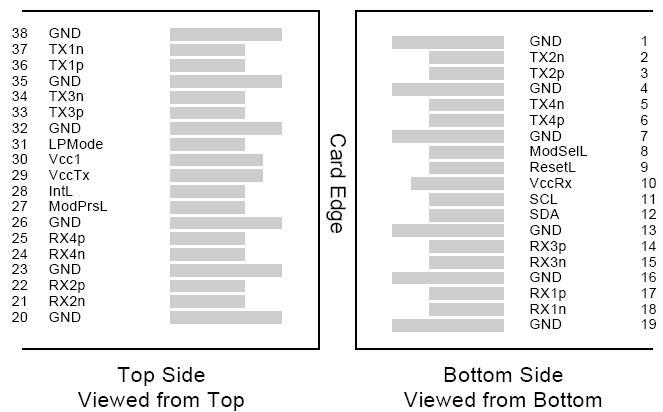

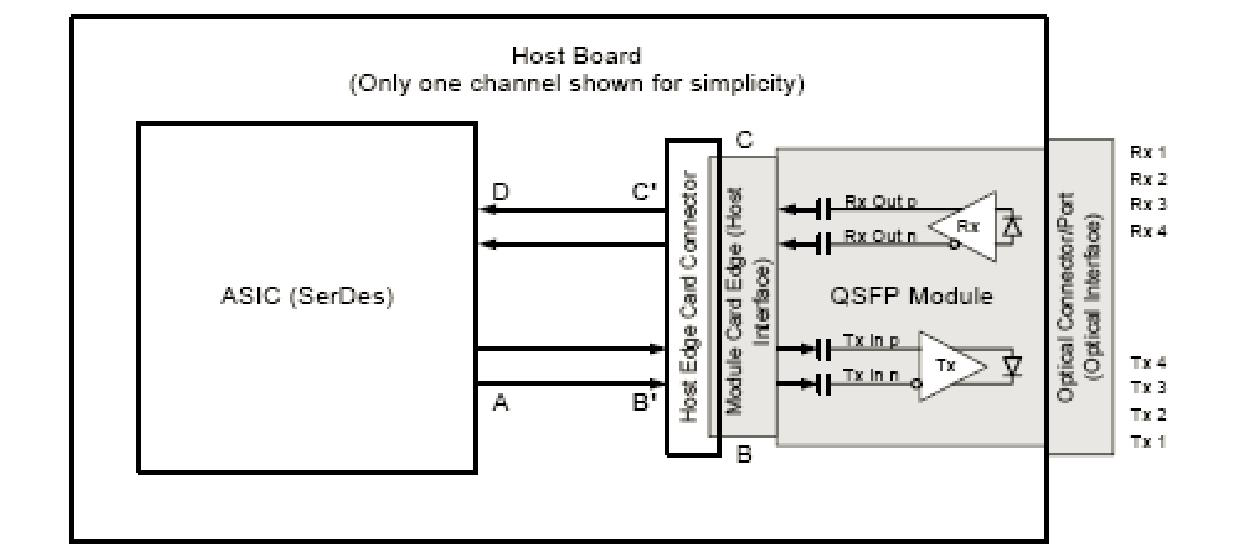

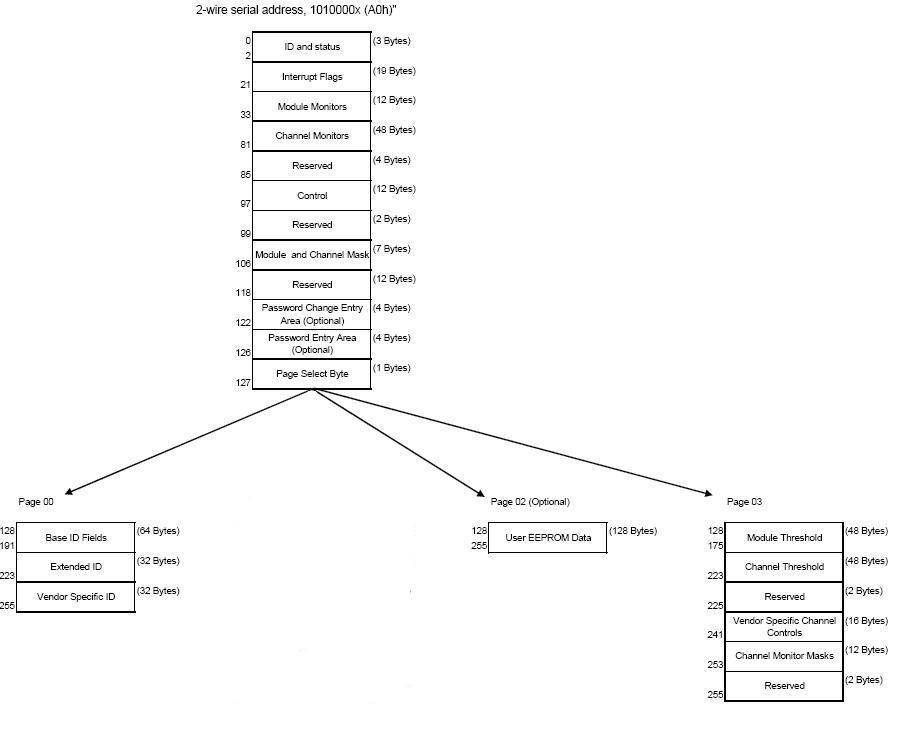

Specifications
| Parameter | Value |
|---|---|
| Data Rate | 40Gbps, 45Gbps, 41.25Gbps |
| Laser Type | 1271nm DFB, 1291nm DFB, 1311nm DFB, 1331nm DFB |
| Fiber Type | SMF |
| Distance | 10km, 40km |
| Optical Interface | LC |
| Operating Temperature | -5°C~70°C |
| DDMI Support | Y |
| Storage Temperature | -40°C~85°C |
| Supply Voltage | 0~+3.6V |
| Operating Humidity | 0~85% |
| Power Supply Voltage | 3.135V~3.465V |
| Power Supply Current | 1100mA |
| I2C Clock Frequency | 100kHz |
| Transmitter Signal Rate | 10.3125Gbps, 11.2Gbps |
| Spectral Width (-20dB) | 1nm |
| Optical Return Loss Tolerance | 20dB |
| Average Output Power | -7~2.3dBm, -3.7~4.5dBm |
| Extinction Ratio | 3.5dB, 5.5dB, 6dB |
| Receiver Sensitivity | -11.5dBm, -18dBm |
| Receiver Overload | 2.3dBm, 3.8dBm |
| LOS De-Assert | -11.5dBm, -19dBm |
| LOS Assert | -20dBm, -30dBm |
| Los Hysteresis | 0.5~5dB |
| Centre Wavelength | 1264.5~1277.5nm, 1284.5~1297.5nm, 1304.5~1317.5nm, 1324.5~1337.5nm |
