TPB-X540-xxDCR

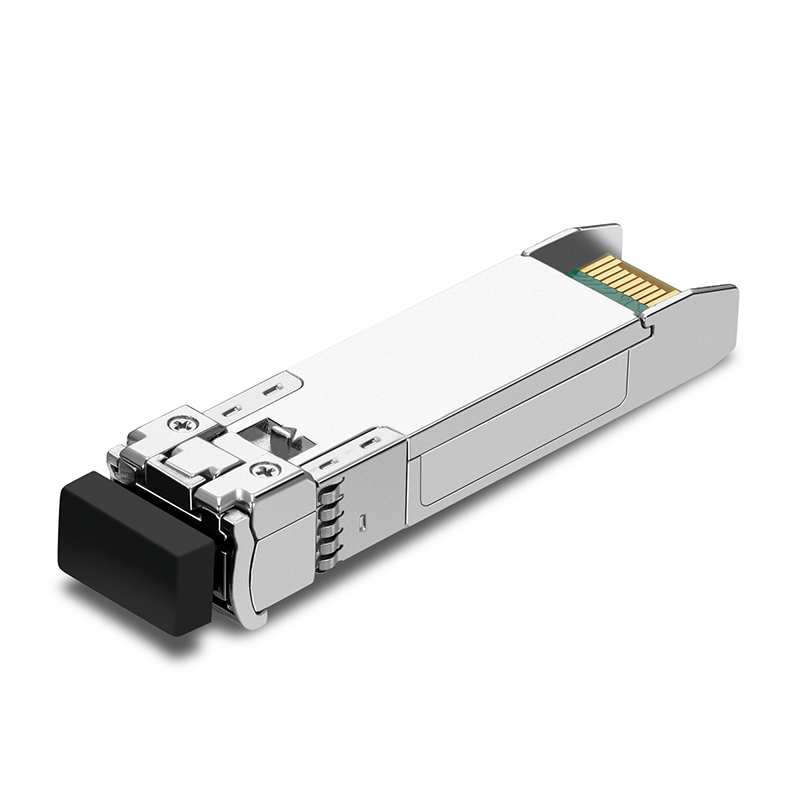

The TPB-X540-xxDCR is a 1310nm/1270nm DFB 25Gigabit SFP28 transceiver. It is designed to transmit and receive optical data over 9/125μm single-mode optical fiber (SMF) and support up to 40km. The module has a duplex LC optical interface and all mechanical characteristics are compliant with the current SFP28 specification (SFF-8431 and SFF-8432).
Save to Favorites
Overview

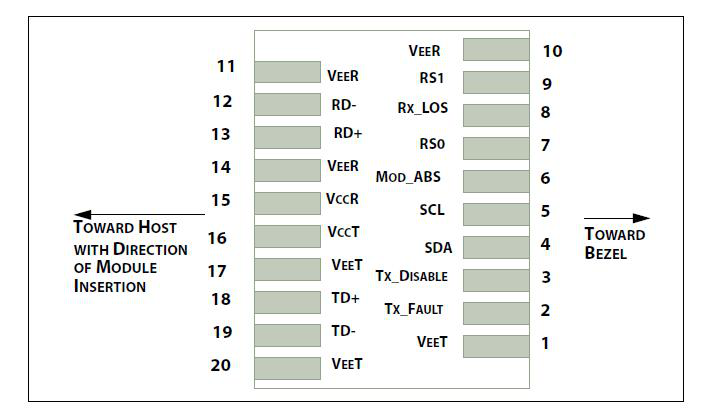

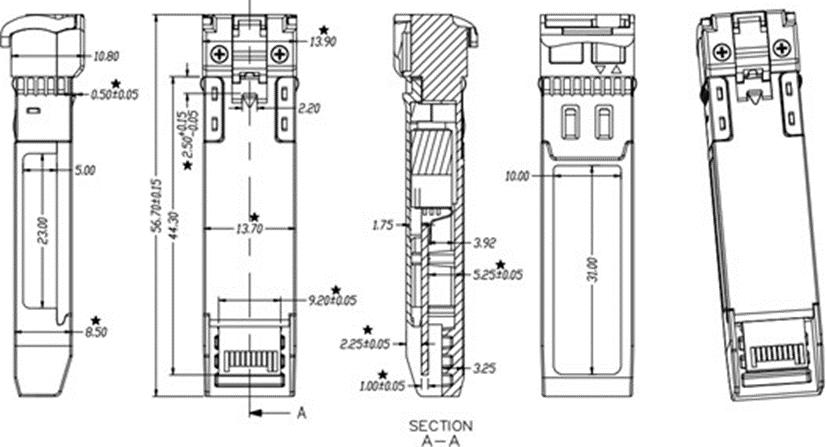

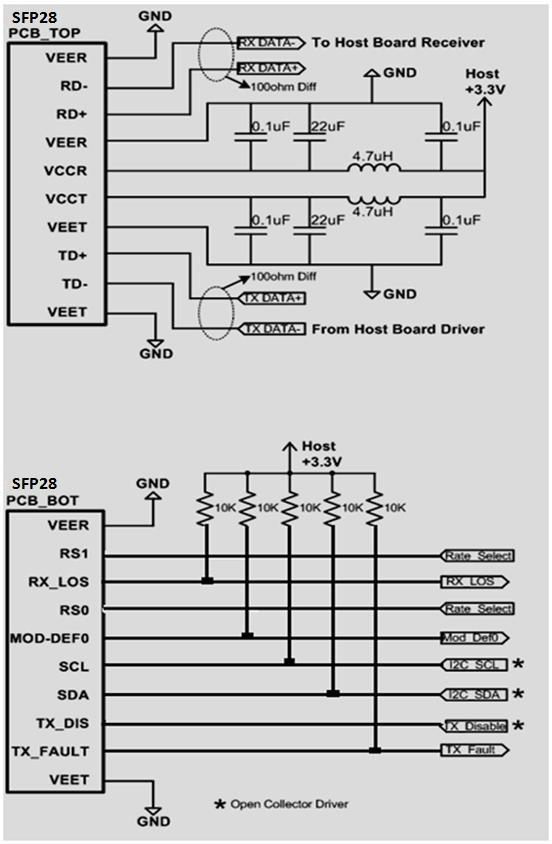

Specifications
| Parameter | Value |
|---|---|
| Data Rate | 25Gbps |
| Laser | 1310nm-DFB, 1270nm-DFB |
| Fiber Type | SMF |
| Distance | 40km |
| Optical Interface | LC |
| Operating Case Temperature | 0~70°C (ST), -40~85°C (IT) |
| DDMI | Y |
| Storage Temperature | -20~85°C |
| Relative Humidity | ≤85% |
| Supply Voltage | 3.1~3.5V |
| Supply Current | ≤360mA |
| Fiber Length | 10km |
| Control I/O Voltage, High | 2.0~VCC V |
| Control I/O Voltage, Low | 0~0.8V |
| Tx Input Diff Voltage | 180~800mV |
| Tx Input Diff Impedance | 90~100Ω |
| Rx Output Diff Voltage | 300~850mV |
| Rx Output Diff Impedance | 90~110Ω |
| Center Wavelength Transmitter | 1260~1280nm, 1300~1320nm |
| Spectral Width (-20dB) | ≤1nm |
| Average Optical Power, each Lane | 0~+5dBm |
| Extinction Ratio | ≥5dB |
| Center Wavelength Receiver | 1300~1320nm, 1260~1280nm |
| Average Power at Receiver Input, each Lane | ≤-16dBm |
| Receiver Overload | 0.5dBm |
| LOSS De-Assert | ≤-20dBm |
| LOSS Assert | ≤-35dBm |
| LOSS Hysteresis | 0.5dB |
