10GE BIDI XFP Series

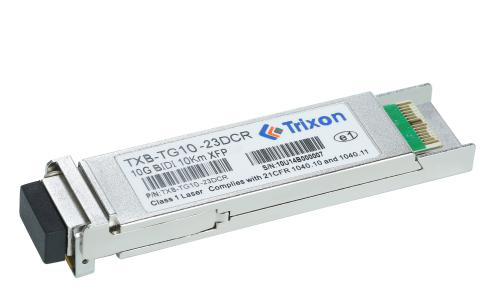

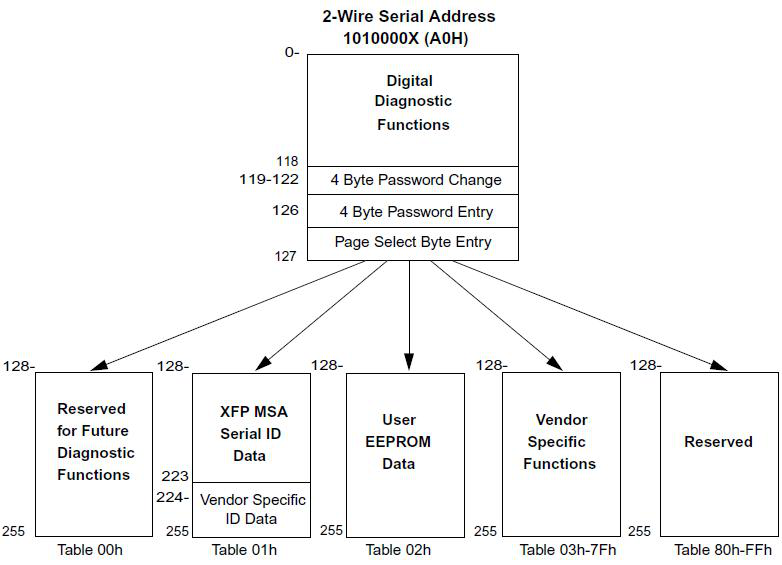

Trixon 10GE BIDI XFP series products are small form factor (10 Gb/s) pluggable transceivers for bi-directional optical data communications, with a transmit distance of up to 60km. They comply with XFP multi-source agreement (MSA: SFF-8077i) and are RoHS compliant. The digital diagnostics functions and standard transceiver serial ID information are available via a 2-wire serial interface according to XFP MSA.
Save to Favorites

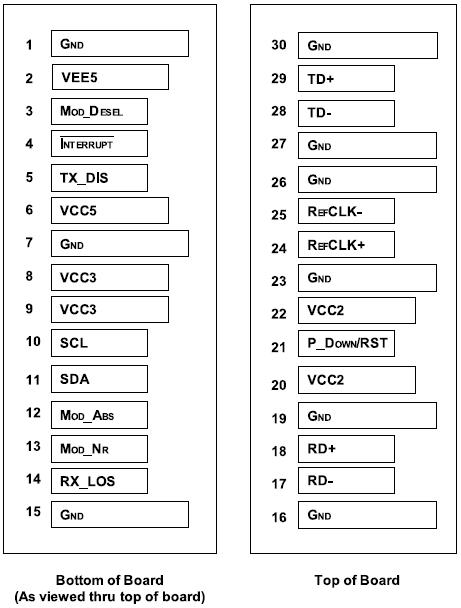

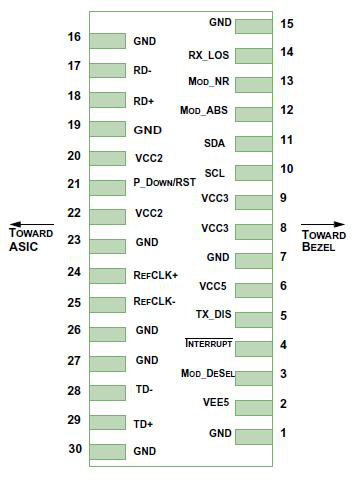

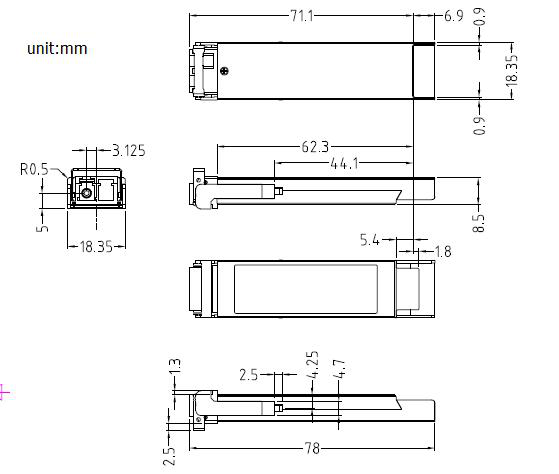

Overview
Specifications

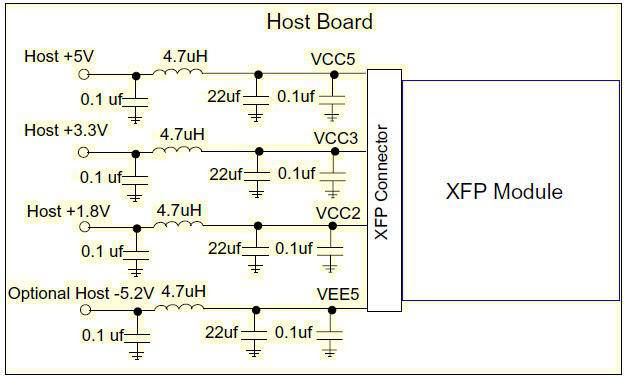

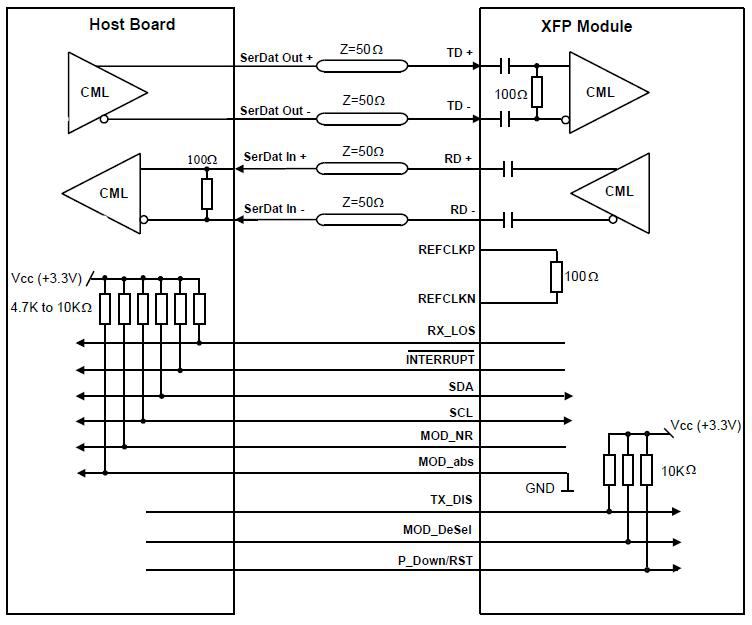

| Parameter | Value |
|---|---|
| Data Rate | 10.3Gbps |
| Wavelength TX/RX | 1270nm-DFB/1330nm-PIN, 1330nm-DFB/1270nm-PIN, 1270nm-DFB/1330nm-APD |
| Fiber Type | SMF |
| Distance | 10km, 40km, 60km |
| Optical Interface | LC |
| Operating Case Temperature | -5°C~+70°C |
| Storage Temperature | -40°C~+85°C |
| Supply Voltage | 0~4V |
| Operating Humidity | 5~95% |
| Power Supply Current | 450mA |
| Centre Wavelength | 1260~1280nm, 1320~1340nm |
| Side Mode Suppression Ratio | 30dB |
| Spectral Width (-20dB) | 1nm |
| Average Output Power | -5~0dBm, +1~+5dBm, +1~+6dBm |
| Extinction Ratio | 3.5dB |
| Average Power of OFF Transmitter | -30dBm |
| Transmitter Dispersion Penalty | 2dB |
| Relative Intensity Noise | -128dB/Hz |
| Receiver Sensitivity | -14dBm, -15dBm, -20dBm |
| Receiver Overload | 0.5dBm |
| Los De-assert | -18dBm |
| Los Assert | -30dBm |
| Los Hysteresis | 0.5~4dB |
| TX CML Inputs Voltage (Differential) | 150~950mVpp |
| Input Impedance (Differential) | 100ohm |
| Tx_DISABLE Input Voltage – High | 1.7~Vcc+0.3V |
| Tx_DISABLE Input Voltage – Low | -0.3~0.8V |
| Tx_FAULT Output Voltage – High | 2~Vcc |
| Tx_FAULT Output Voltage – Low | 0~0.4V |
| CML Outputs Voltage (Differential) | 300~850mVpp |
| Output Impedance (Differential) | 100ohm |
| Rx_LOS Output Voltage – High | 2~Vcc |
| Rx_LOS Output Voltage – Low | 0~0.4V |
| MOD_DEF (0:2) | 2.5V |
| TX Disable Assert Time | 100us |
| TX Disable Negate Time | 2ms |
| RX_LOS Assert Time | 100us |
| RX_LOS De-Assert Time | 100us |
