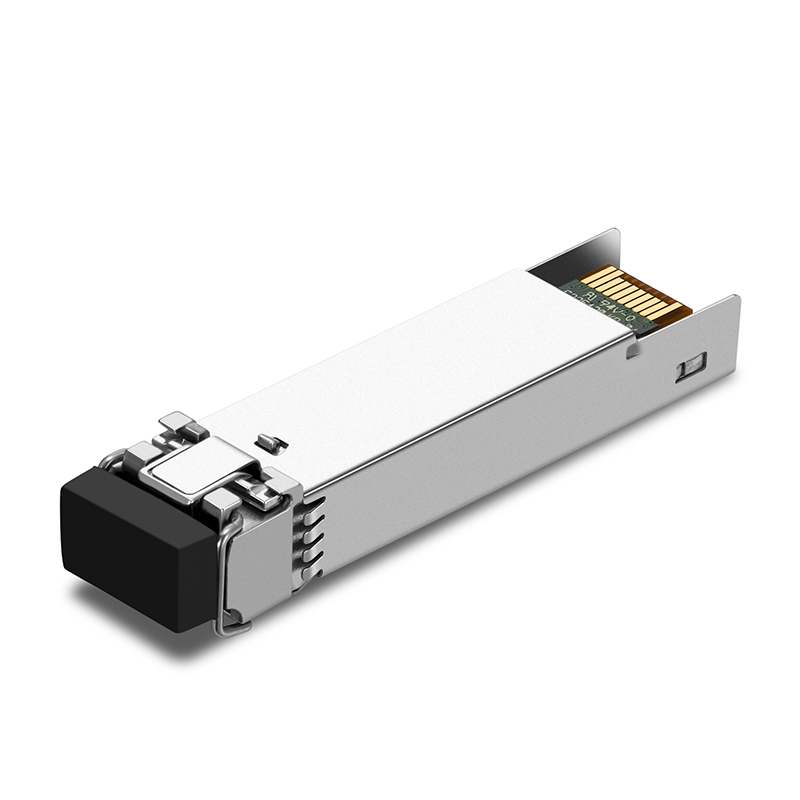

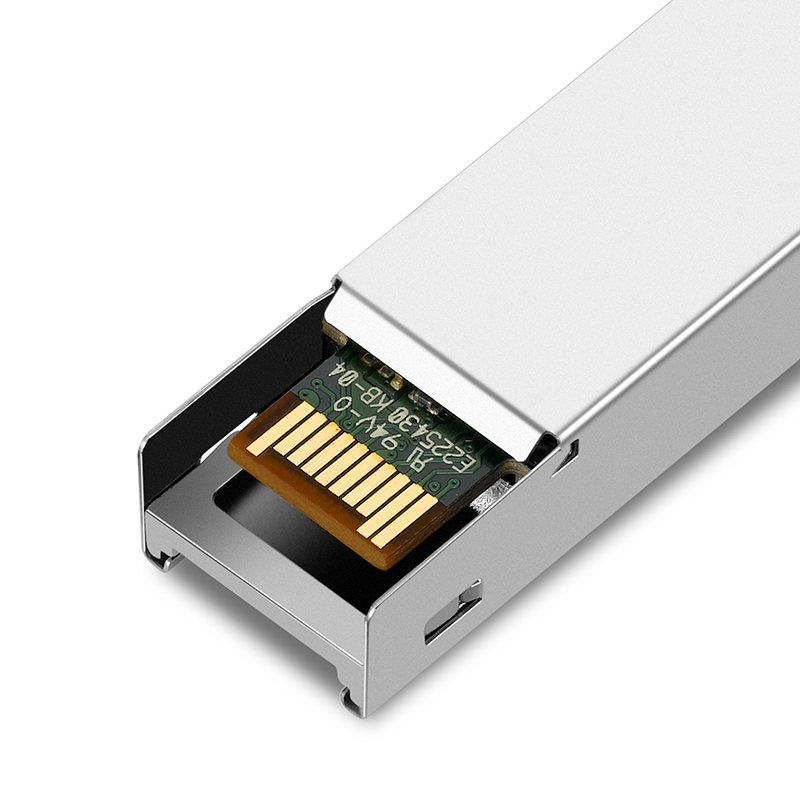

DWDM SFP+ Transceiver With Digital Diagnostic Function
The DWDM SFP+ transceiver is designed for use in 10G DWDM networks, compliant with SFF-8431, SFF-8432, and IEEE802.3ae standards. It operates on single-mode fiber and supports DWDM wavelengths from 1528nm to 1566nm, making it ideal for metropolitan access and core networks. It features digital diagnostics for real-time monitoring and is RoHS-6 compliant.
Save to Favorites
Overview
Specifications

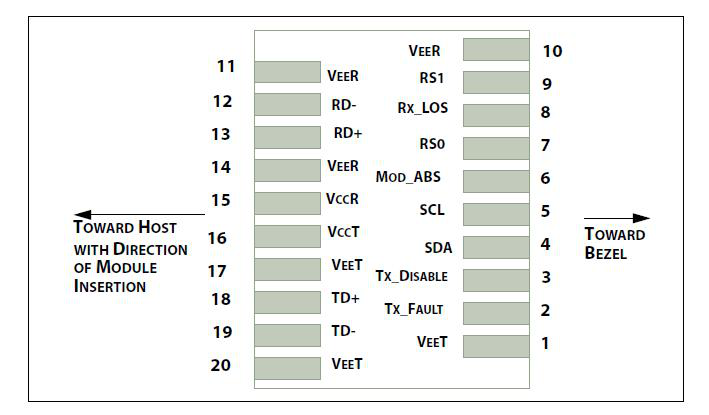

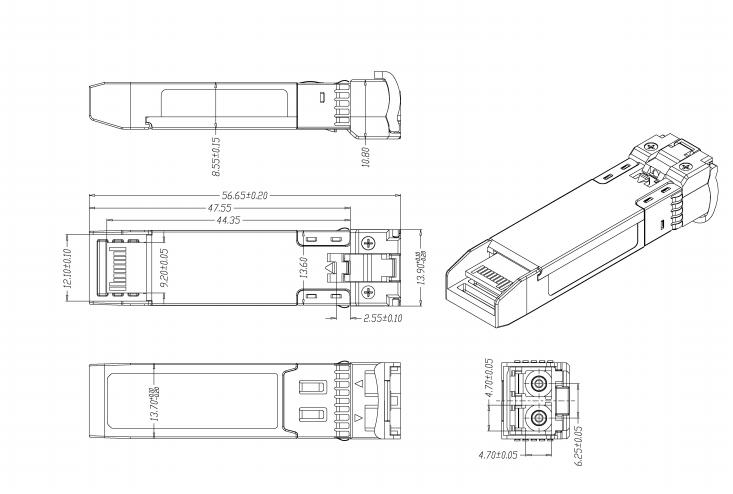

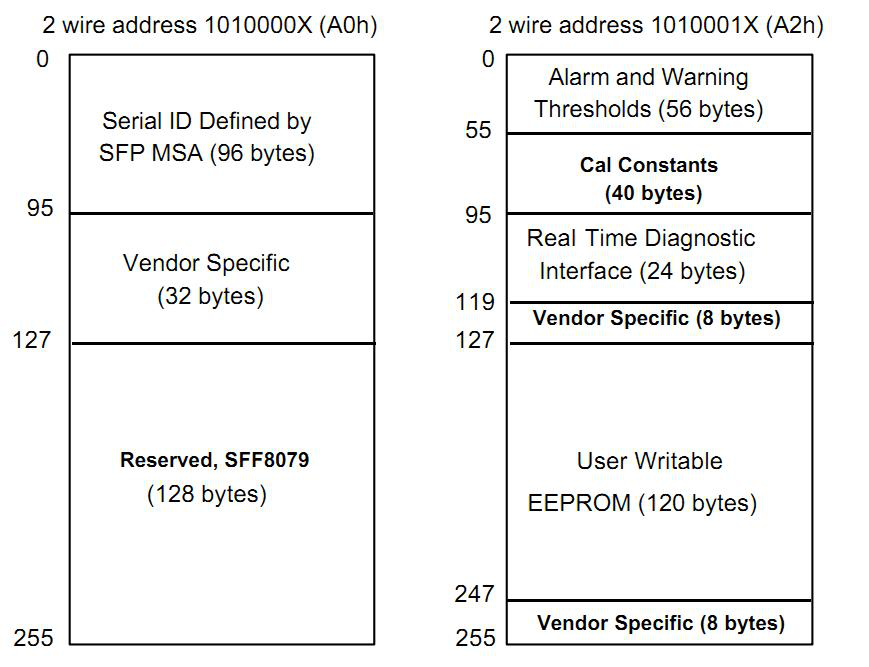

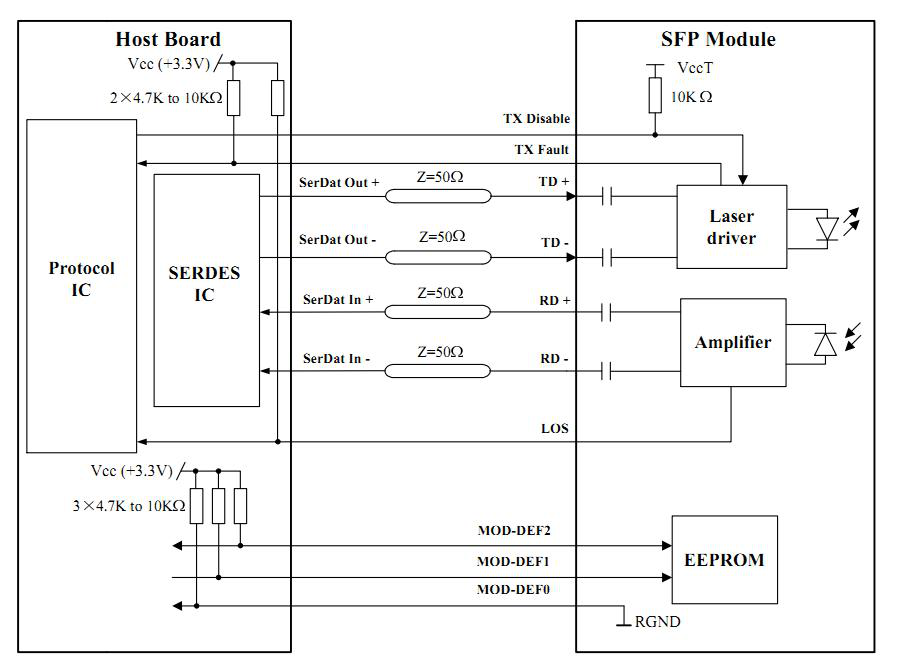

| Parameter | Value |
|---|---|
| Data Rate | 10.3Gbps |
| Laser and Receiver | DWDM EML and APD |
| Fiber Type | SMF |
| Link Budget | 25dB |
| Optical Interface | LC |
| DDMI | YES |
| Storage Temperature | -40~+85°C |
| Supply Voltage | 0~3.6V |
| Operating Humidity | 5~85% |
| Operating Case Temperature | 0~70°C |
| Power Supply Voltage | 3.14~3.47V |
| Supply Current | 550mA |
| CML Inputs (Differential) | 180~800mVpp |
| Input Impedance (Differential) | 100ohm |
| Tx_DISABLE Input Voltage - High | 2~Vcc+0.3V |
| Tx_DISABLE Input Voltage - Low | 0~0.8V |
| Tx_FAULT Output Voltage - High | 2~Vcc+0.3V |
| Tx_FAULT Output Voltage - Low | 0~0.8V |
| CML Outputs (Differential) | 340~800mVpp |
| Output Impedance (Differential) | 100ohm |
| Rx_LOS Output Voltage - High | 2V |
| Rx_LOS Output Voltage - Low | 0~0.5V |
| MOD_DEF (0:2) | Voh:2.5V, Vol:0~0.5V |
| Centre Wavelength | 1527.99~1567.13nm |
| Frequency | 191.3~196.2THz |
| Average Output Power | 1~5dBm |
| Extinction Ratio | 8.2dB |
| Side Mode Suppression Ratio | 30dB |
| Average Power of OFF Transmitter | -30dBm |
| Power Consumption | 1.8W |
| Output Optical Eye | Compliant with IEEE802.3ae |
| Sensitivity (w/o fiber) | -24dBm |
| Sensitivity (with fiber) | -22dBm |
| Receiver Overload | -7dBm |
| Los Assert | -35dBm |
| Los De-assert | -25dBm |
| Los Hysteresis | 0.5~4dB |
| Receiver Reflectance | -27dB |
