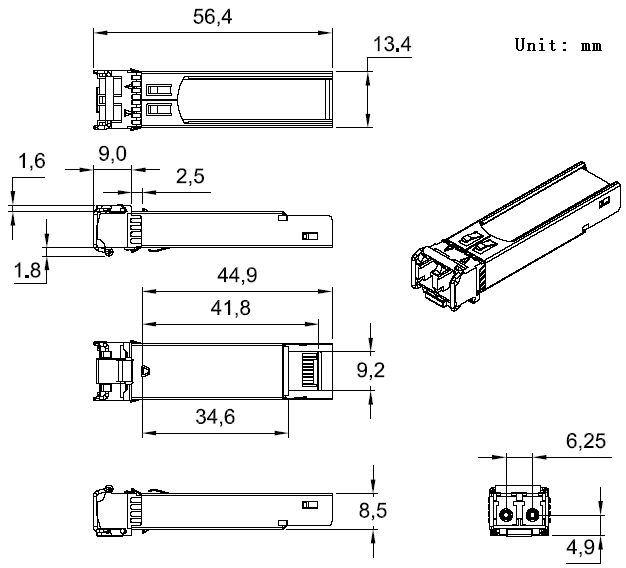

10G CWDM SFP+ Transceiver
The 10G CWDM SFP+ transceiver is designed for use in 10G CWDM networks, supporting single-mode fiber and operating at a nominal wavelength of CWDM. It complies with SFF-8431, SFF-8432, and IEEE802.3ae standards, offering digital diagnostic monitoring and RoHS 2.0 compliance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Data Rate | 10.3Gbps |
| Laser | CWDM DFB |
| Fiber Type | SMF |
| Power Budget (dB) | 14.5dB |
| Optical Interface | LC |

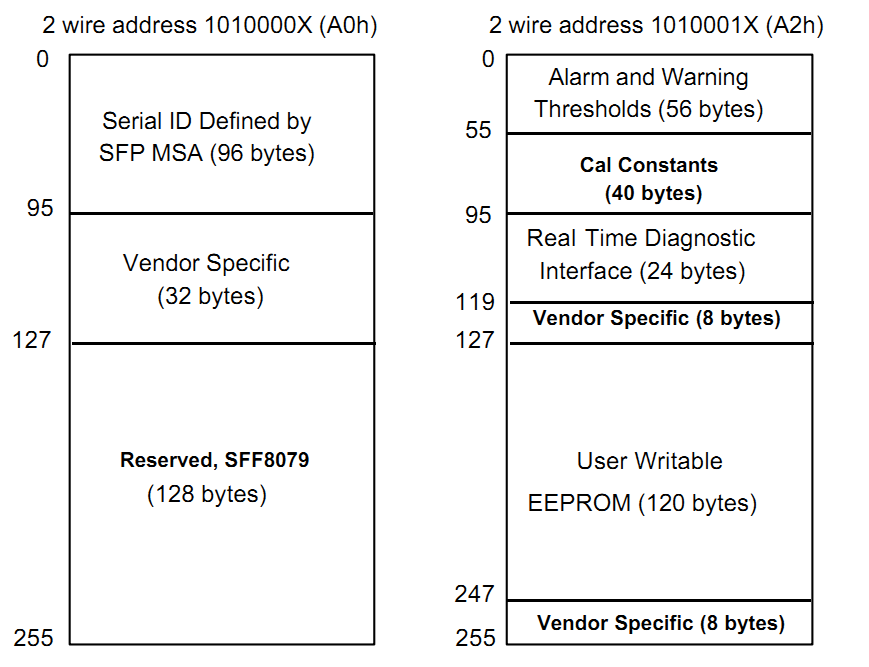

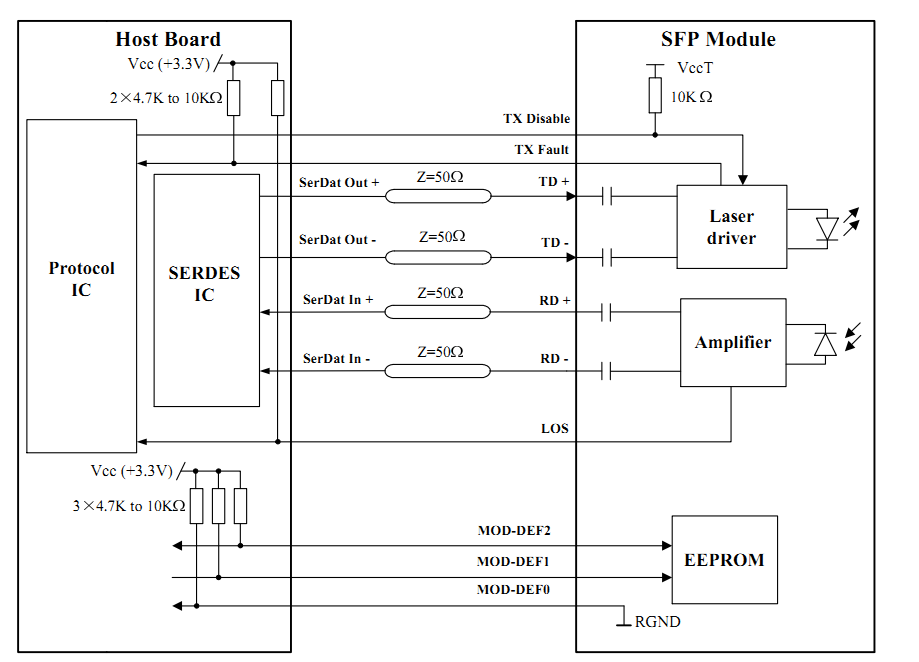

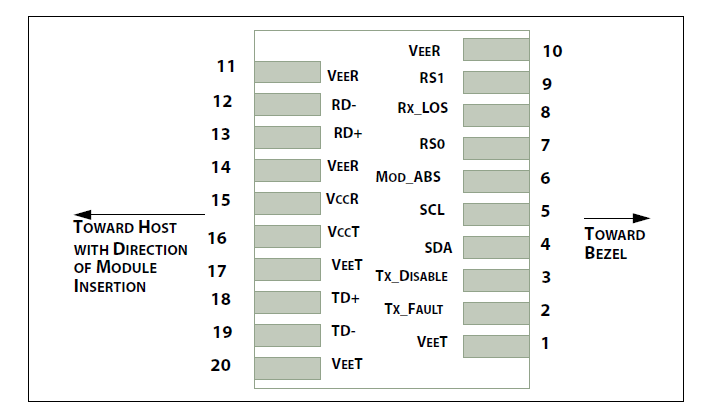

| DDMI | YES |
| Storage Temperature | -40°C~+85°C |
| Supply Voltage | 0~3.6V |
| Operating Humidity | 5~85% |
| Operating Case Temperature | 0~70°C |
| Power Supply Voltage | 3.14V~3.47V |
| Supply Current | 300mA (DML), 600mA (EML) |
| CML Inputs (Differential) | Vin: 180~1000mVpp |
| Input Impedance (Differential) | Zin: 100Ω |
| Tx_DISABLE Input Voltage - High | 2~Vcc+0.3V |
| Tx_DISABLE Input Voltage - Low | 0~0.8V |
| Tx_FAULT Output Voltage - High | 2~Vcc+0.3V |
| Tx_FAULT Output Voltage - Low | 0~0.8V |
| CML Outputs (Differential) | Vout: 350~700mVpp |
| Output Impedance (Differential) | Zout: 100Ω |
| Rx_LOS Output Voltage - High | 2V |
| Rx_LOS Output Voltage - Low | 0~0.5V |
| MOD_DEF (0:2) | VOH: 2.5V, VOL: 0~0.5V |
| Centre Wavelength | 1271nm~1571nm |
| Spectral Width | 1nm |
| Average Output Power | 0~5dBm |
| Extinction Ratio | 3.5dB |
| Side Mode Suppression Ratio | 30dB |
| Average Power of OFF Transmitter | -30dBm |
| Optical Return Loss Tolerance | 12dB |
| Sensitivity | -15dBm |
| Receiver Overload | 0.5dBm |
| Receiver Reflectance | -12dB |
| Los Assert | -30dBm |
| Los De-assert | -17dBm |
| Los Hysteresis | 0.5~4dB |
