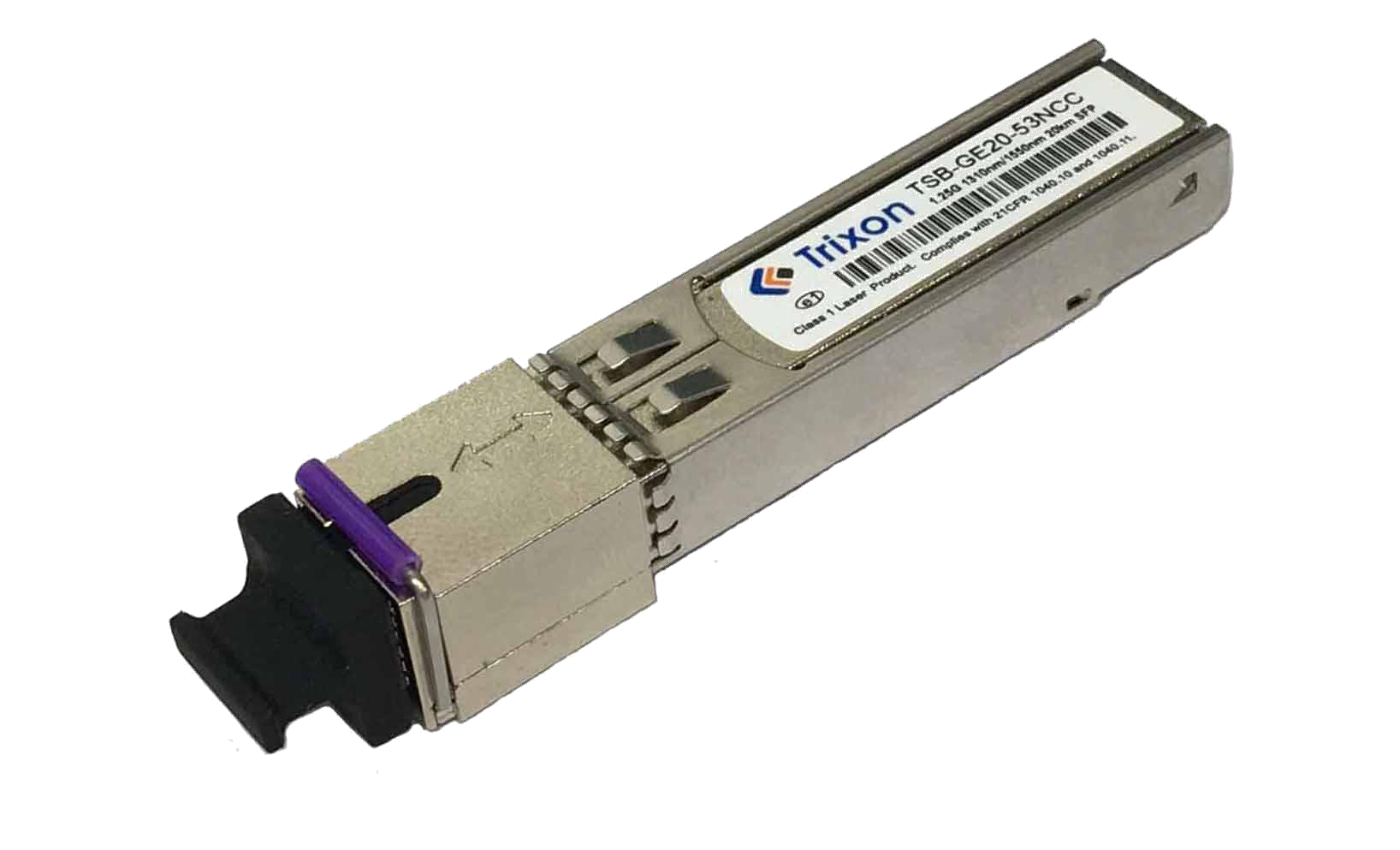

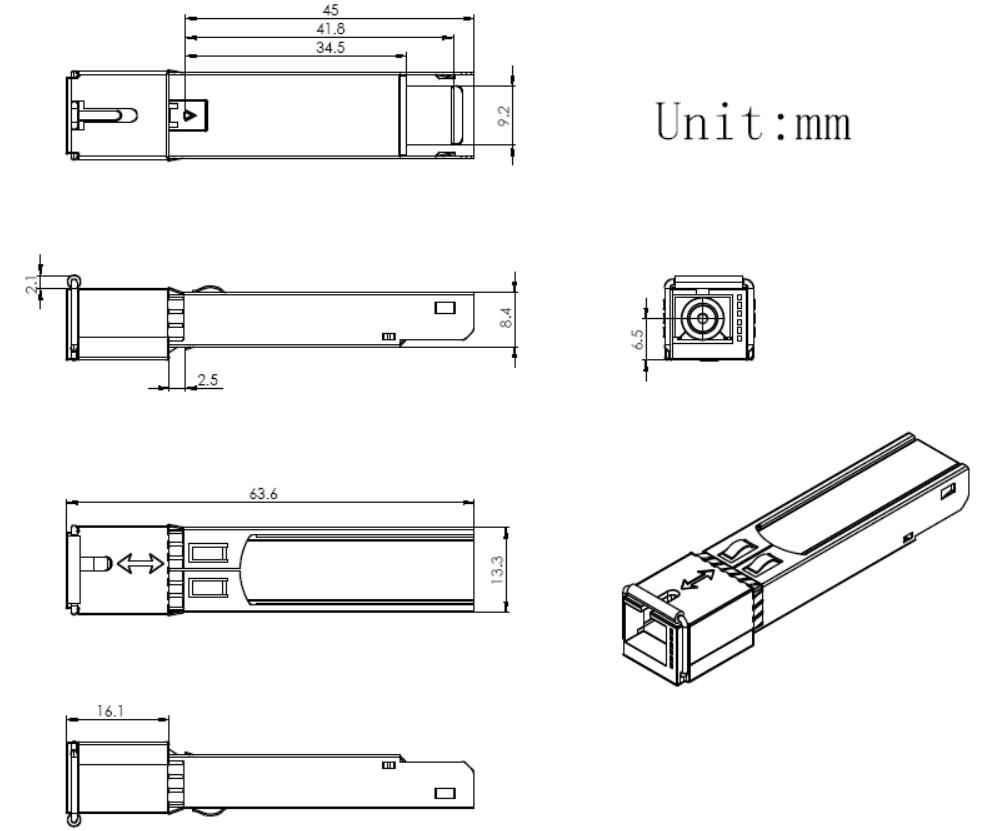

GBE Bidirectional SFP (SC Connector) Transceiver With Digital Diagnostic Function
The GBE Bidirectional SFP optical transceivers are high-performance, cost-effective modules designed for Gigabit Ethernet compliant connections at 1.25Gbps across short, intermediate, and long reach links. They offer design options including DDMI, standard, or industrial temperature ranges.
Save to Favorites
Overview
Specifications

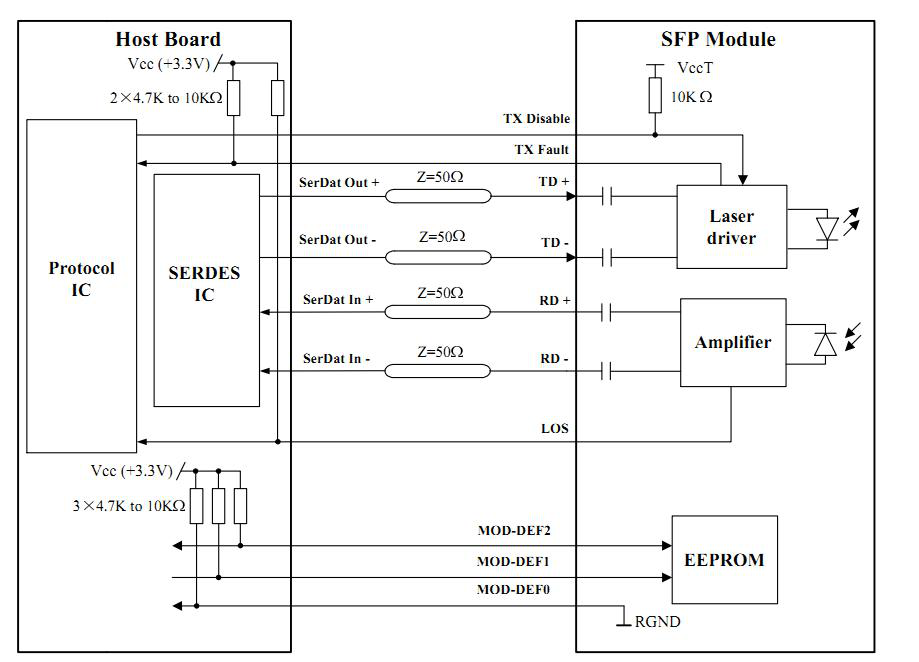

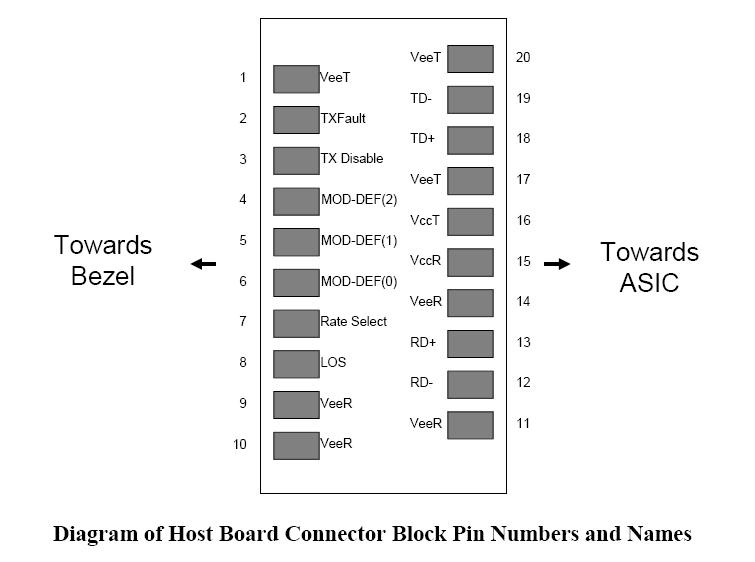

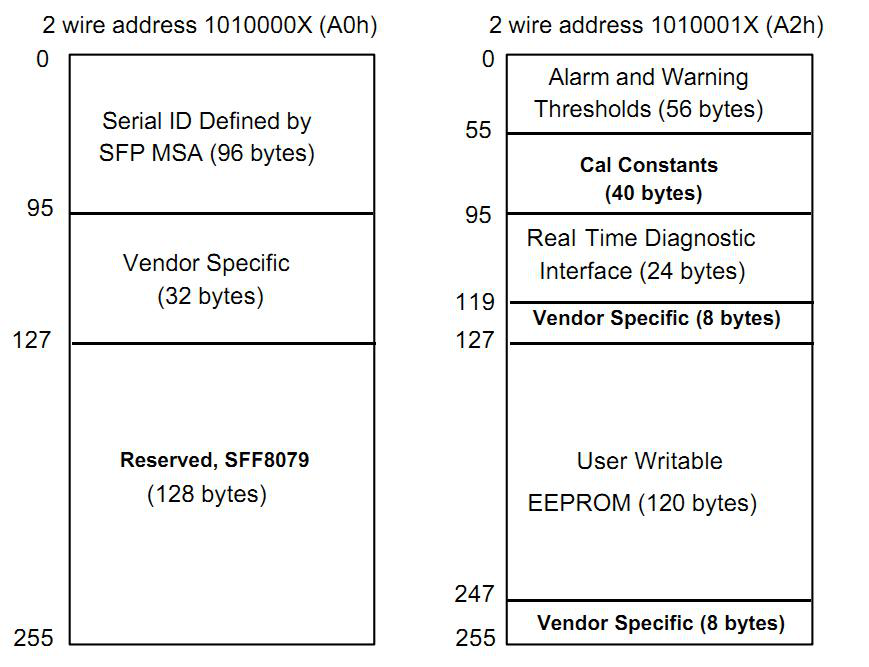

| Parameter | Value |
|---|---|
| Data Rate | 1.25Gbps |
| Laser Type | 1310nm-FP, 1550nm-FP, 1310nm-DFB, 1550nm-DFB |
| Fiber Type | SMF |
| Distance | 3km, 10km, 20km |
| Optical Interface | SC |
| Operating Case Temperature | -5℃~+75℃ (Standard), -40℃~+85℃ (Industrial) |
| Power Supply Voltage | 3.14V~3.47V |
| Supply Current | 300mA |
| Centre Wavelength | 1280nm~1340nm, 1520nm~1580nm |
| Spectral Width | 4nm (FP-LD), 1nm (DFB-LD) |
| Average Output Power | -9.5dBm~-3dBm (FP-LD), -8dBm~-3dBm (DFB-LD) |
| Extinction Ratio | 9dB |
| Average Power of OFF | -45dBm |
| Sensitivity | -20dBm (3km), -22dBm (10km, 20km) |
| Receiver Overload | -3dBm |
| Optical Return Loss | 12dB |
| Los Assert | -35dBm |
| Los De-assert | -21dBm |
| Los Hysteresis | 0.5~4dB |
| CML Inputs (Differential) | 500mVp~2400mVp |
| Input Impedance (Differential) | 100ohm |
| Tx_DISABLE Input Voltage - High | 2V~Vcc |
| Tx_FAULT Output Voltage - High | 2V~Vcc |
| Rx_LOS Output Voltage - High | 2V |
| MOD_DEF (0:2) Voltage | 2.5V (High), 0V~0.5V (Low) |
