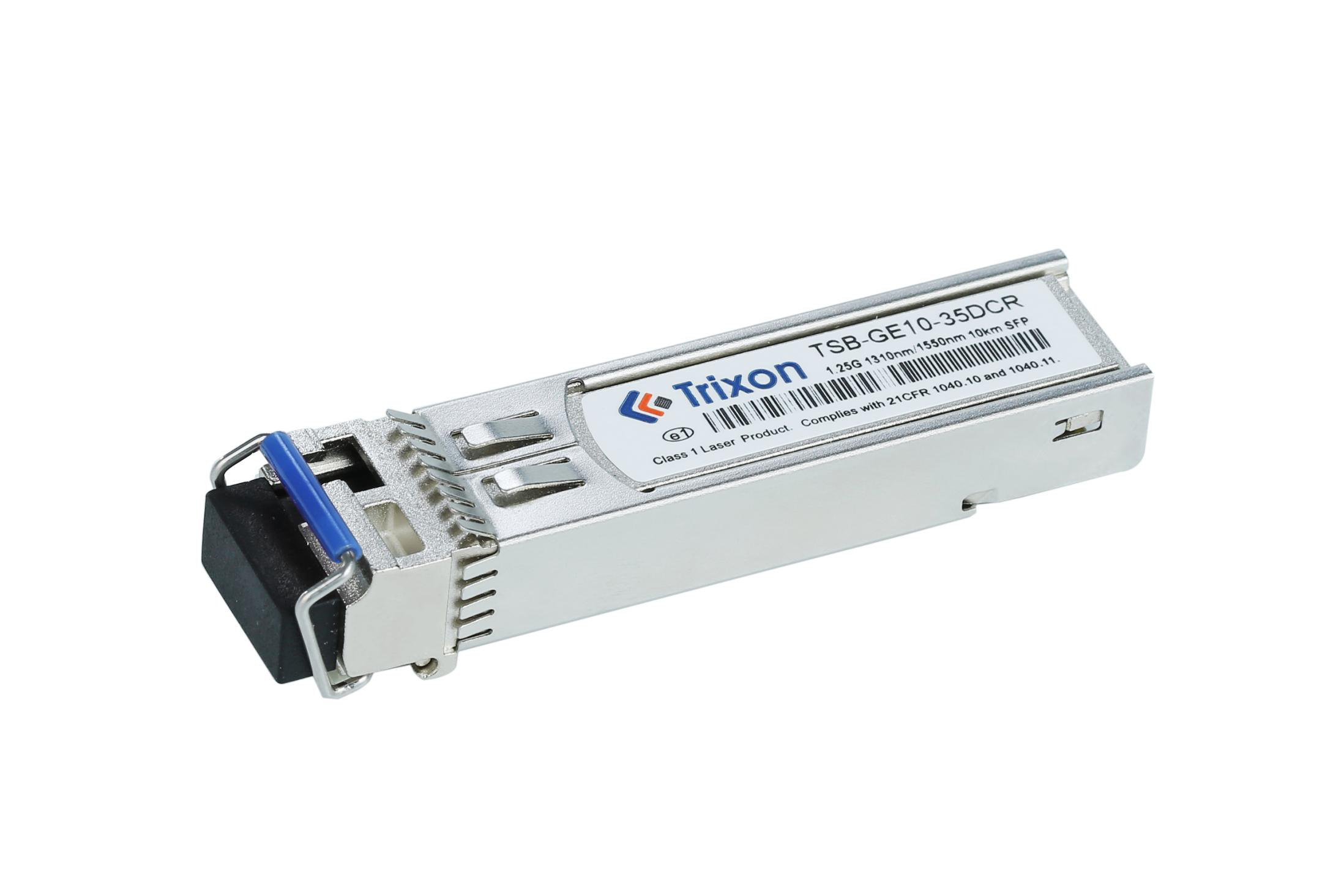

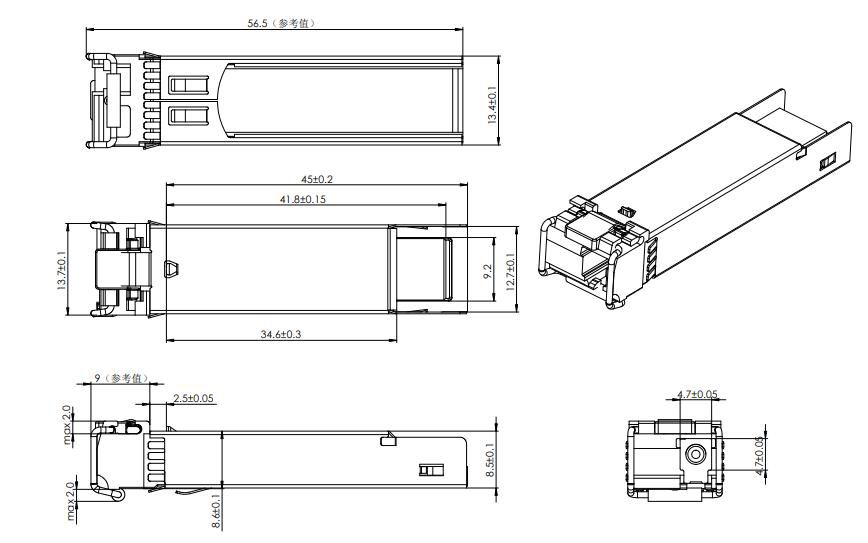

GBE Bidirectional SFP Transceiver With Digital Diagnostic Function
The GBE Bidirectional SFP optical transceivers are high-performance, cost-effective modules designed to provide Gigabit Ethernet compliant connections for 1.25Gbps at short, intermediate, and long reach links. They offer optional DDMI standard or industrial temperature ranges and are qualified in accordance with GR-468-CORE.
Save to Favorites
Overview
Specifications

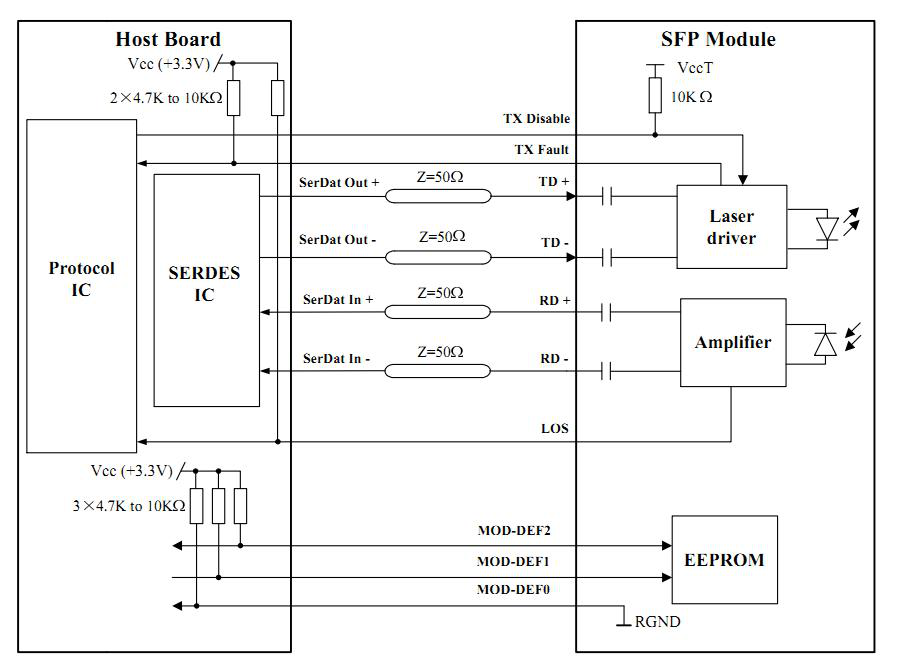

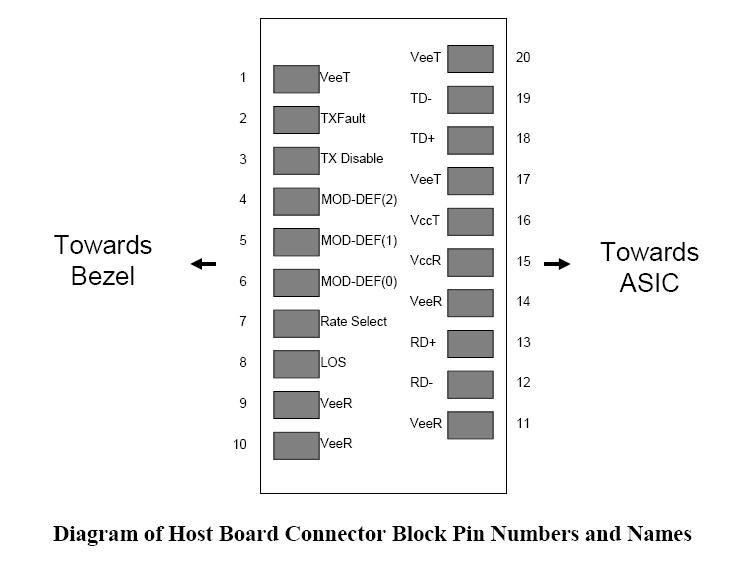

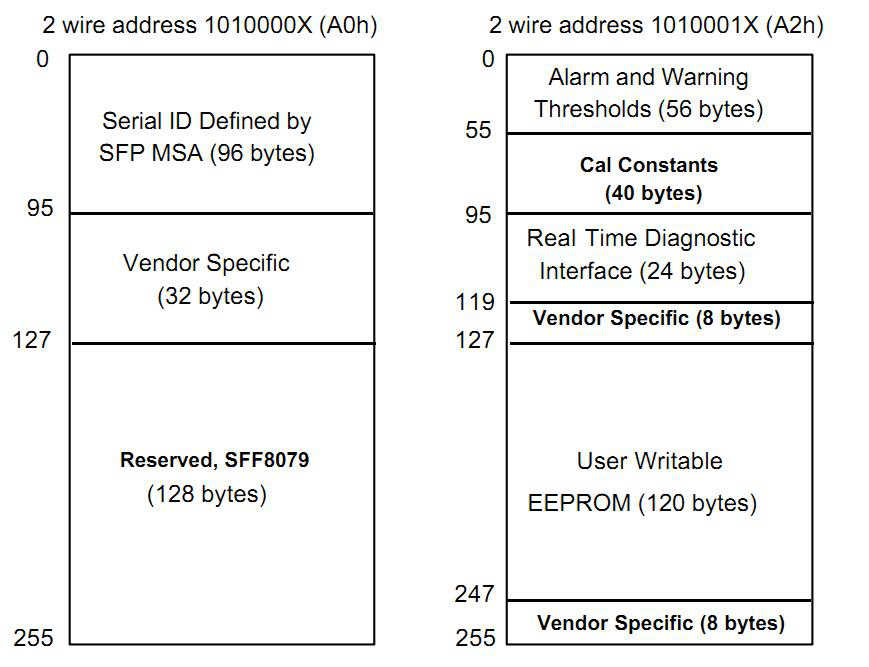

| Parameter | Value |
|---|---|
| Operating Data Rate | 1.25Gbps |
| Distance | 10km |
| Power Supply Voltage | 3.3V |
| Fiber Type | SMF |
| Optical Interface | LC |
| Operating Case Temperature | 0°C~+75°C (Standard), -40°C~+85°C (Industrial) |
| Laser Type | 1310nm-FP, 1550nm-DFB |
| Average Output Power | -9~-3dBm |
| Centre Wavelength | 1310nmTX/1550nmRX, 1550nmTX/1310nmRX |
| Spectral Width | 4nm (FP-LD), 1nm (DFB-LD) |
| Extinction Ratio | 8.2dB |
| Sensitivity | -22dBm |
| Receiver Overload | -3dBm |
| Optical Return Loss | 12dB |
| Supply Current | 300mA |
| CML Inputs (Differential) | 500~2400mVpp |
| Input Impedance (Differential) | 100Ω |
| Tx_DISABLE Input Voltage - High | 2~Vcc |
| Tx_DISABLE Input Voltage - Low | 0~0.8V |
| Tx_FAULT Output Voltage - High | 2~Vcc |
| Tx_FAULT Output Voltage - Low | 0~0.8V |
| CML Outputs (Differential) | 700~1600mVpp |
| Output Impedance (Differential) | 100Ω |
| Rx_LOS Output Voltage - High | 2V |
| Rx_LOS Output Voltage - Low | 0~0.5V |
| MOD_DEF (0:2) Voltage High | 2.5V |
| MOD_DEF (0:2) Voltage Low | 0~0.5V |
| Storage Temperature | -40°C~+85°C |
| Operating Humidity | 5~95% |
