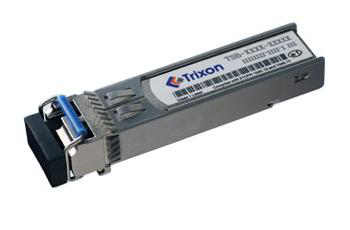

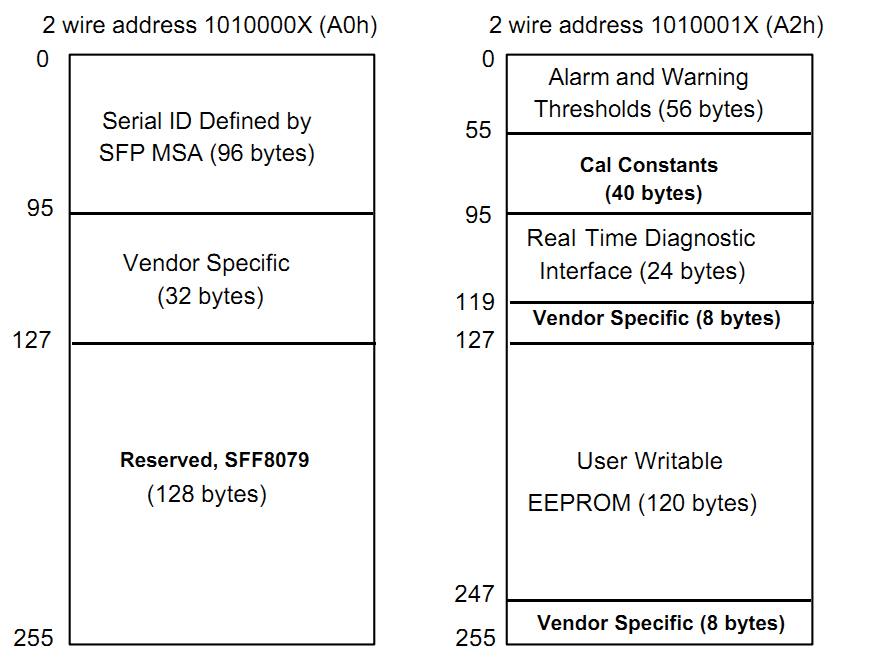

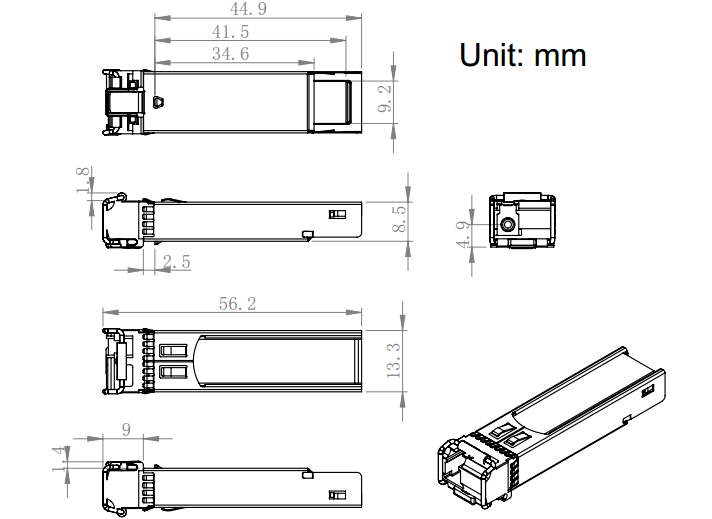

GBE Bidirectional SFP Transceiver With Digital Diagnostic Function
The GBE Bidirectional SFP optical transceivers are high-performance, cost-effective modules designed for Gigabit Ethernet compliant connections at short, intermediate, and long reach links. They offer optional DDMI, standard or industrial temperature ranges, and are qualified in accordance with GR-468-CORE.
Save to Favorites
Overview
Specifications

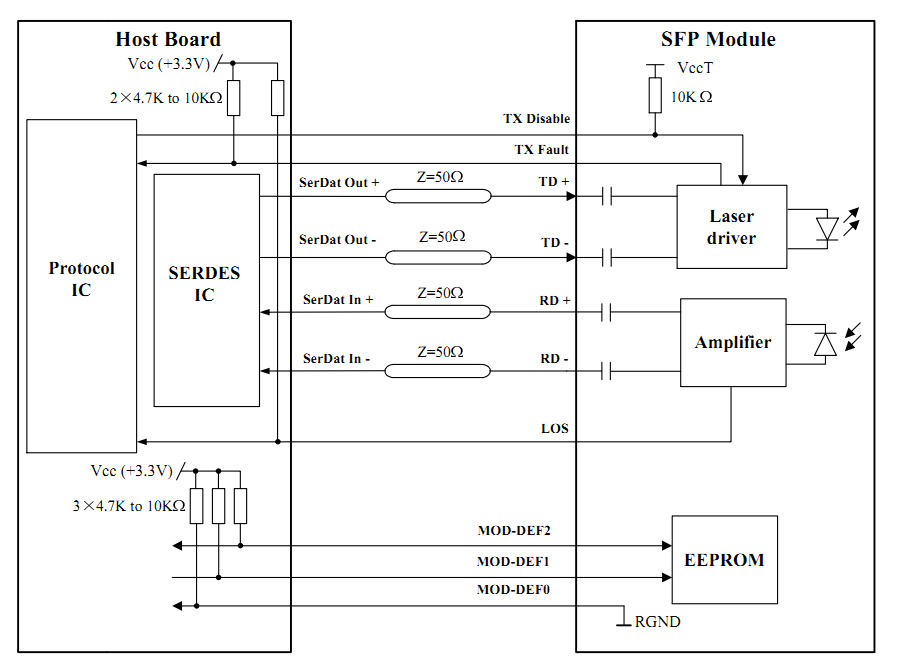

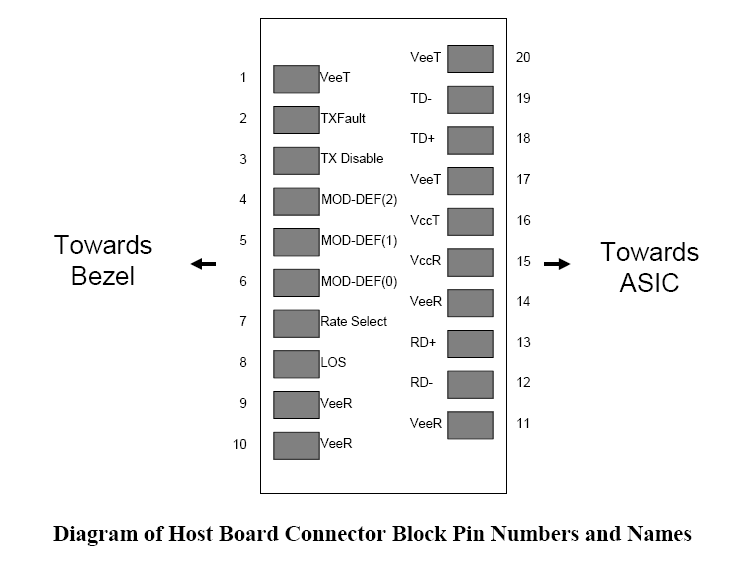

| Parameter | Value |
|---|---|
| Operating Data Rate | 1.25Gbps |
| Distance | 10km~80km |
| Single Power Supply Voltage | 3.3V |
| TTL Logic Interface | Supported |
| Optical Interface | LC |
| Operating Case Temperature Standard | -5°C~+75°C |
| Operating Case Temperature Industrial | -40°C~+85°C |
| Laser Type | FP/DFB |
| Fiber Type | SMF |
| Spectral Width | 1nm/4nm |
| Centre Wavelength | 1310nm/1550nm/1490nm |
| Average Output Power | -9dBm~-3dBm/-5dBm~0dBm/0dBm~5dBm |
| Extinction Ratio | 10dB |
| Sensitivity | -22dBm/-23dBm/-24dBm |
| Receiver Overload | -3dBm |
| Optical Return Loss | 12dB |
| Los Assert | -35dBm |
| Los De-assert | -25dBm |
| LOS Hysteresis | 0.5dB~4dB |
| Power Supply Voltage | 3.14V~3.47V |
| Supply Current | 300mA |
| CML Inputs (Differential) | 500mVp~2400mVp |
| Input Impedance (Differential) | 100Ω |
| Tx_DISABLE Input Voltage - High | 2V~Vcc |
| Tx_FAULT Output Voltage - High | 2V~Vcc |
| Rx_LOS Output Voltage - High | 2V |
| MOD_DEF (0:2) Voltage | 2.5V~0.5V |
