GPON OLT CLASS B+/C+/C++/C+++ Transceiver

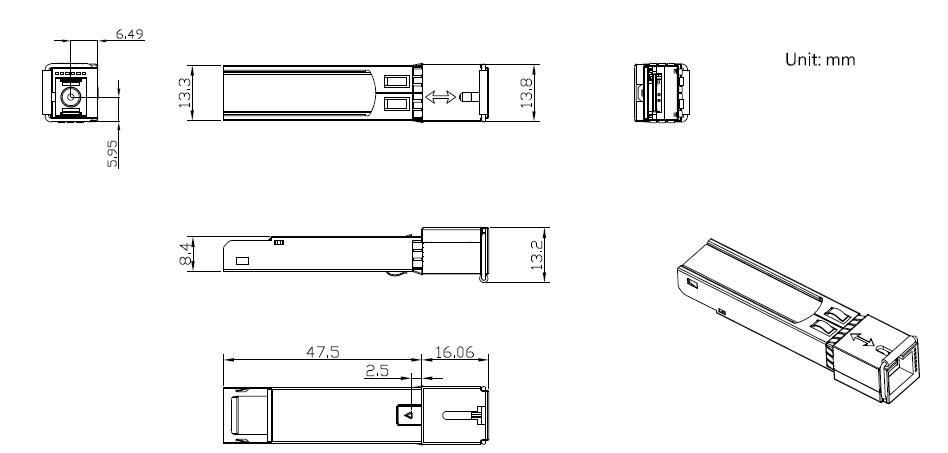

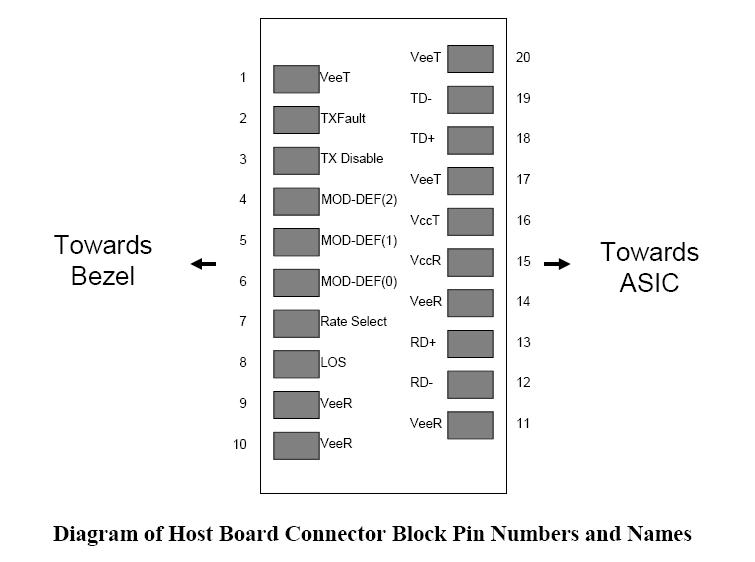

The GPON OLT transceiver is a small form factor pluggable module designed for serial optical data communications such as ITU-T G.984. It features a 20-pin SFP connector for hot plug capability and operates on single-mode fiber at a nominal wavelength of 1490nm. The transmitter section uses a 1490nm DFB laser and complies with International Safety Standard IEC-60825.
Save to Favorites
Overview
Specifications

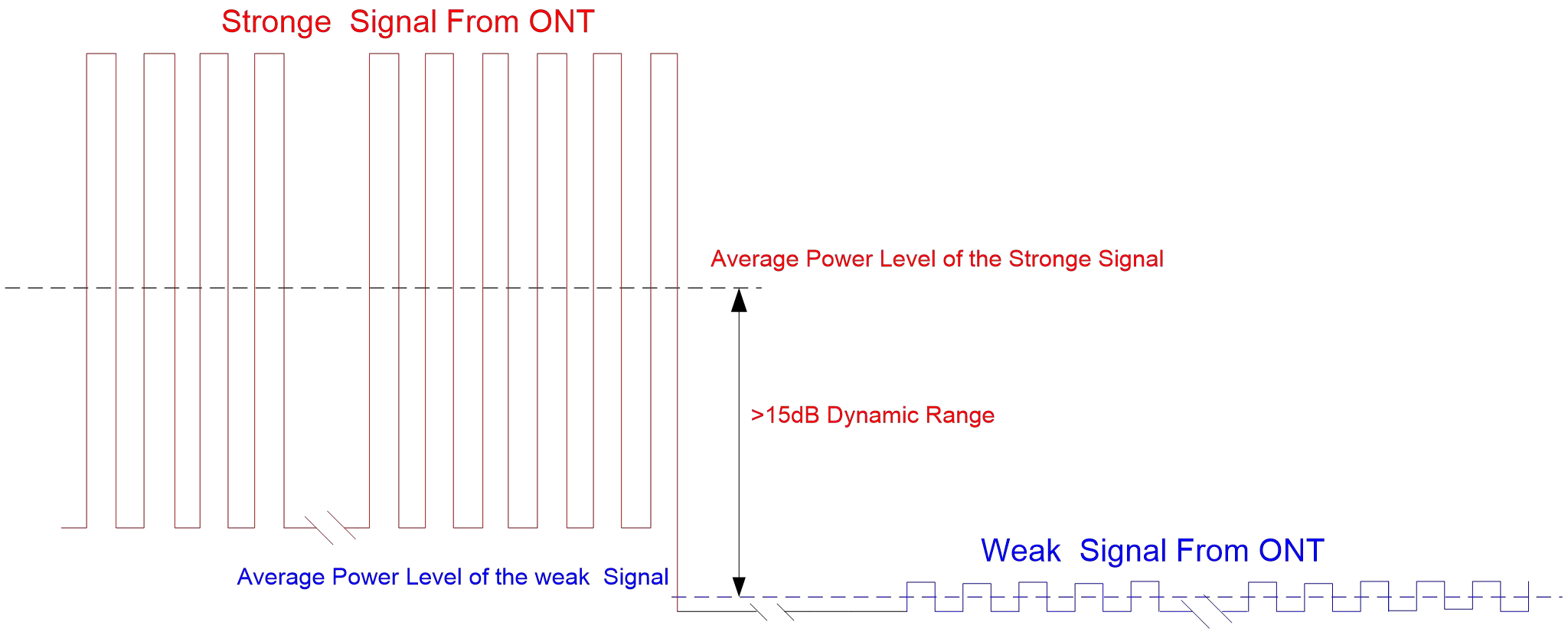

| Parameter | Value |
|---|---|
| Storage Temperature | -40°C to 85°C |
| Supply Voltage | 0V to 4V |
| Operating Relative Humidity | 5% to 95% |
| Operating Case Temperature | -5°C to 70°C |
| Operating Temperature | -40°C to 85°C |
| Power Supply Voltage | 3.13V to 3.47V |
| Data Rate | TX 2.488Gbps, RX 1.244Gbps |
| LVPECL Inputs Voltage (Differential) | 200mVpp to 1600mVpp |
| Input Impedance (Differential) | 90Ω to 110Ω |
| Tx_DISABLE Input Voltage - High | 2.0V to Vcc |
| Tx_DISABLE Input Voltage - Low | 0V to 0.8V |
| Tx_FAULT Output Voltage - High | 2.4V to Vcc |
| Tx_FAULT Output Voltage - Low | 0V to 0.4V |
| LVPECL Outputs Voltage (Differential) | 400mVpp to 1600mVpp |
| Output Impedance (Differential) | 90Ω to 110Ω |
| Signal Detect Voltage - High | 2.4V to Vcc |
| Signal Detect Voltage - Low | 0V to 0.4V |
| Reset Width | 16Bits |
| Reset-Low | 0V to 0.4V |
| Reset-High | 2.4V to Vcc |
| RSSI Trigger-High | 2.0V to Vcc |
| RSSI Trigger-Low | 0V to 0.8V |
| TX Disable Assert Time | 10us |
| TX Disable Negate Time | 1ms |
| Time to initialize, include reset of TX_FAULT | 300ms |
| TX_FAULT from fault to assertion | 100us |
| Signal Detect Assert Time | 100ns |
| Signal Detect De-Assert Time | 12.8ns |
| Guard Time | 25.6ns |
| Reset Pulse Width | 12.8ns |
| Reset Delay | 12.8ns |
| RSSI Trigger Delay | 25ns |
| RSSI Trigger Pulse Width | 500ns |
| Receiver Preamble Time | 140ns |
| I2C Access Prohibited Time | 100us |
| 9um Core Diameter SMF | 20Km |
| Centre Wavelength | 1480nm to 1500nm |
| Spectral Width (-20dB) | 1nm |
| Average Output Power | +1.5dBm to +5dBm |
| Extinction Ratio | 8.2dB |
| Average Power of OFF Transmitter | -39dBm |
| Transmitter Dispersion Penalty | 1dB |
| Output Optical Eye | Compliant with ITU-T G.984.2 |
| Receiver Centre Wavelength | 1290nm to 1330nm |
| Sensitivity | -28dBm |
| Receiver Overload | -8dBm |
| Optical Return Loss | -20dB |
| Los De-assert | -32dBm |
| Los Assert | -45dBm |
| Los Hysteresis | 0.5dB |
