High-Precision Optical Measurement System
This advanced optical measurement system is designed for high-precision analysis and testing in industrial and scientific applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Measurement Accuracy | ±0.001mm |
| Measurement Range | 0-500mm |
| Data Processing Speed | 1000 samples/second |
| Operating Temperature | 10°C-40°C |
| Interface Type | USB |
| Interface Type | Ethernet |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
FTM Thin-Film Thickness Spectral Measurement System (FTM-3810)
Optical Inspection
Gzbiaoqi
Wavelength Range: 380~1000 nm Thickness range: 15 nm~70 um Detector: Linear array CCD
The FTM Thin-Film Thickness Spectral Measurement System uses the interference phenomenon of light reflected from the film surface and the substrate material to quickly and non-destructively measure film thickness. The film thickness measurement range is 1nm-1mm. The materials to be measured mainly include PET, oxides, nitrides, and protective coating layers, etc. Typically, the substrate materials of these coated films include silicon wafers or glass, etc. It can also measure the thickness of copper foil, and is widely used in semiconductors and industrial production.
-
FTM Thin-Film Thickness Spectral Measurement System (FTM-2211)
Optical Inspection
Gzbiaoqi
Wavelength Range: 220~1100 nm Thickness range: 1 nm~100 um Detector: Area-array CCD
The FTM Thin-Film Thickness Spectral Measurement System uses the interference phenomenon of light reflected from the film surface and the substrate material to quickly and non-destructively measure film thickness. The film thickness measurement range is 1nm-1mm. The materials to be measured mainly include PET, oxides, nitrides, and protective coating layers, etc. Typically, the substrate materials of these coated films include silicon wafers or glass, etc. It can also measure the thickness of copper foil, and is widely used in semiconductors and industrial production.
-
Fluorescence immunoassay detection
Optical Inspection
Gousoptics
-

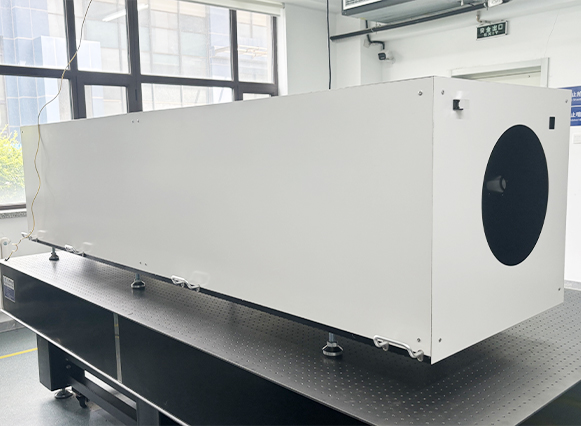

Off-Axis Reflective Collimator
Optical Inspection
Jljczz
-

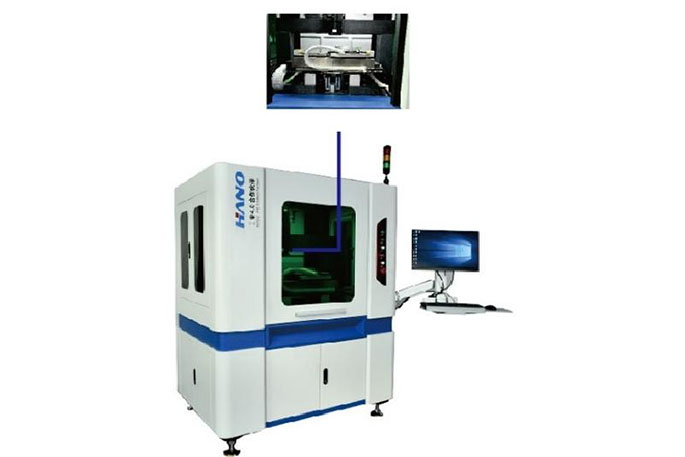

EFEM Wafer Inspection Platform
Optical Inspection
Hanocn
