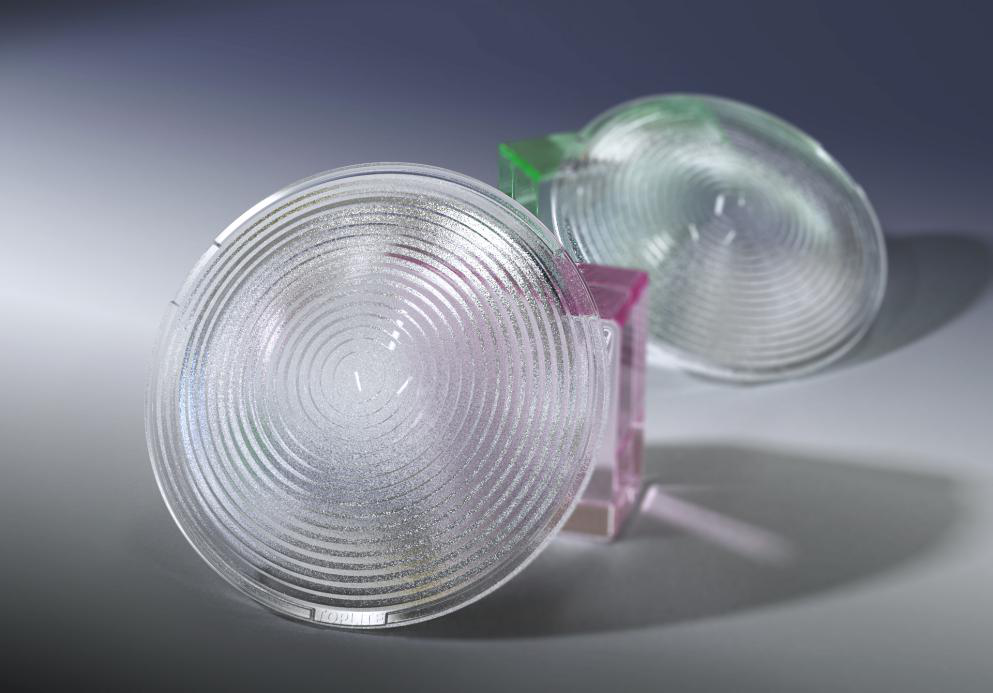

Glass Fresnel Lens
Glass Fresnel lenses are widely used in professional video and stage lighting applications, offering high light-gathering efficiency, effectiveness, and uniformity. They are compatible with COB and white LED modules.
Save to Favorites
Overview
Specifications

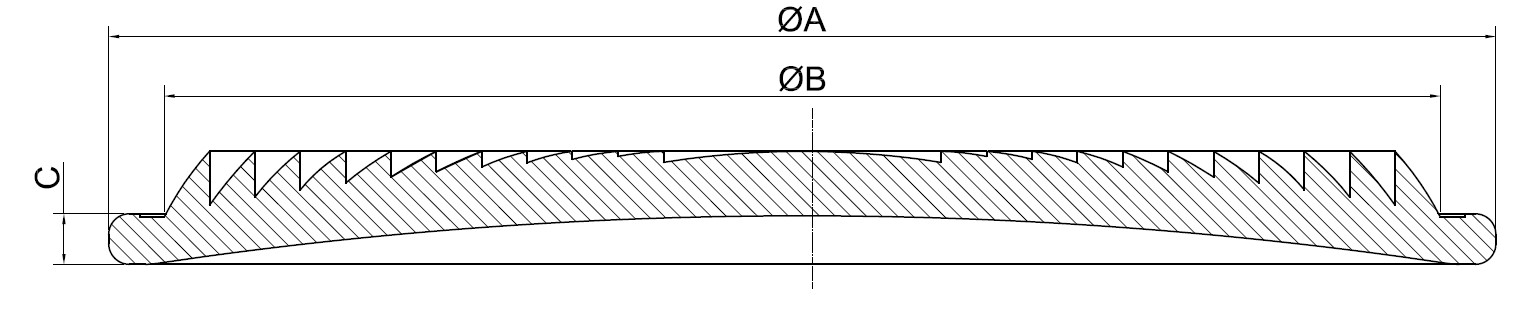

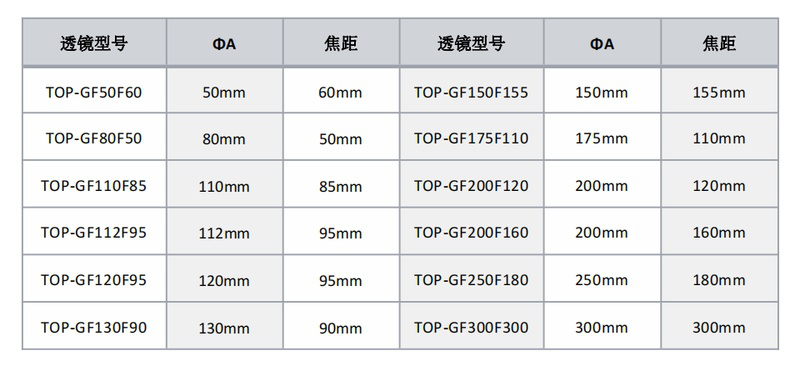

| Parameter | Value |
|---|---|
| Lens Model TOP-GF50F60 | ΦA: 50mm, Focal Length: 60mm |
| Lens Model TOP-GF80F50 | ΦA: 80mm, Focal Length: 50mm |
| Lens Model TOP-GF110F85 | ΦA: 110mm, Focal Length: 85mm |
| Lens Model TOP-GF112F95 | ΦA: 112mm, Focal Length: 95mm |
| Lens Model TOP-GF120F95 | ΦA: 120mm, Focal Length: 95mm |
| Lens Model TOP-GF130F90 | ΦA: 130mm, Focal Length: 90mm |
| Lens Model TOP-GF150F155 | ΦA: 150mm, Focal Length: 155mm |
| Lens Model TOP-GF150F115 | ΦA: 150mm, Focal Length: 115mm |
| Lens Model TOP-GF175F110 | ΦA: 175mm, Focal Length: 110mm |
| Lens Model TOP-GF175F160 | ΦA: 175mm, Focal Length: 160mm |
| Lens Model TOP-GF200F120 | ΦA: 200mm, Focal Length: 120mm |
| Lens Model TOP-GF200F160 | ΦA: 200mm, Focal Length: 160mm |
| Lens Model TOP-GF250F180 | ΦA: 250mm, Focal Length: 180mm |
| Lens Model TOP-GF300F300 | ΦA: 300mm, Focal Length: 300mm |
| Lens Model TOP-GF350F210 | ΦA: 350mm, Focal Length: 210mm |
