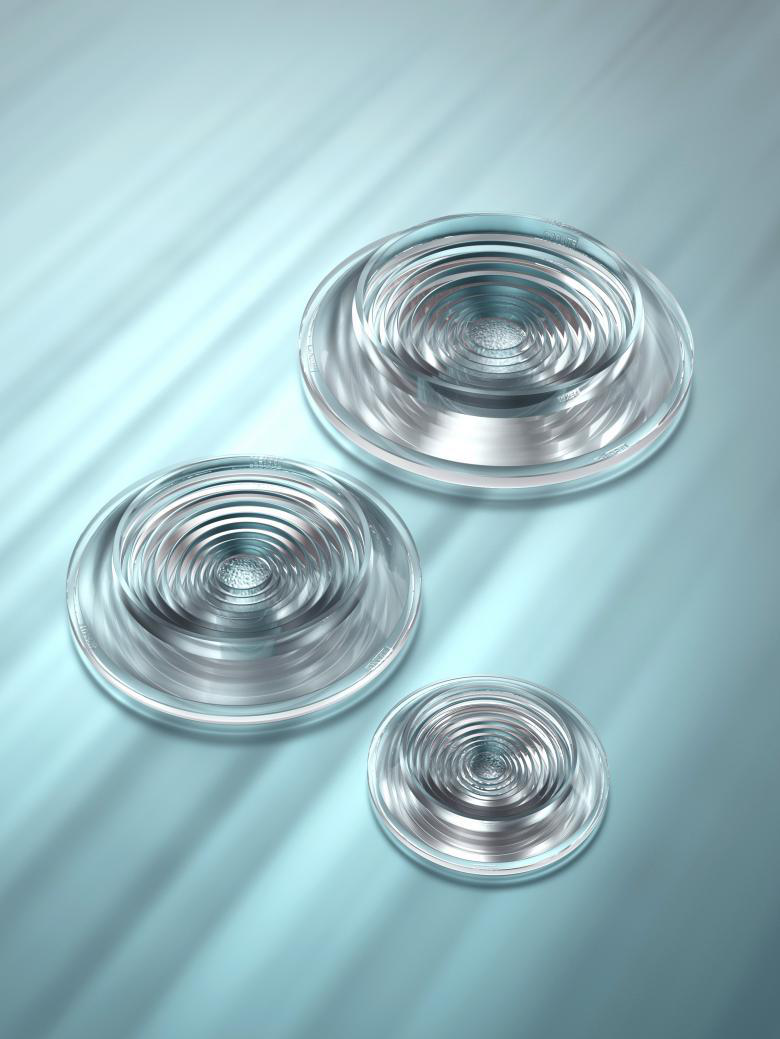

KULLEN GLASS Series Total Reflection Mixed Fresnel Lens
KULLEN GLASS series lenses are total reflection mixed Fresnel lenses with ultra-short focal length, high light transmission, high efficiency, uniform light output, and excellent light spot quality. They support dynamic light sources such as LED, laser light sources, and UV light sources, making them suitable for outdoor lighting and environmental applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Model | KULLEN-Glass45, KULLEN-Glass72, KULLEN-Glass90 |
| Diameter×Thickness(mm) KULLEN-Glass45 | Ø45×10 |
| Diameter×Thickness(mm) KULLEN-Glass72 | Ø72×16.3 |
| Diameter×Thickness(mm) KULLEN-Glass90 | Ø90×17.1 |
| Material | Glass |
| 50% Beam Angle (°) KULLEN-Glass45 | 14, 16.5, 4.9 |
| 50% Beam Angle (°) KULLEN-Glass72 | 6.1, 8.9, 6.8 |
| 50% Beam Angle (°) KULLEN-Glass90 | 7.6, 10.9 |
| 10% Beam Angle (°) KULLEN-Glass45 | 27.2, 34.4, 14.1 |
| 10% Beam Angle (°) KULLEN-Glass72 | 15.9, 23.5, 16.7 |
| 10% Beam Angle (°) KULLEN-Glass90 | 20.1, 25.8 |
